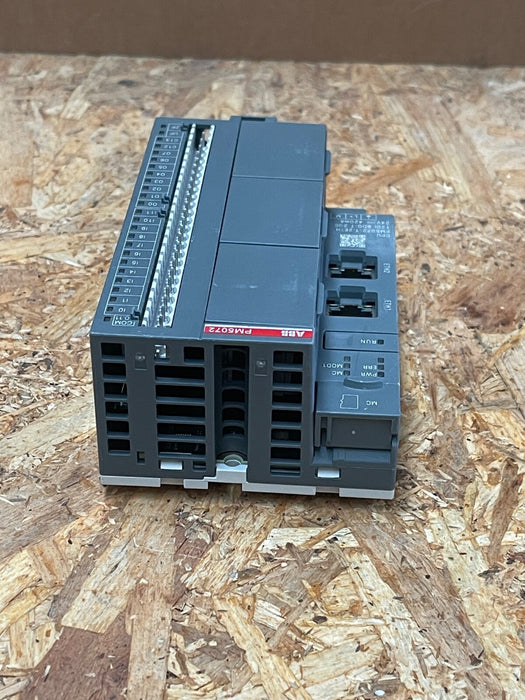

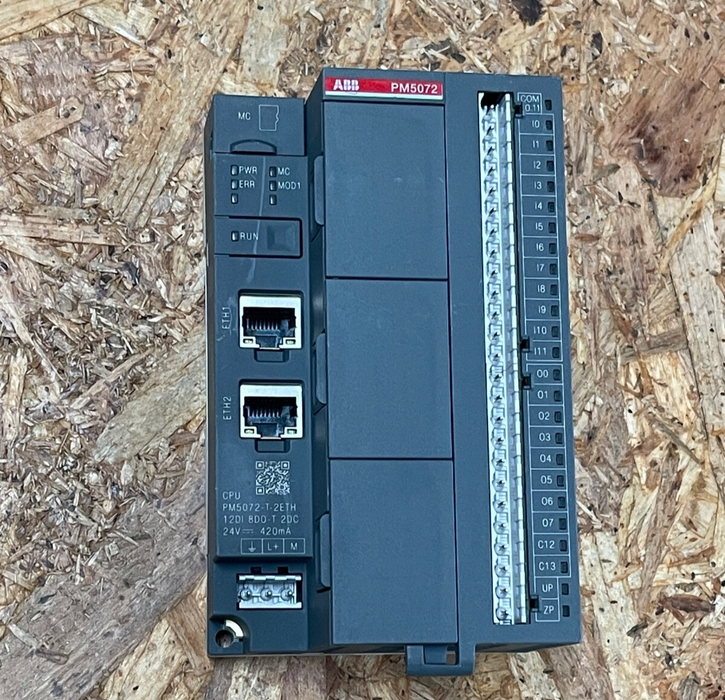

ABB – 1SAP124500R0173 (PM5072‑T‑2ETH) – AC500‑eCo Processor Module with Ethernet

Main Features

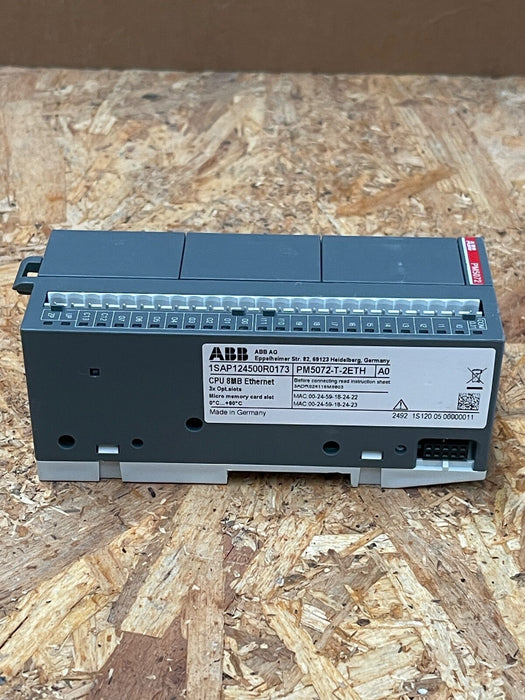

• Series & Designation: ABB AC500‑eCo family, module type PM5072‑T‑2ETH, part number 1SAP124500R0173

• CPU & Memory: 8 MB user program memory; fast cycle processing (approx. 0.02 ms)

• Digital I/O:

  • 12 digital inputs (24 V DC)

  • 8 digital transistor outputs (24 V DC, 0.5 A each)

  • 2 configurable I/Os or DC outputs

• Communication:

  • Dual Ethernet ports (for daisy-chain or network redundancy)

  • 3 expansion slots for communication or fieldbus modules

• Power Requirements: 20.4–28.8 V DC (nominal 24 V DC bus supply)

• Form Factor & Mounting:

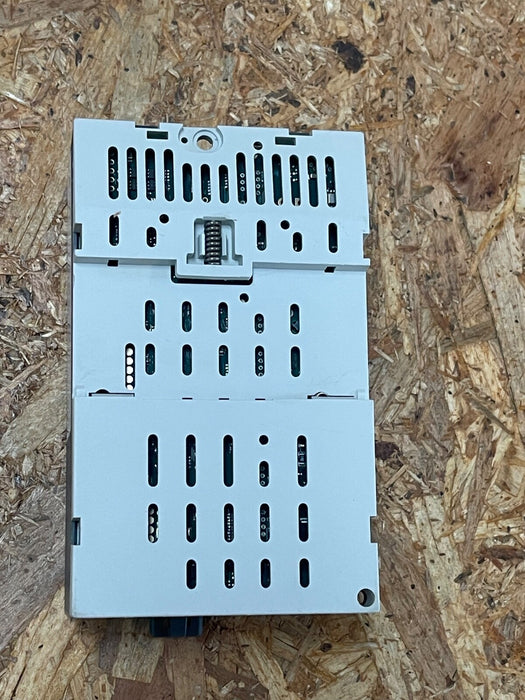

  • DIN‑rail housing (IP20)

  • Module dimensions: approx. 82 mm (W) × 74 mm (D) × 135 mm (H)

  • Weight: ~0.26 kg
