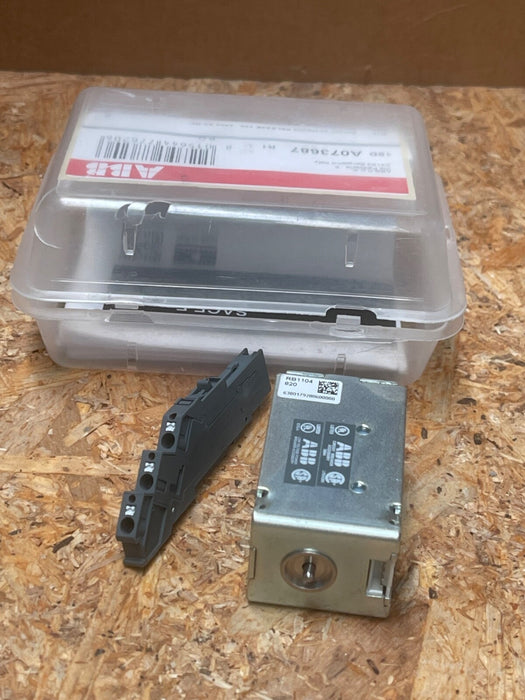

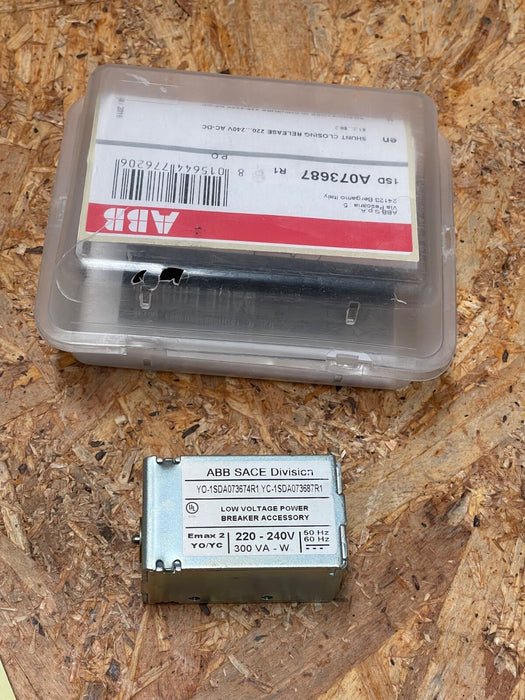

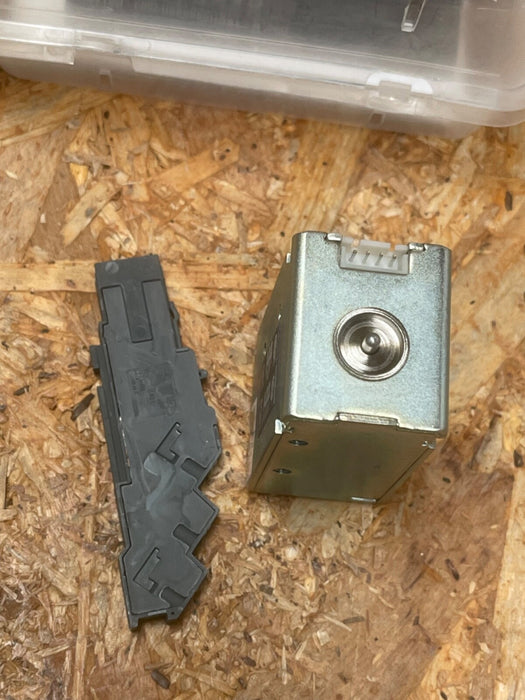

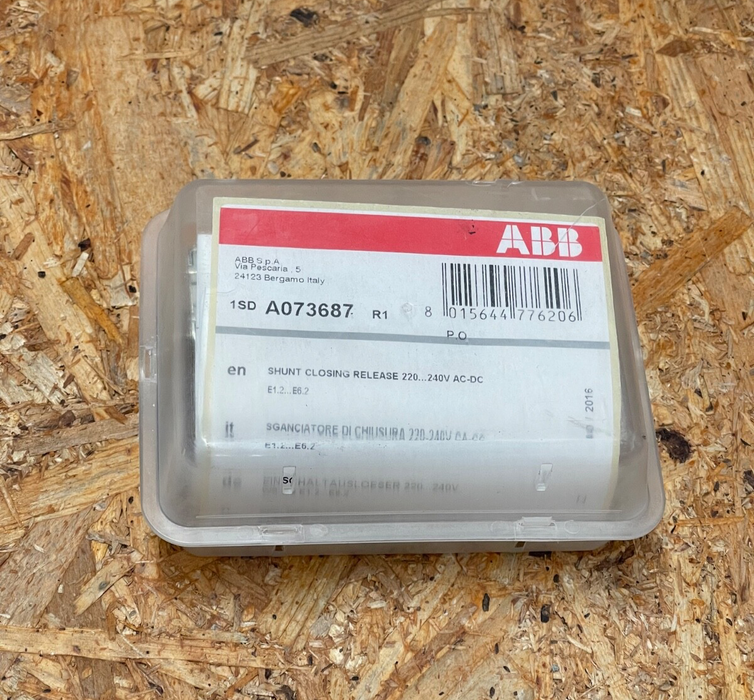

ABB – 1SDA073687R1 – YC E1.2..E6.2‑XT7M Shunt Closing Release 220‑240 V AC/DC

The ABB 1SDA073687R1 (YC E1.2..E6.2‑XT7M) is a shunt closing release accessory designed for ABB SACE Tmax XT and Emax 2 circuit breakers (frames E1.2 to E6.2, including XT7‑XT7M). It delivers a remote/automatic closing function by energizing the coil with 220–240 V AC/DC.

Key Features:

• Model: YC E1.2..E6.2‑XT7M (1SDA073687R1)

• Function: Shunt closing release coil

• Rated Voltage (Ur): 220–240 V AC/DC

• Current Type: AC/DC

• Compatible Breaker Frames: E1.2, E2.2, E4.2, E6.2 and XT7/XT7M

• Mounting Configuration: Loose (for configurable installation)

• Dimensions: 105 × 55 × 135 mm (W×H×D)

• Weight: Approx. 0.12 kg

• Compliance: IEC standards, RoHS (per EU Directive 2011/65/EU & Amendment 2015/863)

• EAN: 8015644776206; Customs Code: 85389099
