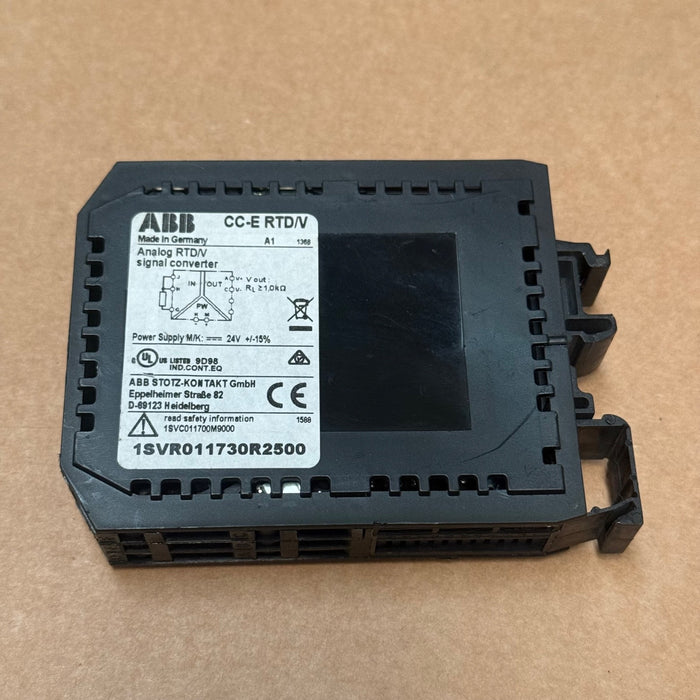

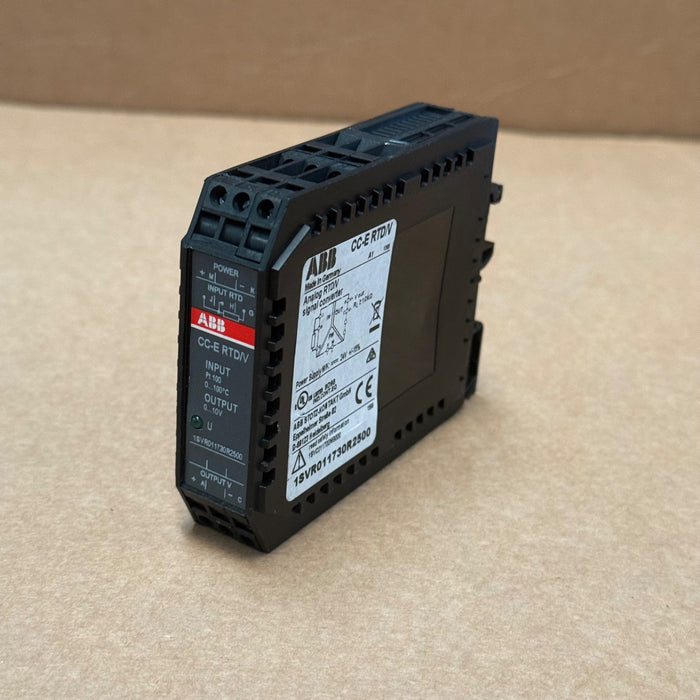

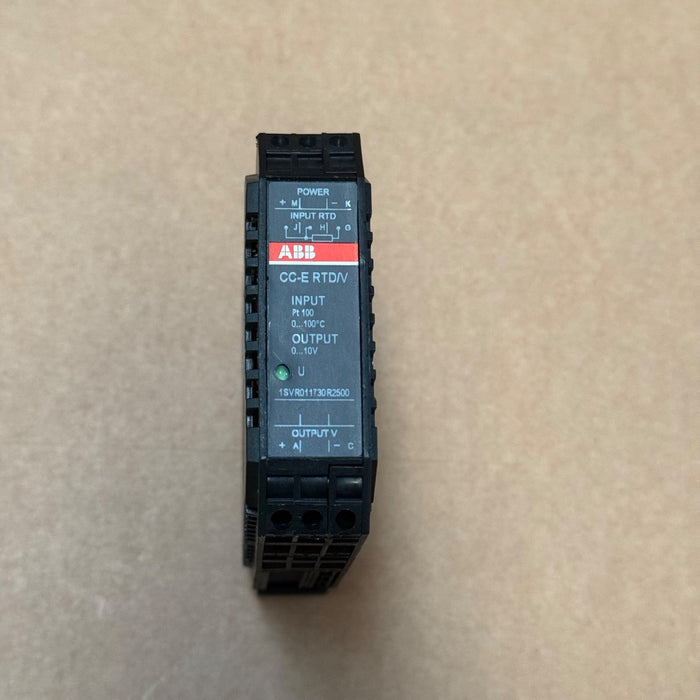

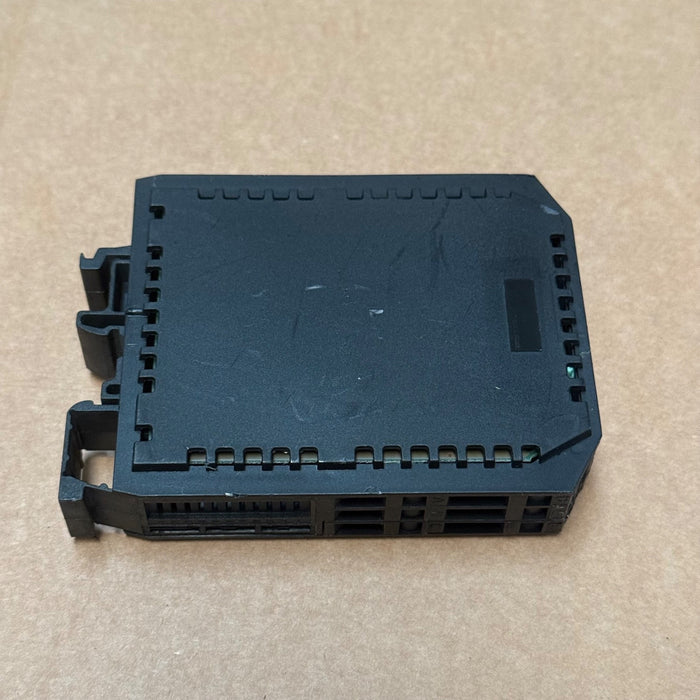

ABB – 1SVR011730R2500 (CC‑E RTD/V) – DIN‑Rail RTD Temperature‑to‑Voltage

The ABB 1SVR011730R2500 (CC‑E RTD/V) is a compact DIN‑rail mounted signal converter that transforms Pt100 RTD input into a 0–10 V analog output for industrial control systems. Powered by a 24 V DC supply, this converter offers precise temperature monitoring, galvanic isolation, and easy integration into analog control loops—ideal for use in control panels and automation equipment.

 Key Specifications

• Part Number: 1SVR011730R2500 (CC‑E RTD/V) – Pt100 to 0–10 V converter

• Input: Pt100 RTD, 0…100 °C (2‑ or 3‑wire)

• Output: 0–10 V analog voltage (≥1 kΩ load)

• Power Supply: 24 V DC ±15 %, ≤0.084 kg unit weight

• Isolation: 3‑way galvanic for input, output, and supply

• Environment: Operating 0 to +60 °C; IP20 rated housing

• Dimensions: ~22.5 × 75 × 107 mm; weight ≈ 0.084 kg

• Certifications: CE, cUL508; made in Germany
