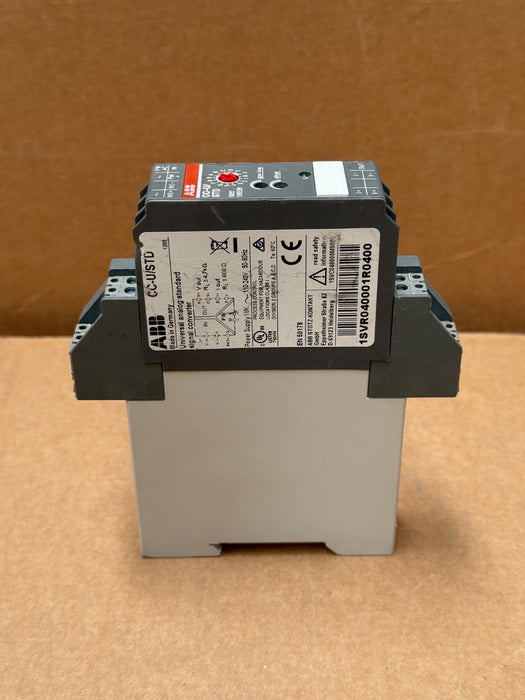

ABB – 1SVR040001R0400 CC‑U/STD – Universal Signal Converter, 110–240 VAC
The ABB CC‑U/STD (1SVR040001R0400) is a versatile DIN-rail analog signal converter featuring three-way isolation. It processes a wide variety of inputs—including 4–20 mA, thermocouples, and millivolt signals—into selectable DC voltage or current outputs. Configurable via DIP switches and front-panel adjustments, it’s designed for precision instrumentation and control systems.
Key Features:
• Model: CC‑U/STD (Part No. 1SVR040001R0400)
• Supply Voltage: 110–240 VAC (50/60 Hz) or 100–300 VDC ()
• Input Ranges: Multiple—e.g., 4–20 mA, 0–50 mV, 0–100 mV, etc. (28 total)
• Output Options: 0…±11 V or 0…±55 mA (41 selectable via DIP)
• Isolation: 3-way—supply/input/output channels

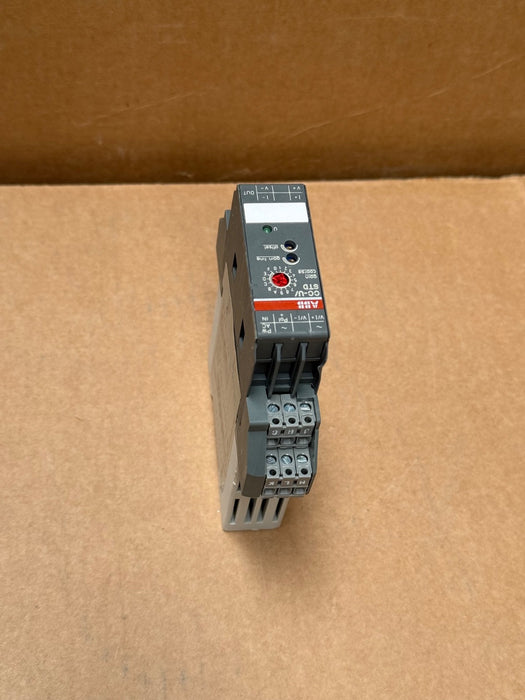

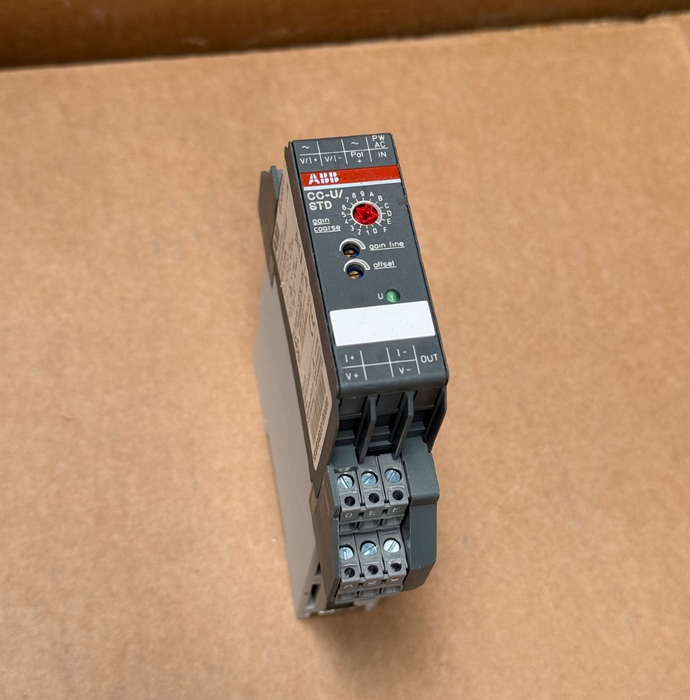

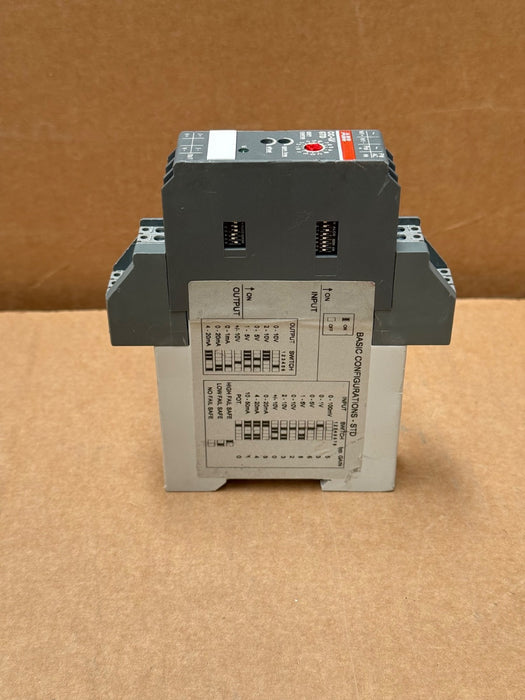

• Configuration: Side-access DIP switches; front-panel gain/offset potentiometers; supply LED indicator ()
• Certifications: UL 508/1604, IEC/EN 61000‑6‑2/4, RoHS compliant

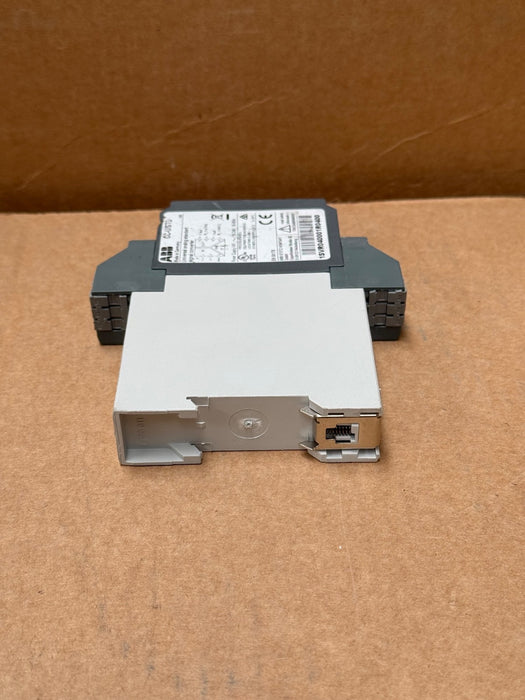

• Dimensions & Weight: 22.5 × 120 × 105 mm; ~0.126 kg
