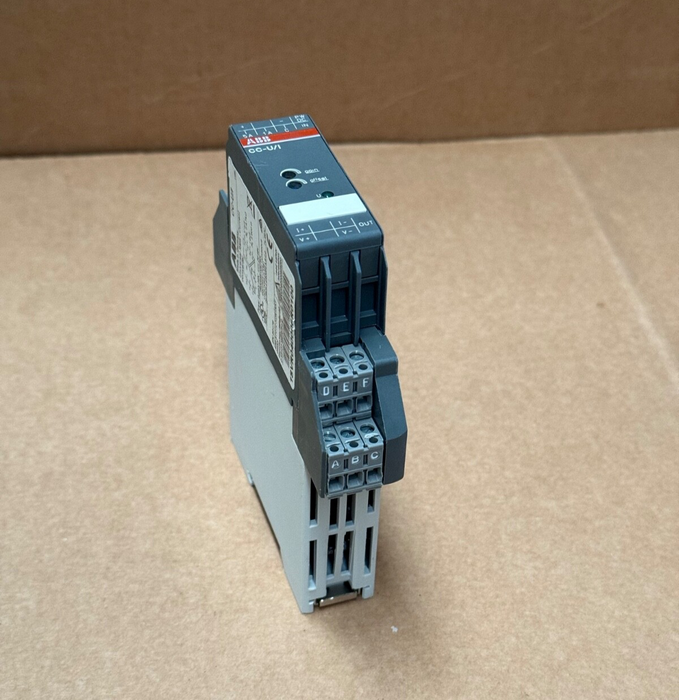

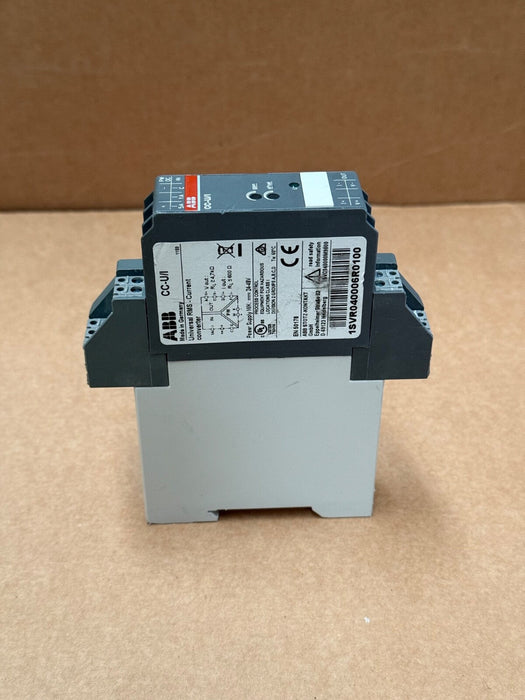

ABB – 1SVR040006R0100 CC‑U/I – Universal RMS Current Converter, 0–1/5A input

The ABB CC‑U/I (P/N 1SVR040006R0100) is a universal RMS current-to-analog signal converter designed for industrial control cabinets. It accepts 0–1 A or 0–5 A AC/DC input and transforms it into a selectable output between 0–±55 mA or 0–±11 V. Configurable via DIP switches with front-panel offset/gain adjustment, it’s perfect for integrating current measurements into PLCs and control systems.

 Key Specifications

• Model / P/N: CC‑U/I – 1SVR040006R0100

• Input: Selectable 0–1 A or 0–5 A RMS (0–600 Hz)

• Output Ranges: 0…±55 mA or 0…±11 V (configurable via DIP switches)

• Supply Voltage: 24–48 V DC or 24 VAC; also versions handle 110–240 VAC/100–300 VDC

• Isolation: 3-way electrical isolation between input/output/supply

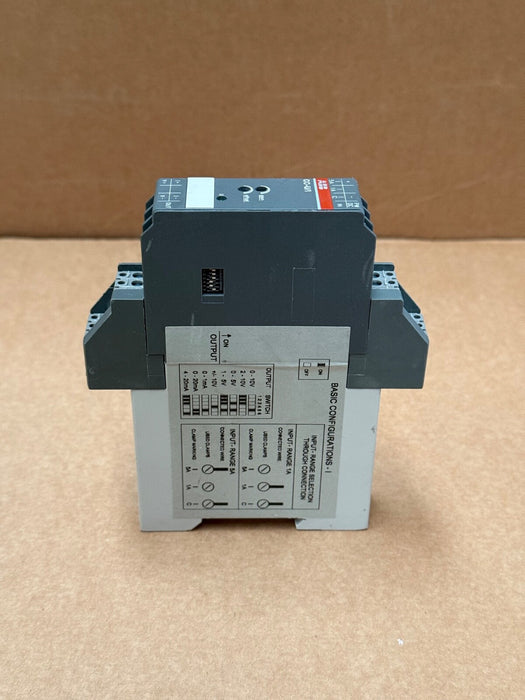

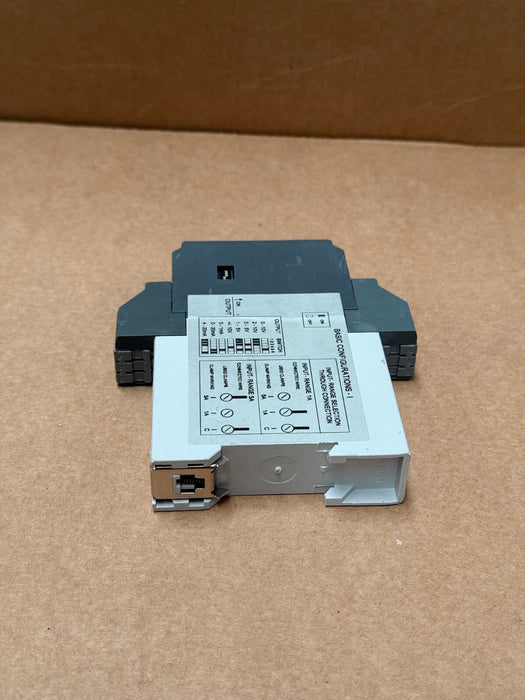

• Adjustments: Front-panel dip-switch configuration + gain/offset potentiometers

• Indicator: Green LED shows power-on status

• Mounting: 22.5 mm DIN-rail module, plug-in screw terminals, IP20, –20…+60 °C

• Dimensions & Weight: ~105 × 22.5 × 120 mm, ~128 g
