ABB - 1SVR430840R0600 CM-SRS.M1 - Current Monitoring Relay, 3–30 mA to 1 A

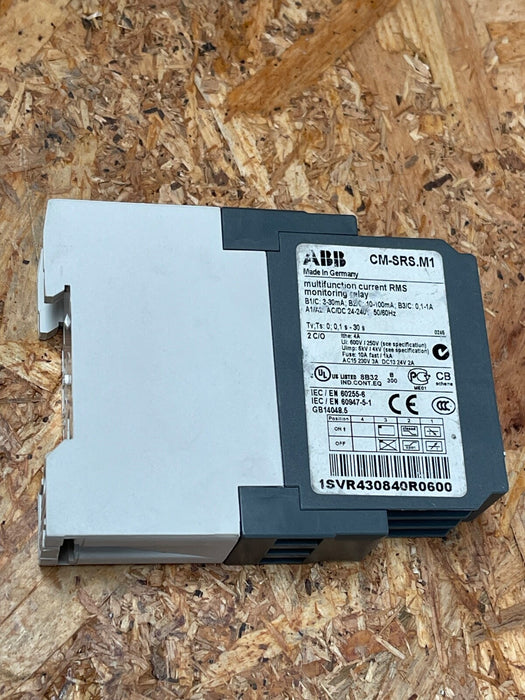

The ABB CM-SRS.M1 (1SVR430840R0600) is a multifunctional current monitoring relay designed for single-phase AC or DC applications. It offers three selectable measuring ranges—3–30 mA, 10–100 mA, and 0.1–1 A—allowing precise monitoring of overcurrent or undercurrent conditions. Equipped with two changeover (SPDT) contacts, the relay provides reliable switching capabilities. Adjustable start-up and tripping delays (0.1–30 s) and hysteresis (3–30%) enhance its adaptability to various applications. The device features a compact 22.5 mm housing with screw terminals and LED indicators for operational status.

Key Features:

• Model: CM-SRS.M1

• Part Number: 1SVR430840R0600

• Brand: ABB

• Function: Multifunctional current monitoring relay

• Supply Voltage: 24–240 V AC/DC (±10%)

• Measuring Ranges: 3–30 mA, 10–100 mA, 0.1–1 A

• Monitoring Function: Selectable overcurrent or undercurrent detection

• Contacts: 2 SPDT (changeover) contacts

• Adjustable Hysteresis: 3–30%

• Start-Up Delay (TS): 0.1–30 s

• Tripping Delay (TV): 0.1–30 s

• Mounting: DIN rail (35 mm)

• Housing Width: 22.5 mm

• Connection Type: Screw terminals

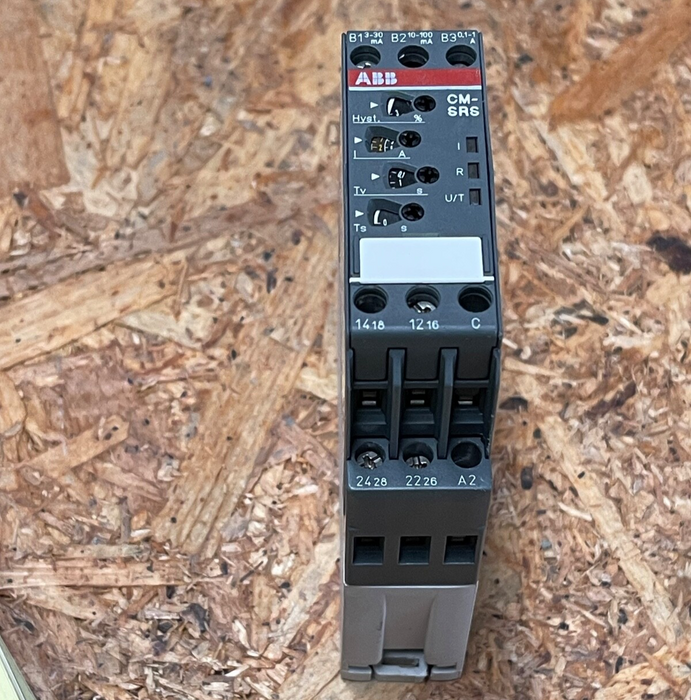

• LED Indicators: Green (power/timing), Yellow (relay status), Red (over/undercurrent)

• Operating Temperature Range: -20°C to +60°C

• Certifications: CE, UL 508, CSA, GL, EAC, CCC, RMRS

• Applications: Ideal for monitoring current levels in industrial automation, ensuring protection against overcurrent or undercurrent conditions in single-phase AC/DC systems.
