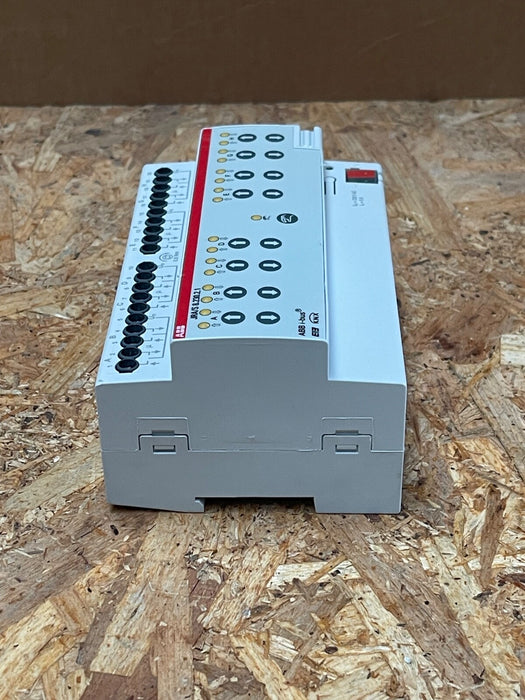

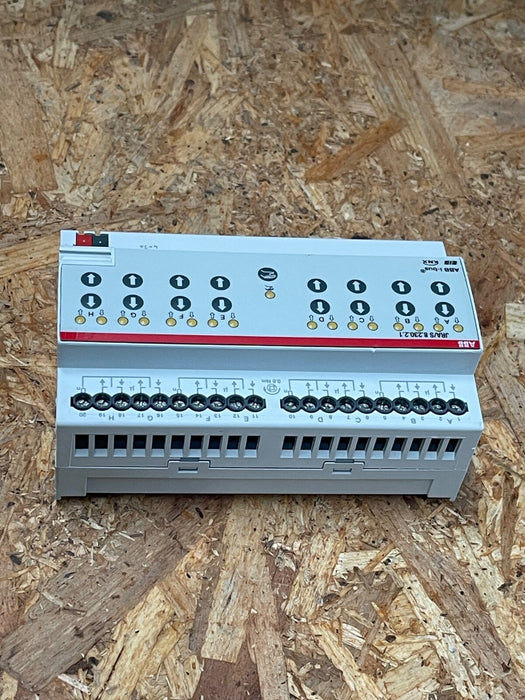

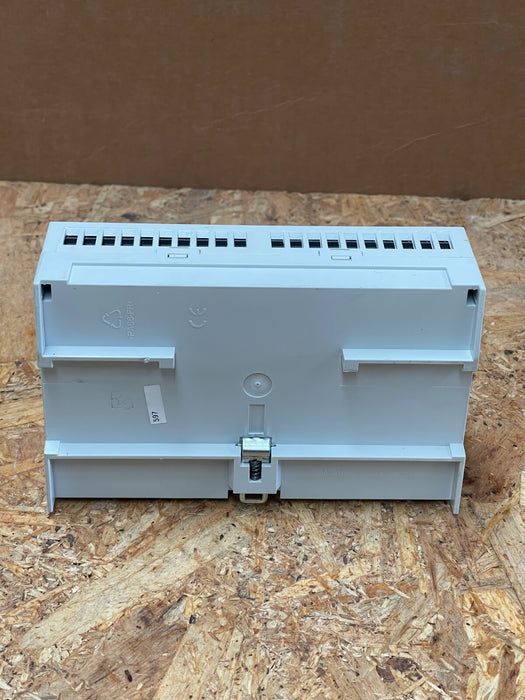

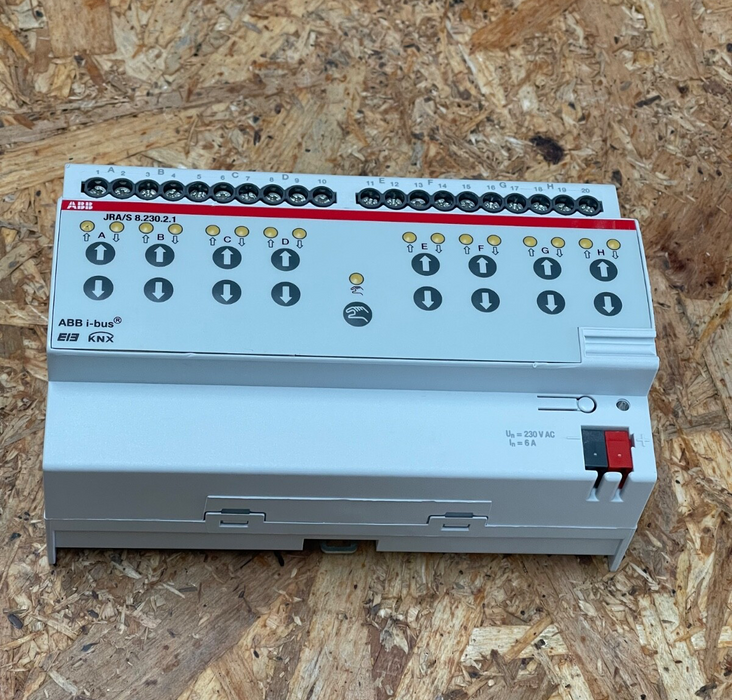

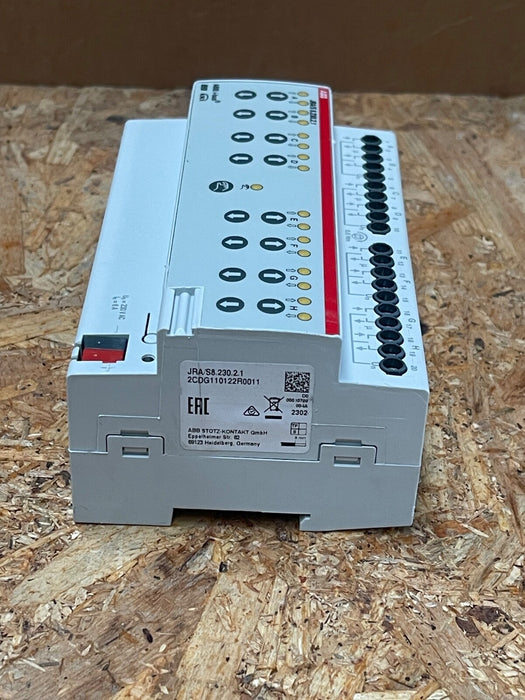

ABB – 2CDG110122R0011 (JRA/S 8.230.2.1) – Blind/Roller‐Shutter Actuator, 8‑Way

Main Features

• Manufacturer & Series: ABB, part of the KNX JRA/S actuator line

• Model/MPN: 2CDG110122R0011 (actuator type JRA/S 8.230.2.1)

• Functionality: Eight-channel actuator designed to control blinds, roller shutters, awnings, or drive motors—each channel independently switchable

• Voltage & Power: 230 VAC supply; pilot consumption approx. 0.25 W

• Operation: Supports manual override; each output mechanically interlocked to prevent short‑circuits

• Control Bus: Compatible with ABB i‑bus® KNX systems—rotary actuation with bus integration for home/building automation

• Construction & Dimensions:

  • Compact housing: approx. 144 × 90 × 64.5 mm; net weight ~0.41 kg

  • DIN‑rail or surface mountable; designed for electrical distribution panels
