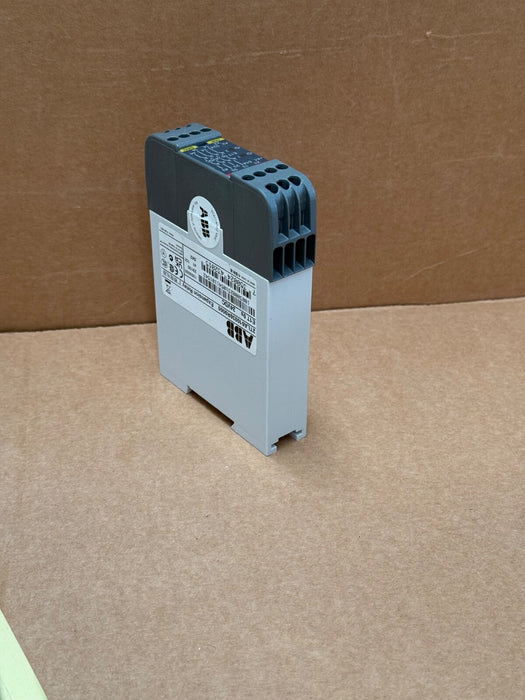

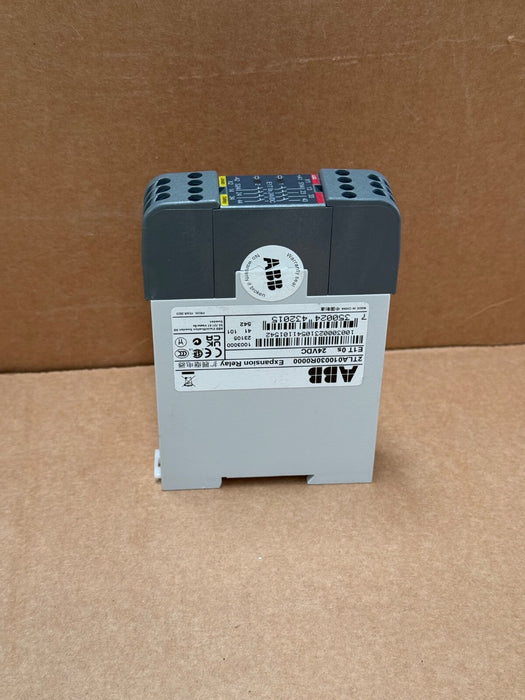

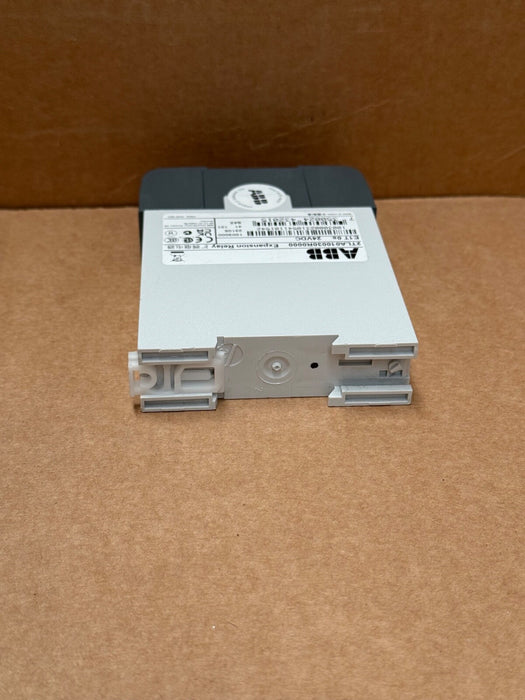

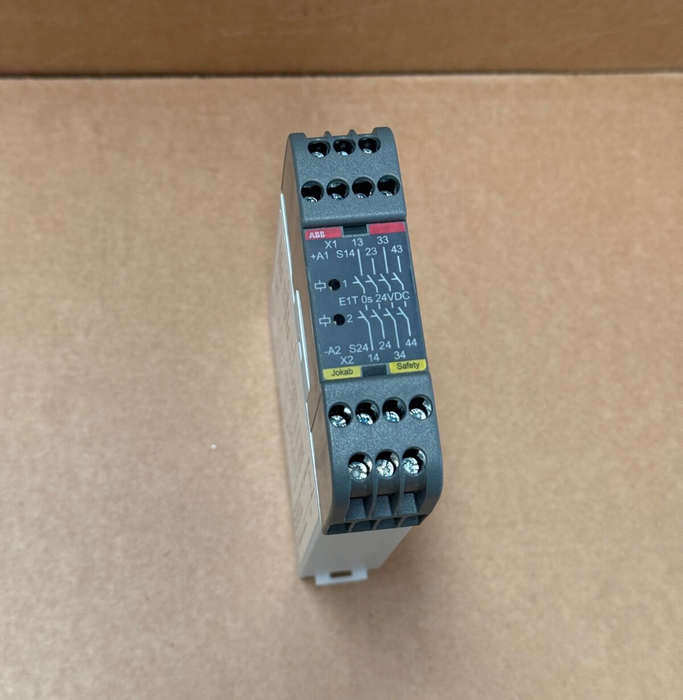

ABB – 2TLA010030R0000 E1T‑0S – Safety Expansion Relay, 4×NO Outputs, 24 V DC

The ABB E1T‑0S (P/N 2TLA010030R0000) is a modular safety expansion relay designed to increase the number of safe switching outputs for automation and industrial machinery. It provides an additional 4 NO outputs with selectable 0–3 s drop delay, enabling flexible safety circuit designs when paired with base safety relays like Jokab or Industrial Safety Systems.

 Key Features & Specifications

• Part / Model: 2TLA010030R0000 (E1T‑0S)

• Supply Voltage: 24 V DC, ~1.5 W consumption

• Outputs: 4 × safety-rated NO relay contacts (OS = On-Delay, safe off)

• Delay Settings: 0 s, 0.5 s, 1 s, 2 s, 3 s (selectable drop delay)

• Mounting: 22.5 mm DIN-rail module, fits E1 base units; plug-in screw connectors

• Approvals: CE, TUV, UL, certified to EN62061, EN954‑1, ISO13849‑1, SIL 3 / PLe

• Indicators: Built-in LED for power/output status feedback
