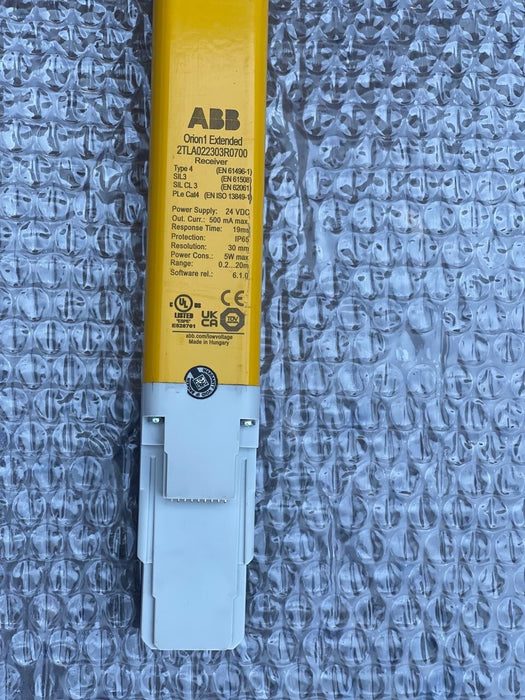

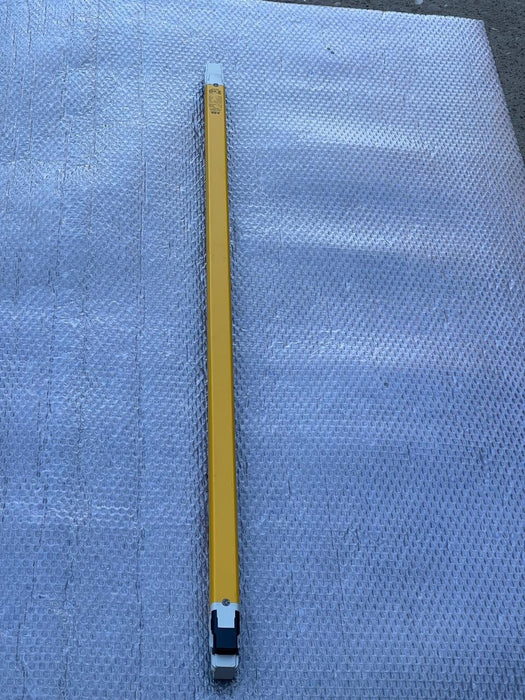

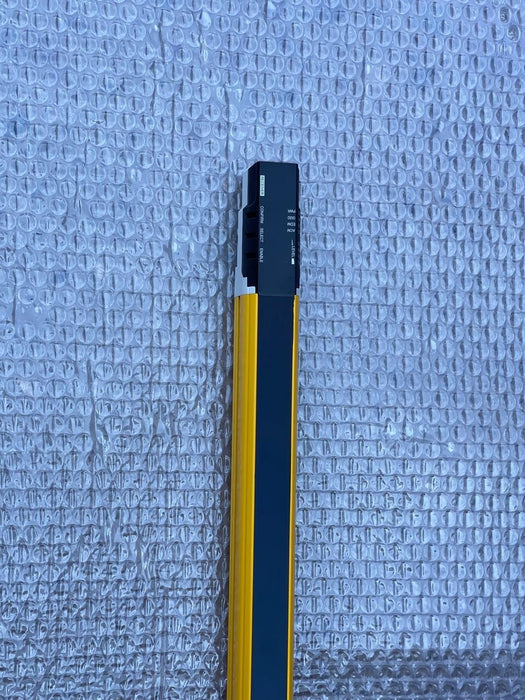

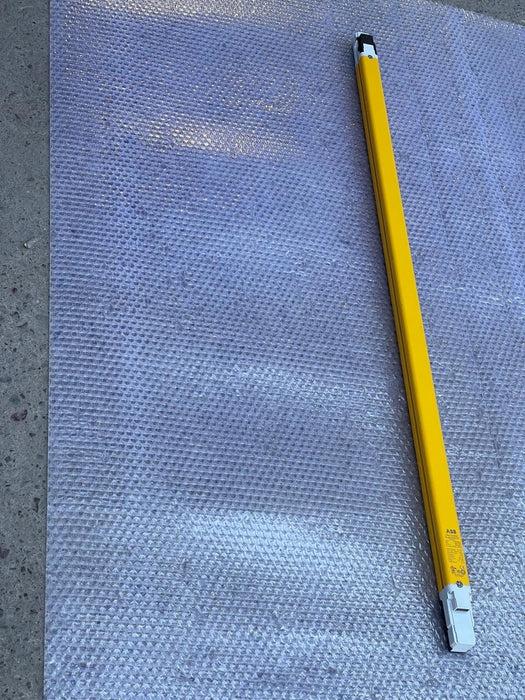

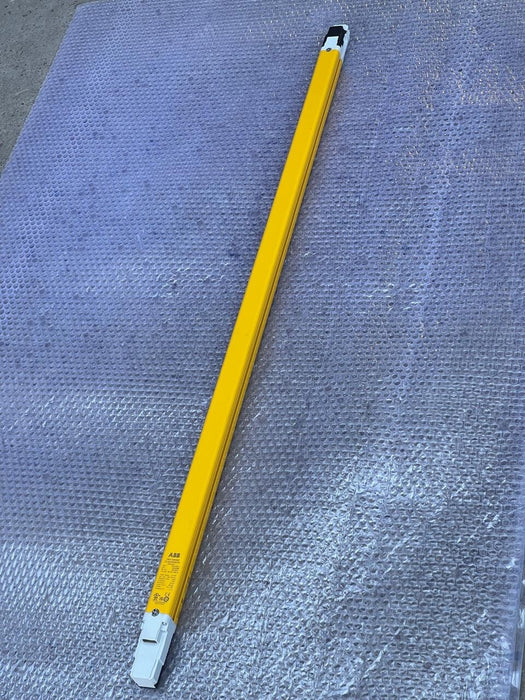

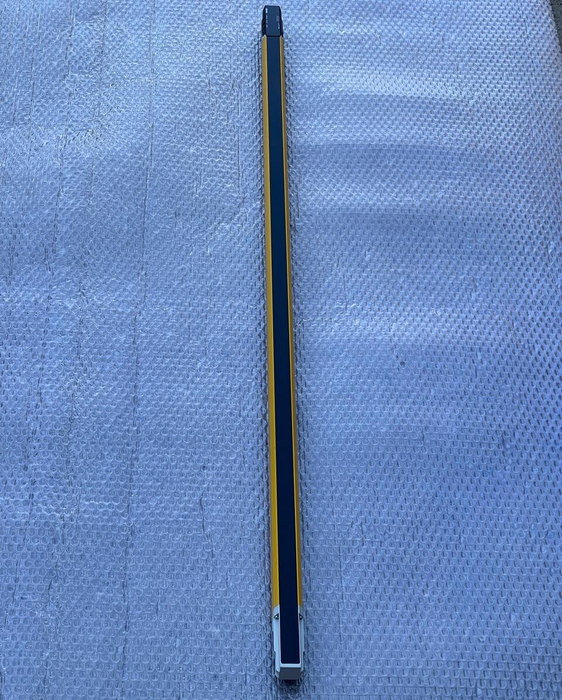

ABB – 2TLA022303R0700 – Orion1 Extended 1.2 m Safety Light Curtain (0.2–20 m)

The ABB 2TLA022303R0700 (Orion1 Extended) is a Type 4 safety light curtain comprised of paired transmitter and receiver units. With 30 mm resolution and a protected height of 1,200 mm, it offers reliable finger and hand protection for machine guards and access points. Designed for ranges from 0.2 to 20 m, this durable assembly ensures safe operation in industrial environments.

Key Features:

• Model: 2TLA022303R0700 (Orion1‑4‑30‑120‑E)

• Curtain Type: Extended-range safety light curtain – transmitter + receiver pair

• Resolution: 30 mm (finger or hand detection)

• Protected Height: 1,200 mm

• Range: 0.2 – 20 m

• Supply Voltage: 24 V DC (±20%)

• Outputs: 2 failsafe OSSD outputs

• Safety Performance: PL e, Cat 4; SIL 3 capable

• Ingress Protection: IP65 (aluminum housing)

• Dimensions: Depth 41 mm; Width 70 mm; Height 1,206 mm

• Operating Temp: 0 °C to +55 °C

• Weight: ≈ 3.26 kg/pair (~11.95 lb)
