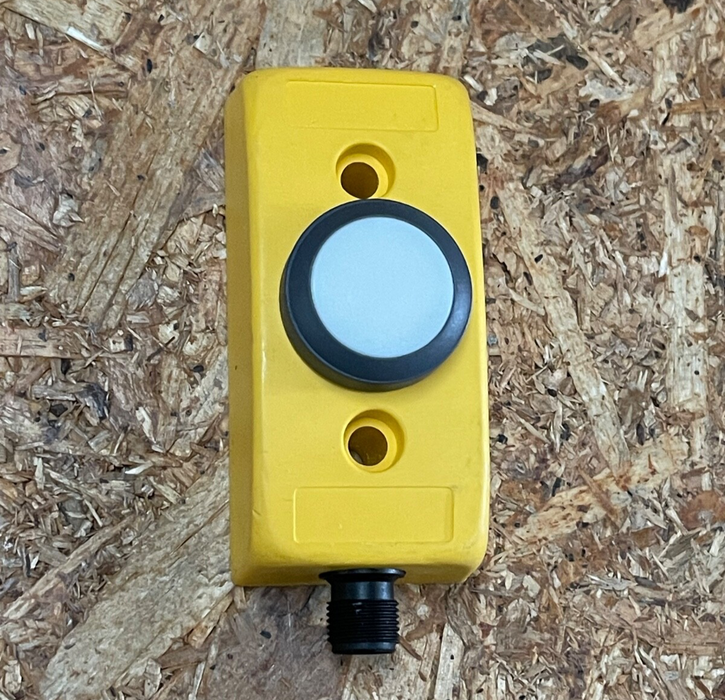

ABB – 2TLA022316R3000 (Smile 11RO1) – Illuminated Reset Button in Smile Housing

Main Features

• Manufacturer: ABB (Jokab Safety / Smile series)

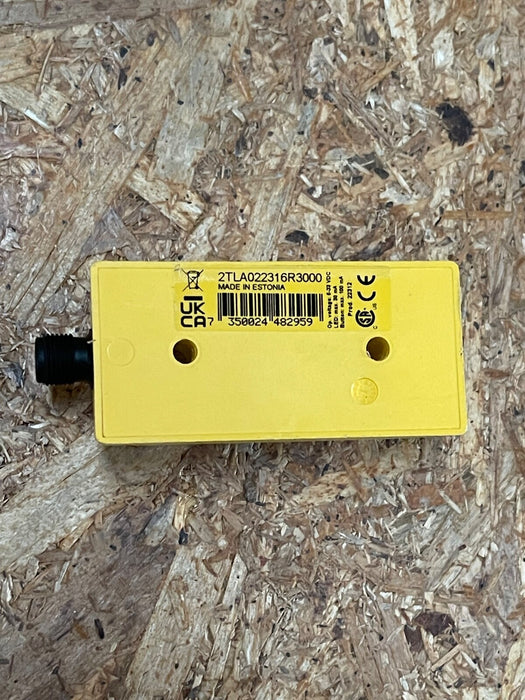

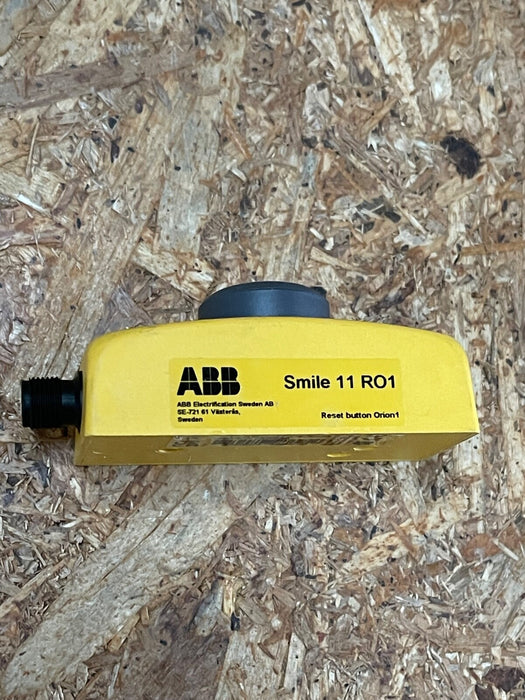

• Model/MPN: 2TLA022316R3000, commonly referred to as “Smile 11RO1” reset button

• Function: Illuminated reset push-button module designed to be mounted in ABB Smile enclosures, paired with Orion1 Safety Base for safety light curtains and guards

• Electrical Specs:

  • Supply Voltage: 24 V DC

  • Output: One normally-open (NO) contact

  • Built-in LED illumination for clear visual feedback

• Connection & Housing:

  • Housed in rugged yellow Smile enclosure (IP65/IP67 rated)

  • One M12‑5 male connector for base integration (requires M12-CTO1BM cable)

• Mounting & Dimensions:

  • Modular design for flush mounting in Smile control stations

  • Approx. 97 × 40 × 36 mm; weight 0.064 kg
