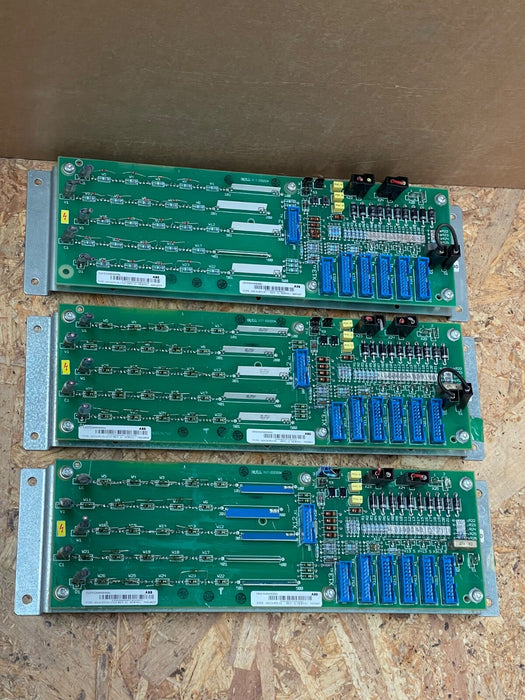

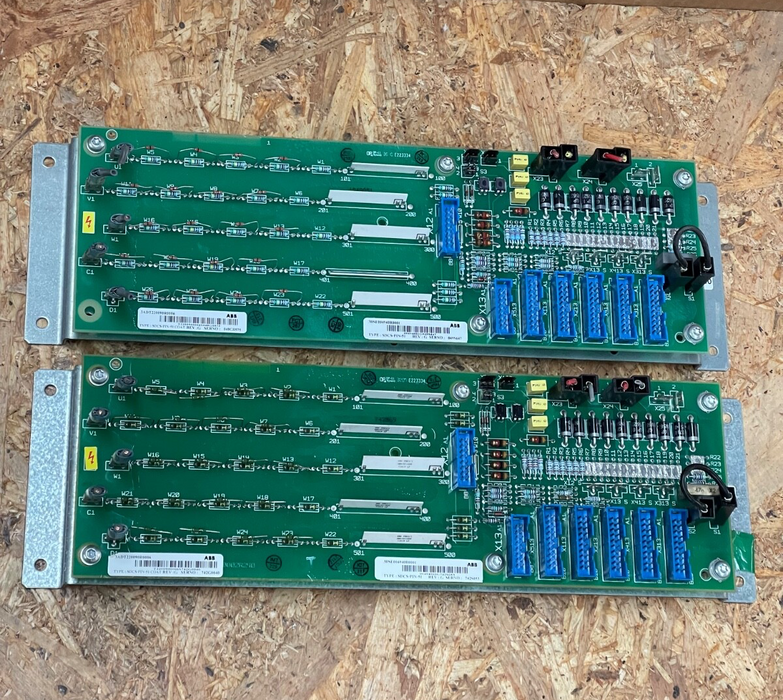

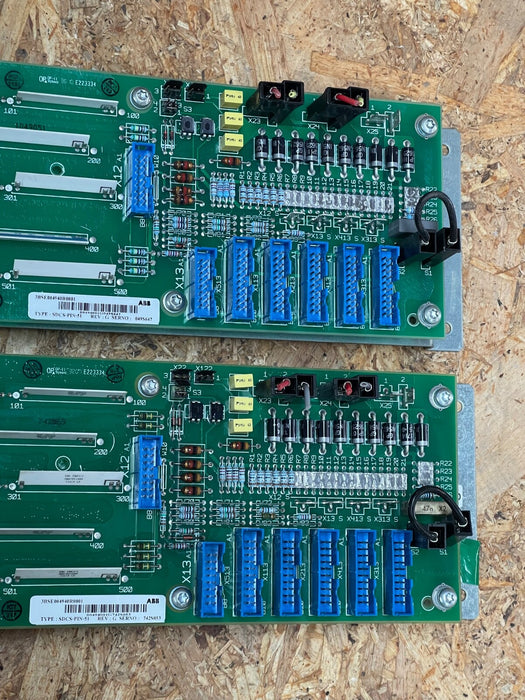

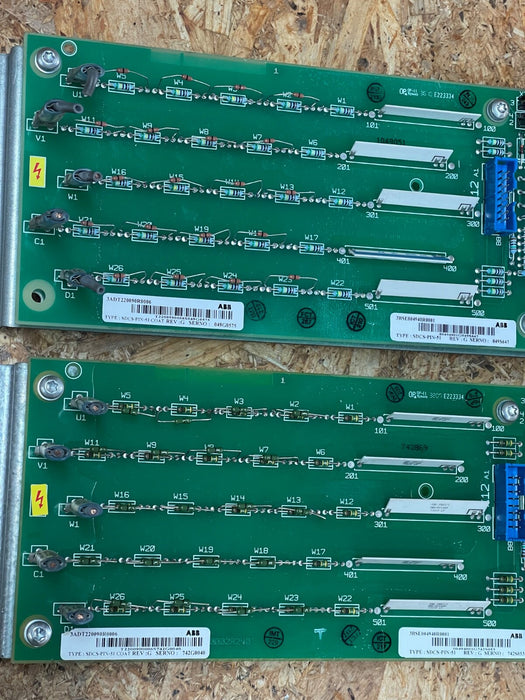

ABB – 3BSE004940R0001 (SDCS‑PIN‑51) – Power Interface / Measurement Card

The ABB 3BSE004940R0001, commonly known as SDCS‑PIN‑51, is a precision power interface/measurement card designed for ABB DCS500 and DCS800 drive systems. It enables accurate analog signal measurement and conditioning for control and monitoring applications within ABB distributed control architectures.

Key Features:

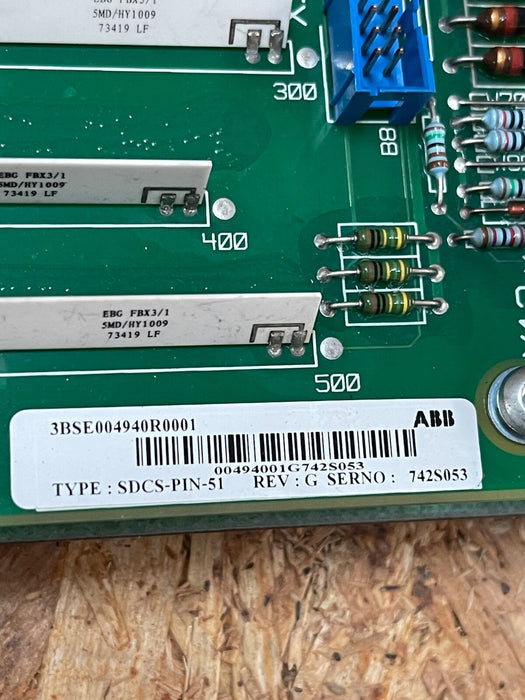

• Model: 3BSE004940R0001 (SDCS‑PIN‑51) 

• Brand: ABB (Asea Brown Boveri) 

• Function: Power interface and analog measurement card for drive systems 

• Compatible Systems: ABB DCS500/DCS800 inverter and drive control platforms 

• Replaced Part: Common replacement for SDCS‑PIN‑52 (3BSE011316R0001) 

• Weight & Dimensions: ~160 g; approx. 12.7 × 5.1 × 4.4 cm 

• Manufacture Location: Sweden (catalog) / Thailand (origin)
