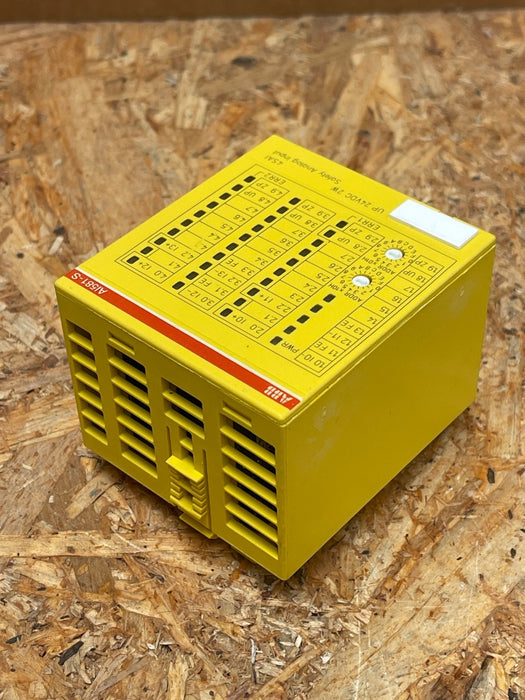

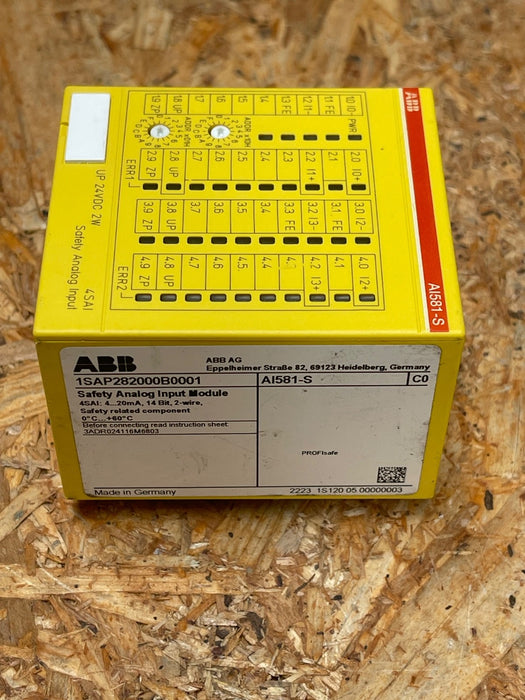

ABB – AI581‑S – Safety Analog Input Module, 4 × 4–20 mA Channels, 1SAP282000B0001

The ABB AI581‑S (P/N 1SAP282000B0001) is a high-integrity safety-rated analog input module in the AC500‑S (S500) PLC series. It offers four configurable current inputs (4–20 mA or 0–20 mA, 14‑bit resolution) and provides SIL 2 performance across all channels, with up to SIL 3 achievable on two channels under discrepancy monitoring. Designed for functional safety applications, it features PROFIsafe-enabled, fast conversion, configurable filtering, and robust diagnostics.

Key Features

• Inputs: 4 analog channels, 4–20 mA or 0–20 mA selectable, 14‑bit resolution, 125 Ω input resistance

• Safety Integrity: SIL 2 across all four channels; two-channel SIL 3 capability with built-in discrepancy supervision

• Safety Communication: PROFIsafe over PROFINET, designed for AC500‑S systems

• Supply & Power: 24 V DC (20.4–28.8 V), approx. 180 mA; reverse-polarity protected

• Performance: 0.33 ms conversion cycle; 1–500 ms configurable input filter; 10 ms input time constant; max 70 Hz signal frequency

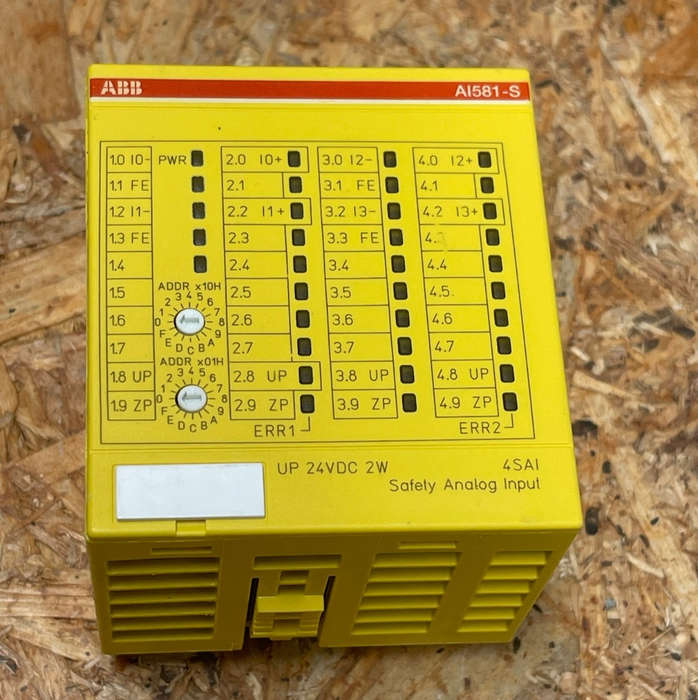

• Diagnostics: Front-panel LEDs for power, errors, and per-channel status; test-function support via PROFIsafe

• Mechanical: Compact IP20 housing, DIN-rail mountable, 67.5 × 76 × 62 mm; weight approx. 130 g

• Environment: Operating 0–60 °C (XC versions extend range), non-condensing humidity, compatible with harsh environments per AC500‑S‑XC
