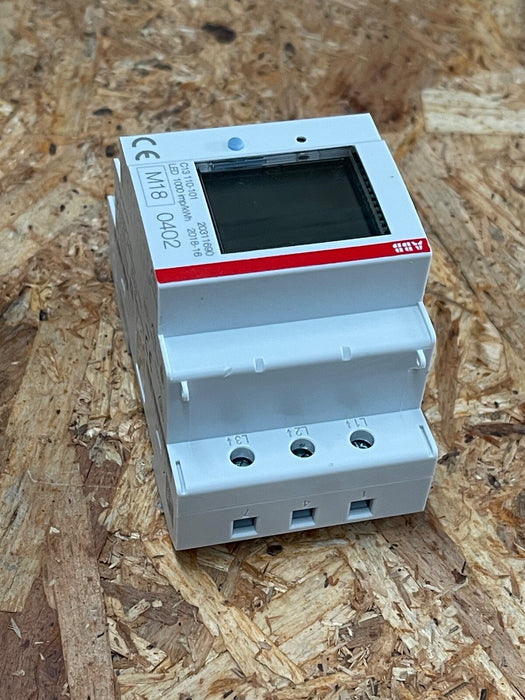

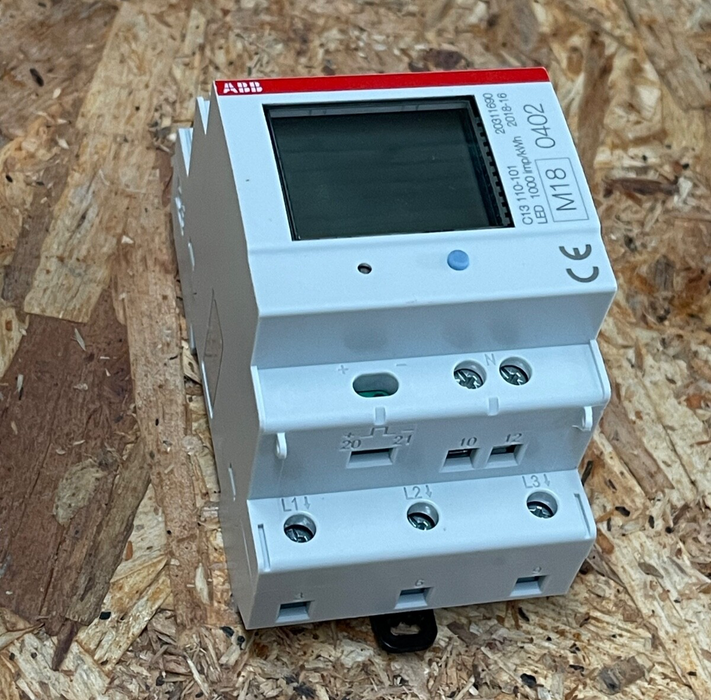

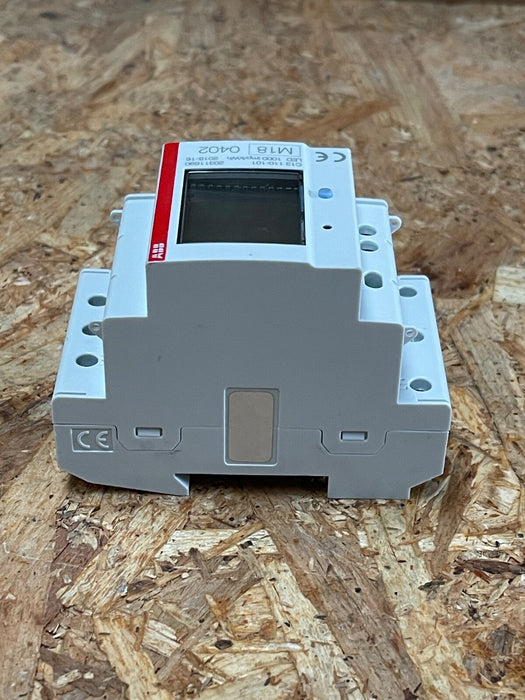

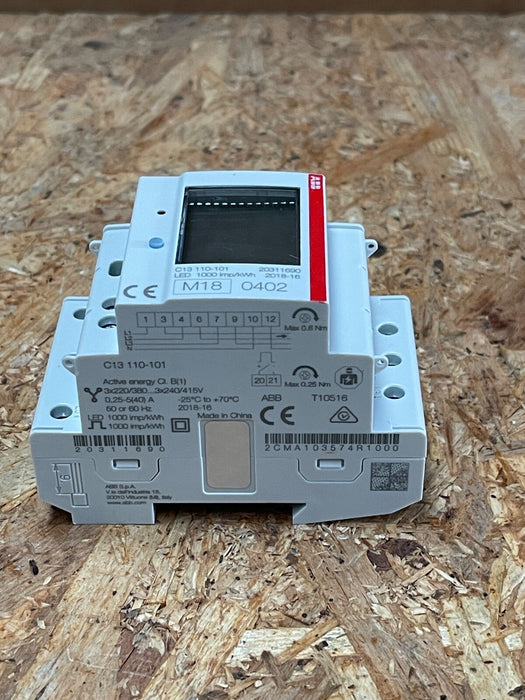

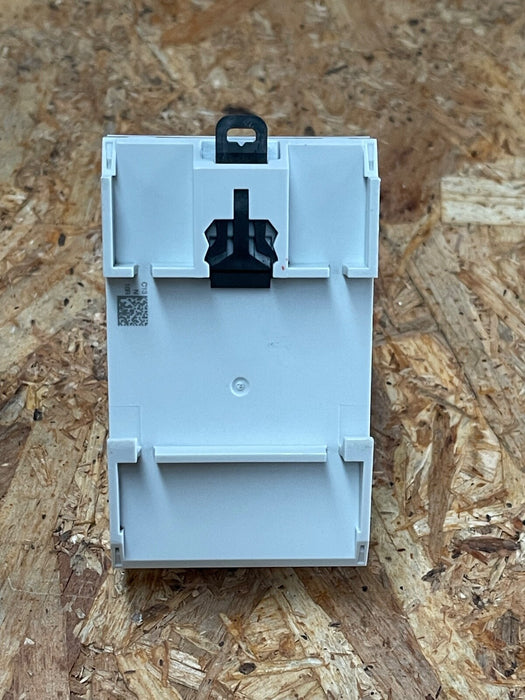

ABB – C13 110‑101 MID (2CMA103574R1000) – 3‑Phase Direct‑Connect Energy Meter

 Main Features

• Manufacturer & Model: ABB C13 110‑101 MID, catalog number 2CMA103574R1000

• Measurement Function: Direct-connected three-phase energy meter, supports up to 40 A per phase; measures active energy per Class 1/Class B accuracy standards

• MID & IEC Compliance: Certified per MID, IEC 62052‑11, IEC 62053‑21, EN 50470‑1/-3—suitable for billing applications

• Display & Outputs:

  • Backlit LCD display showing energy, voltage, current, frequency, and power factor

  • One configurable output—selectable as pulse (1000 imp/kWh) or alarm; supports up to 25 threshold settings

• Installation & Connectivity:

  • Compact DIN-rail mountable (1-module/1 TE) with IP20 housing

  • Connects in four-wire systems; neutral loop-through terminals for easy wiring

• Operating Conditions:

  • Temp range: –25 °C to +70 °C

  • Pulse output: 2 mA–100 mA, 5–40 V DC

• Applications:

  • Suitable for residential, commercial, and industrial power monitoring

  • Ideal where verified (billing-grade) metering with pulse/alarm signaling is required
