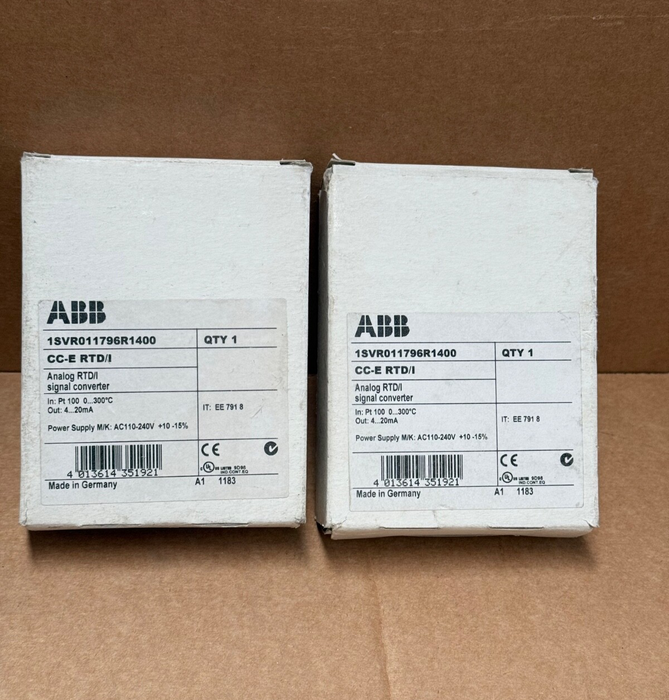

ABB – CC‑E RTD/I (1SVR011796R1400) – DIN‑Rail PT100‑to‑4‑20 mA Temperature

The ABB CC‑E RTD/I (P/N 1SVR011796R1400) is a high-performance signal converter that transforms PT100 RTD sensor inputs (–50 °C to +250 °C) into a standard 4–20 mA output. Powered by 110–240 VAC and offering 3‑way isolation, it ensures accurate temperature monitoring in harsh industrial environments.

Key Features & Specifications

• Model / P/N: CC‑E RTD/I – 1SVR011796R1400

• Input: PT100 RTD sensor, 2- or 3-wire connection

• Temperature Range: –50 °C to +250 °C

• Output: 4–20 mA proportional to temperature

• Supply Voltage: 110–240 VAC, 50/60 Hz; ≤2 W power consumption

• Isolation: 3‑way (input/output/supply) for safe separation and protection

• Mounting: 22.5 mm wide DIN‑rail module; depth ~107 mm

• Indicators & Adjustments: Green LED shows supply status; front potentiometers for zero/span adjustments; DIP-switch selection on universal types

• Certifications: cUL/UL508, EN 61000‑6‑2/‑6‑4; rated for industrial EMC environments

• Weight: ~90 g
