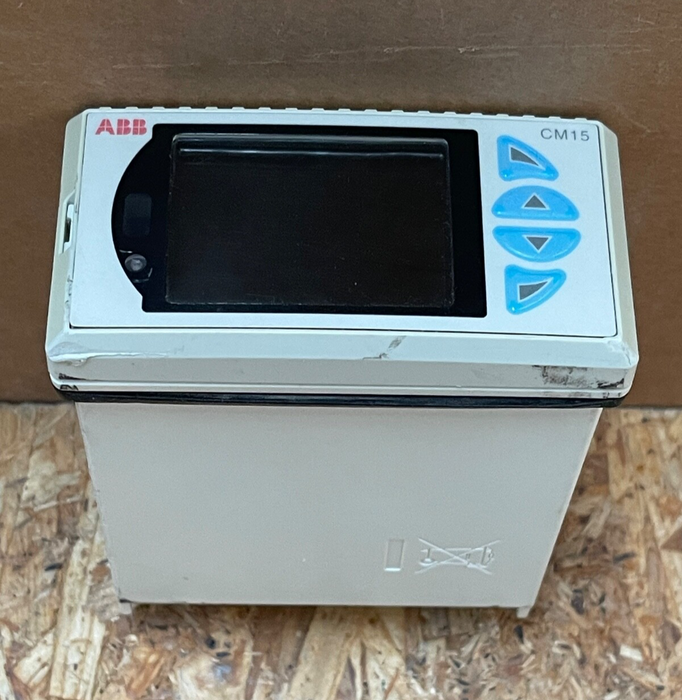

ABB – CM15/000U0E0/STD – ControlMaster CM15 Universal Process Indicator

Main Features

• Display: 1/8 DIN full‑color TFT screen delivering crisp, real‑time process indications with intuitive text‑based menu navigation

• I/O Capabilities (Basic Version):

  • 2 universal analog inputs (thermocouple, RTD, mA, V, frequency, digital)

  • 1 analog retransmission output (programmable 0–20 mA)

  • 1 relay output (SPDT, 5 A @ 240 VAC)

• Functional Flexibility: Supports totalization, level-to-volume conversion, pulse counting, math, logic, alarms, timers—expandable with optional plug‑in modules

• Connectivity Options: Base infrared (IrDA) port; can be upgraded with Modbus RTU, Modbus TCP, Ethernet, PROFIBUS via plugin modules

• Durability: Front panel rated to IP66 / NEMA 4X; chassis back-up to IP20—ideal for industrial environments

• Power Supply: 100–240 V AC (standard); optional 10–36 V DC variant available

• Environmental Specs: Operating range 0–55 °C, 5–95% RH (non‑condensing); EMC compliant per IEC 61326

• Physical Dimensions: 45 × 92 mm panel cut‑out; unit depth approx. 120 mm; weight ~0.38 kg
