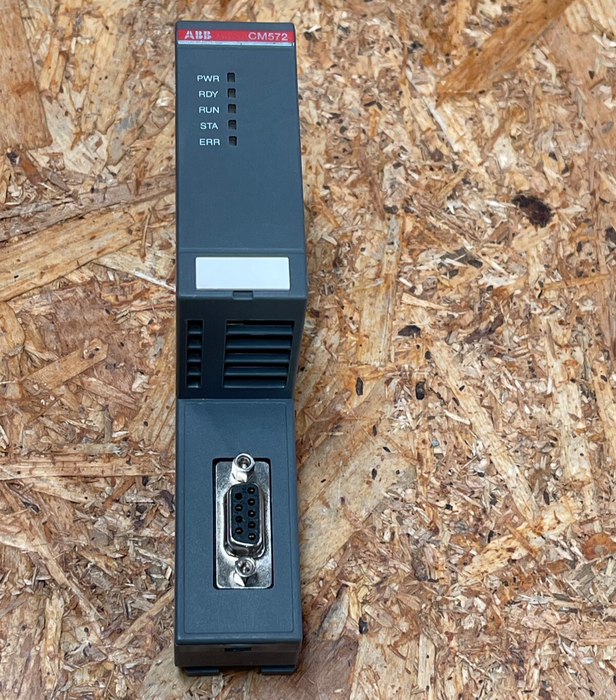

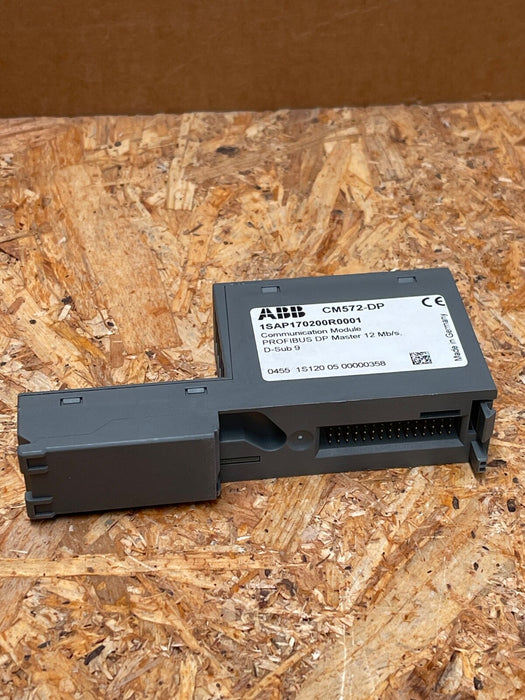

ABB – CM572‑DP – PROFIBUS‑DP Master Communication Module (1SAP170200R0001)

The ABB CM572‑DP (part number 1SAP170200R0001) is a PROFIBUS‑DP master communication module for the AC500 PLC system. Supporting PROFIBUS DP-V0 and DP-V1 protocols, it enables seamless integration of remote I/O, drives, and field devices using RS‑485-based networking. The module communicates through a 9-pin D-sub connector and supports data rates up to 12 Mbit/s. Compatible with all AC500 CPUs, the CM572-DP provides robust industrial communication in a compact, DIN-rail-mountable housing.

Key Features:

• Model: CM572‑DP

• Part Number: 1SAP170200R0001

• Protocol: PROFIBUS‑DP Master, DP-V0 and DP-V1

• Data Rates: 9.6 kbit/s to 12 Mbit/s

• Interface: RS‑485 via 9-pin D-Sub connector

• Mounting: DIN-rail, integrated into AC500 PLC racks

• Power Supply: 24 V DC, typical consumption ~25 mA

• Dimensions: 62 × 28 × 135 mm

• Protection: IP20

• Operating Temperature: 0 to +60 °C
