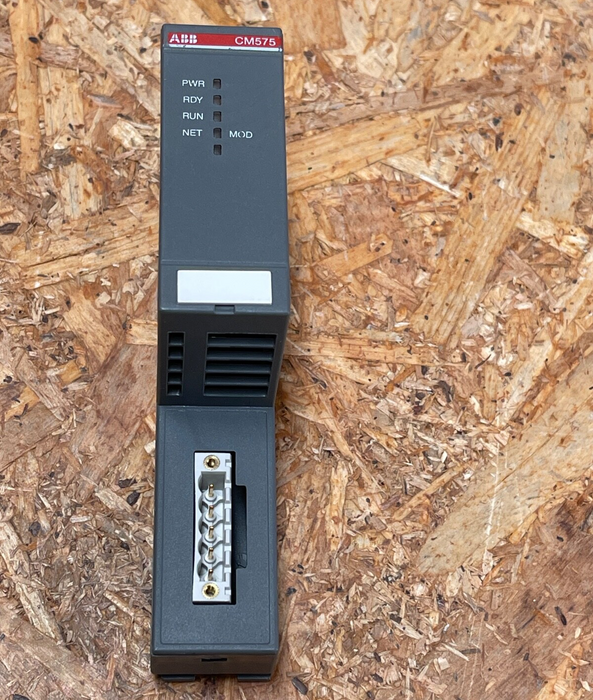

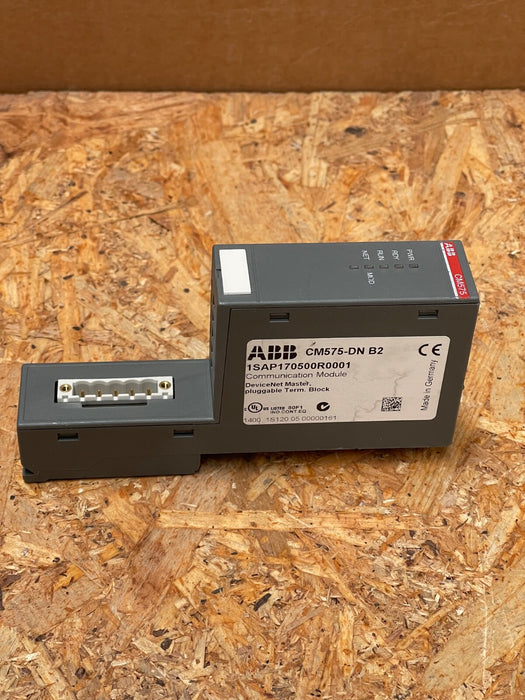

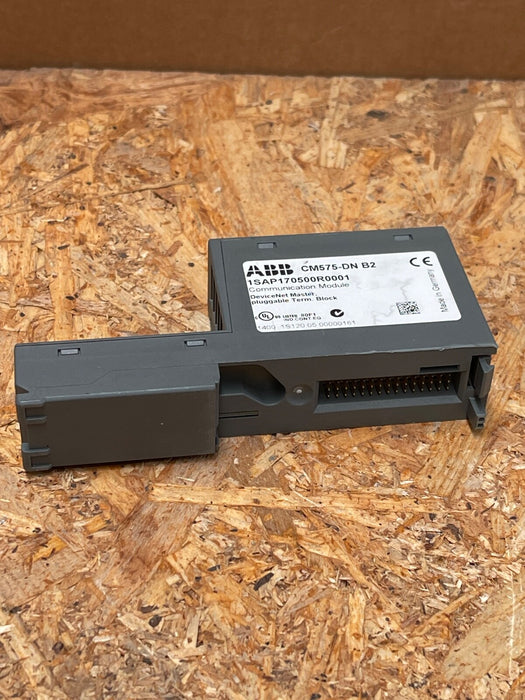

ABB – CM575‑DN – DeviceNet Master Communication Module (1SAP170500R0001)

The ABB CM575‑DN (P/N 1SAP170500R0001) is a pluggable DeviceNet master communication module for ABB’s AC500 PLC platform. It enables high-speed DeviceNet networking (125/250/500 kbit/s) via a 9-pin D-sub to 5-pin spring-terminal interface. Designed for compact, modular PLC setups, it seamlessly integrates distributed I/O, drives, sensors, and HMIs in industrial automation systems.

Key Features:

• Model / Part No.: CM575‑DN – 1SAP 170 500 R0001

• Protocol: DeviceNet Master, supports 125/250/500 kbit/s rates

• Connector: 9-pin D‑Sub → 5-pin spring-terminal plug

• Mounting: AC500 Option slot interface (up to four modules per CPU)

• Power Consumption: Under 25 mA from 24 V DC rail

• Dimensions & Weight: 62 × 28 × 135 mm; ~120 g net, ~200 g gross

• Environmental Ratings: IP20 housing; operating 0–60 °C horiz, 0–40 °C vert; storage −40 … +70 °C; RH ≤95 % non-condensing
