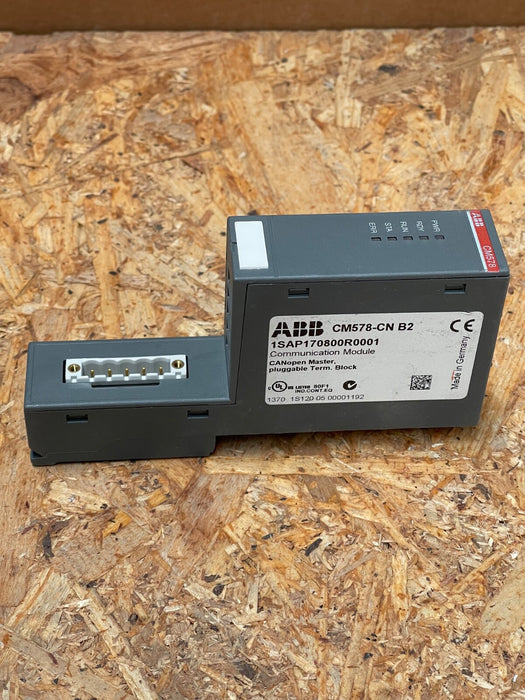

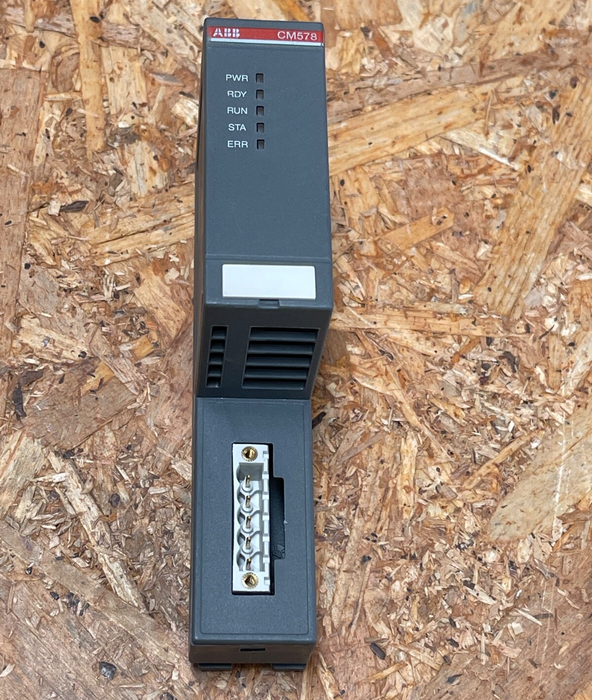

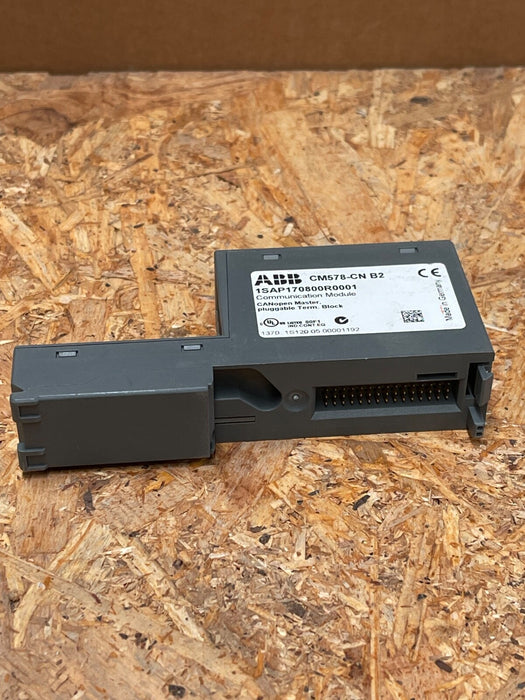

ABB – CM578‑CN B2 – CANopen Master Communication Module (1SAP170800R0001)

The ABB CM578‑CN B2 (part number 1SAP170800R0001) is a CANopen master communication module designed for use with ABB’s AC500 and S500 programmable logic controllers. It allows connection of the PLC to a CANopen network as the master, facilitating control over various field devices such as sensors, drives, and distributed I/O. The module communicates via a 5-pole spring terminal connector and supports data transmission rates up to 1 Mbit/s. The B2 suffix denotes a firmware or QC revision, with identical hardware and functionality as other CM578‑CN variants.

Key Features:

• Model: CM578‑CN B2

• Part Number: 1SAP170800R0001

• Communication Protocol: CANopen Master

• Baud Rate: 10 kbit/s to 1 Mbit/s

• Connection Interface: 5-pole COMBICON spring terminal

• Mounting: Pluggable front module for AC500 CPU racks

• Power Supply: 24 V DC from system rail; typical consumption <50 mA

• Dimensions: 62 × 28 × 135 mm

• Protection Class: IP20

• Operating Temperature: 0 to +60 °C (horizontal); 0 to +40 °C (vertical)

• Storage Temperature: −40 to +70 °C

• Relative Humidity: 5% to 95% (non-condensing)
