The ABB DA is a compact, low-capacity variable-area (float-type) flow meter constructed entirely from corrosion-resistant plastic materials. Engineered for monitoring liquid or gas purge flows, it features a vertical mount, clear scale, and optional needle valve for precise adjustment. Ideal for purge lines, instrumentation bleed-off, or level/gas flow control in chemical and process systems.

Key Features:

Model: DA
Brand: ABB Automation Products
Flow Tube Material: Extruded Trogamid T; all-wetted components are corrosion-resistant
Body Material: Novodur plastic

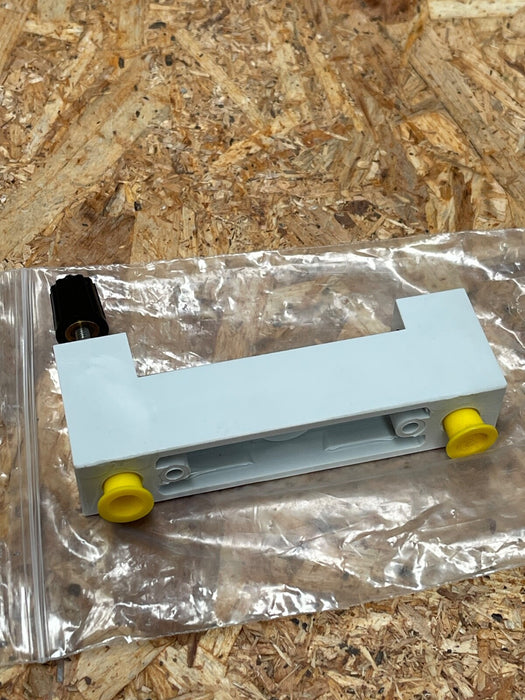

Connection: /″ NPT female threads; also includes mounting holes for panel/wall fitting
Scale Length:  mm (standard models)
Needle Valve Options: Versions available with inlet or outlet needle valves—or without—denoted by suffix (e.g., DAN, M, A)
Float Type: Internal plastic float that moves freely in a vertical tube; scales correspond to float diameter
Pressure Rating: Suitable for typical purge and bleed line pressures (exact rating per datasheet)
Mounting Orientation: Must be installed vertical with highest scale marking upward

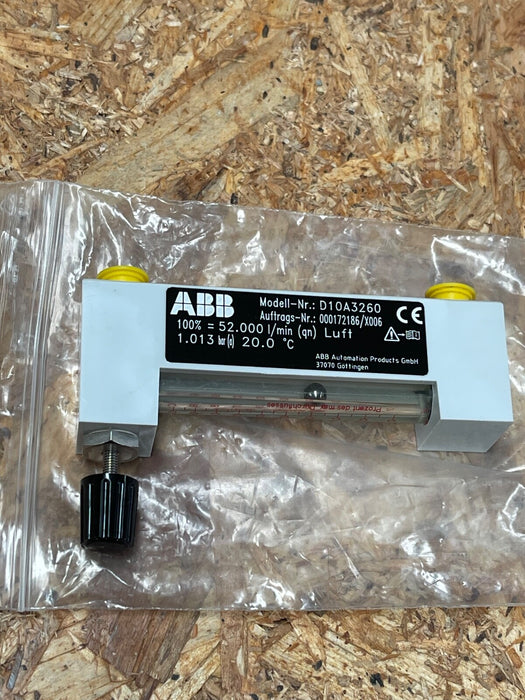

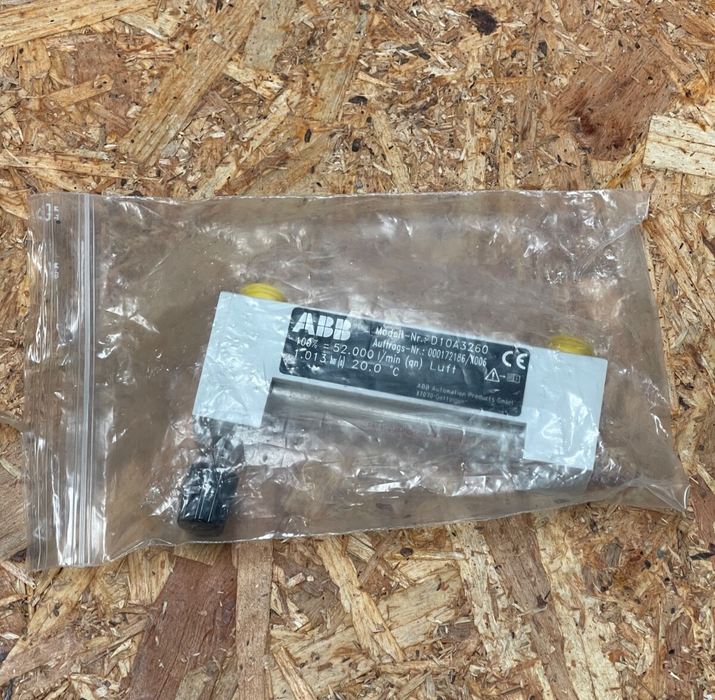

ABB – D10A3260 – All-Plastic Purge (Variable-Area) Flow Meter, 1/8″ NPT
