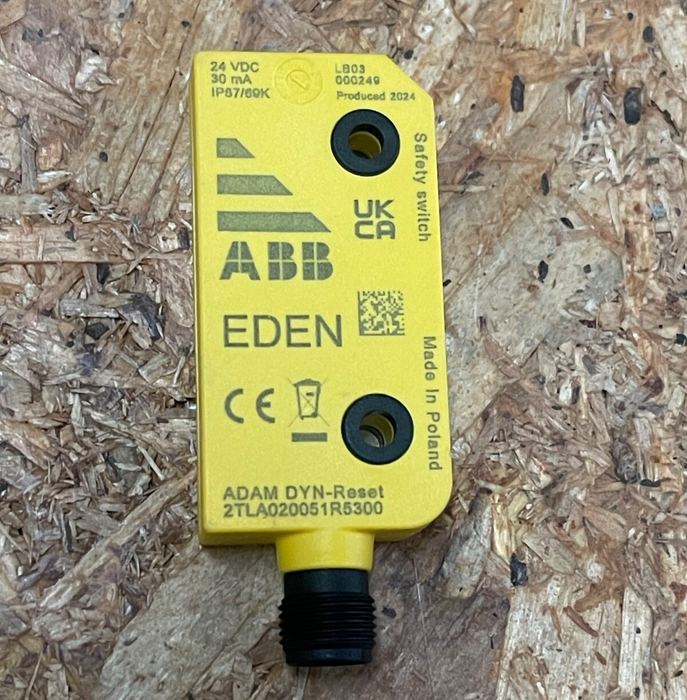

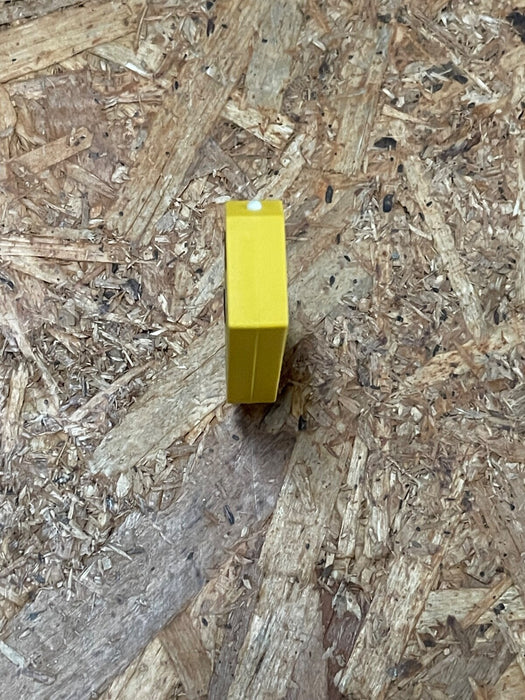

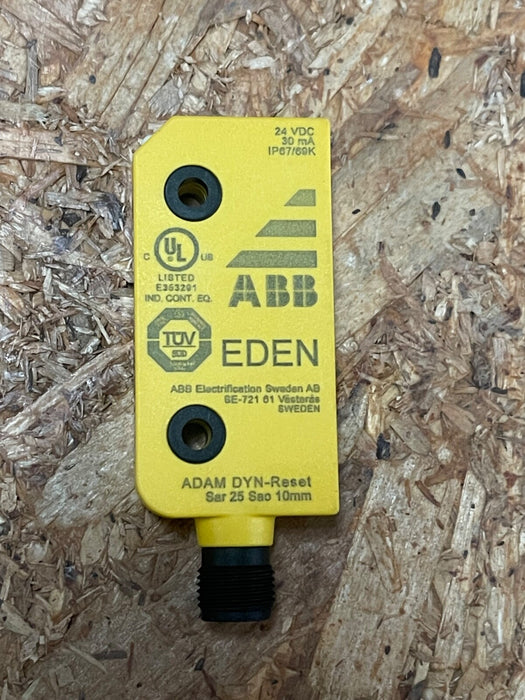

ABB (Jokab Safety) – 2TLA020051R5300 – ADAM DYN‑Reset M12‑5 Non‑Contact Safety

Main Features

• Manufacturer & Series: ABB Jogab Safety, Eden Dynamic series, known as ADAM DYN‑Reset sensor

• Model/Part No.: 2TLA020051R5300

• Functionality: Non-contact magnetic safety interlock sensor for monitoring guard doors, hoods, or gates—it uses a resettable relay mechanism (DYN‑Reset) with visible indication

• Sensing Range: Up to 15 mm detection distance; series connection supported, spacing ≥ 100 mm

• Electrical Specs:

  • Operating voltage: 24 V DC

  • Quiescent current: approx. 30 mA

  • Max switching voltage: 24 V DC

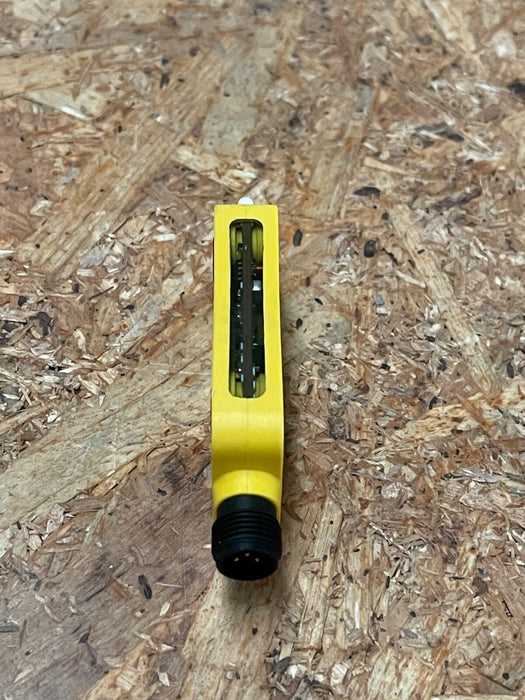

• Connection: M12‑5 male connector, IP67/IP69K rated

• Operating Conditions: −40 °C to +70 °C; robust yellow plastic housing, approx. 250 g

• Safety Standards: Certified to SIL 3 and PL e Cat 4 levels under DIN EN ISO 13849‑1
