ABB Jokab Safety – 2TLA042022R3400 – Magne 4 DYN‑Info Electromagnetic SafetyLock

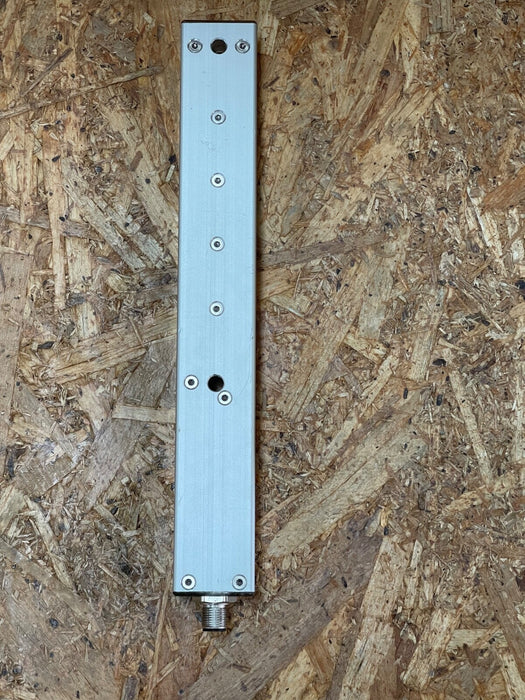

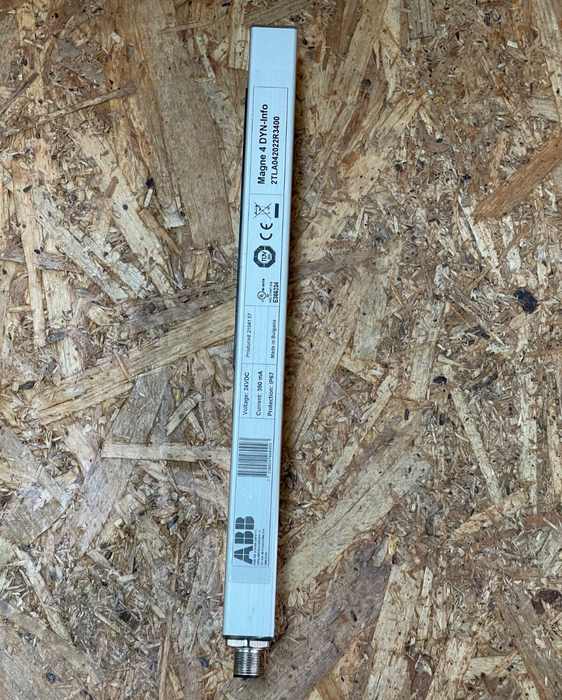

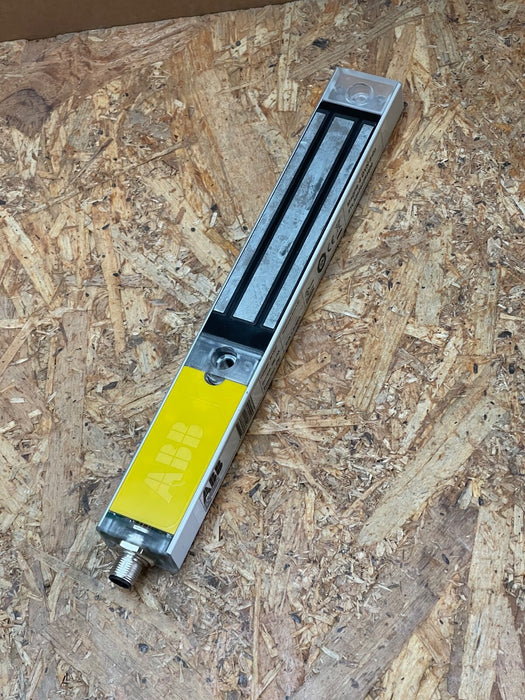

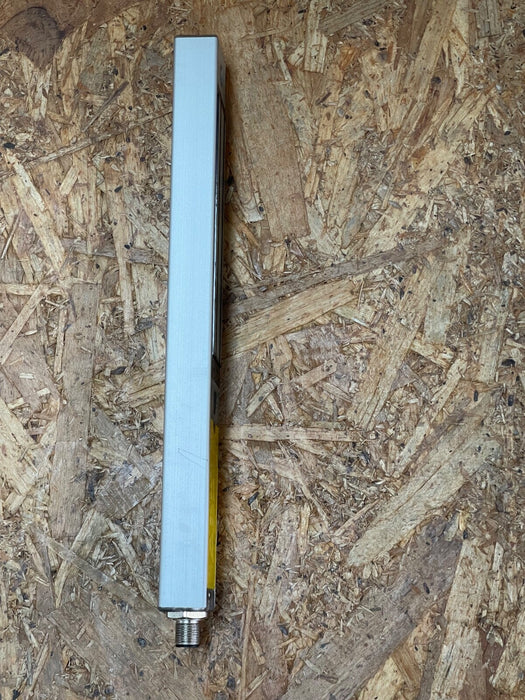

The ABB Magne 4 DYN‑Info (2TLA042022R3400) is a robust electromagnetic safety interlock designed for guarding doors, hatches, and machine access points in high-risk industrial environments. It features an integrated Adam DYN safety sensor, providing a combined “Locked & Closed” status output via an 8-pin M12 connector. With a 1500 N holding force and IP67-rated aluminum housing, this unit supports performance level e / SIL 3 interlock compliance.

Key Features:

• Model: 2TLA042022R3400 – Magne 4 DYN‑Info

• Holding Force: 1500 N at 24 V DC; current draw ~50 mA

• Connector:

  • 8‑pole M12 male

  • Includes +24 V, 0 V, DYNlink in/out, locking and info outputs

• Status Outputs:

  • DYNlink: safety control connection

  • Grey Info: active when Eva present and locked

• Housing: Anodized aluminum + polycarbonate, IP67, dust/water resistant

• Safety Rating: Performance Level e per ISO‑13849‑1; SIL 3 per IEC 62061

• Operating Conditions: –20 °C to +50 °C; weight ≈700 g; M12 cable mounting on side or end
