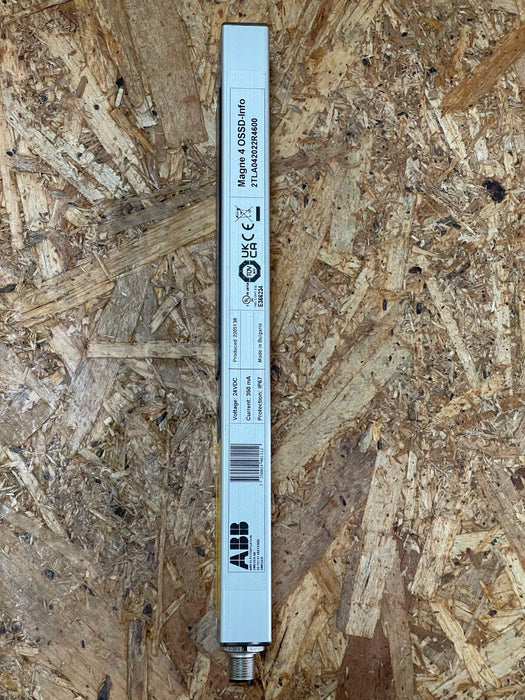

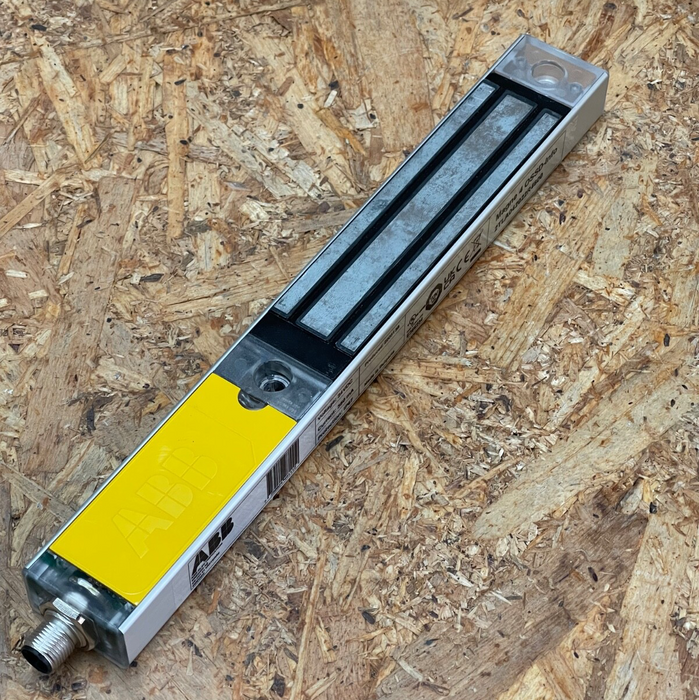

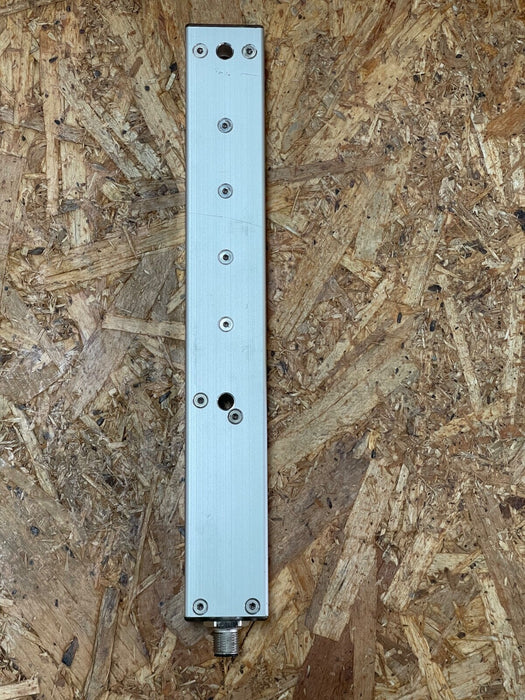

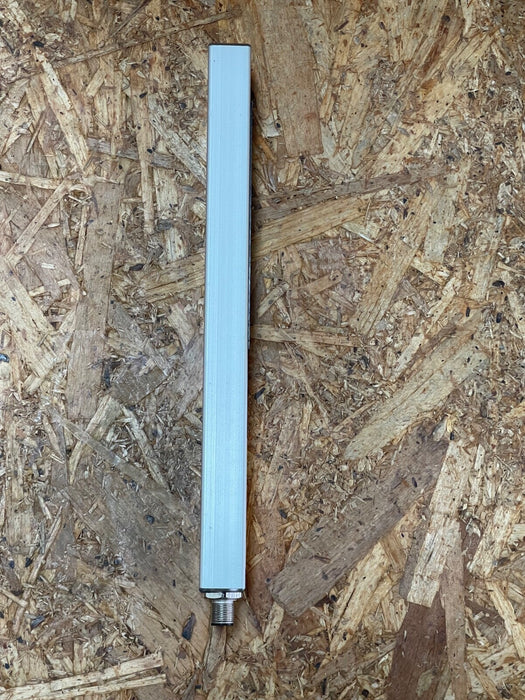

ABB Jokab Safety – 2TLA042022R4600 – Magne 4 Electromagnetic Process Lock

The ABB 2TLA042022R4600 (Magne 4 OSSD‑Info) is a high-integrity electromagnetic safety interlock designed for safeguarding industrial gates, access panels, and process enclosures. With integrated OSSD (Output Signal Switching Device) safety outputs and a combined status signal, it ensures reliable locking and guard monitoring in advanced safety control systems.

Key Features:

• Model: 2TLA042022R4600 – Magne 4 OSSD‑Info

• Holding Force: 1500 N at 24 V DC; approximate current 350 mA

• Connector: M12‑8 male with OSSD tokens and combined info output

• Safety Outputs: Dual-channel OSSD for safe interlocking; info output signals locked + closed state via Eden system

• Protection: IP67 rated aluminum housing; suitable for harsh environments

• Safety Ratings: Up to Performance Level e / SIL 3 via Eden OSSD interlock integration

• EFiciencies & Connectivity: Cascadable up to 30 devices on OSSD lines; streamlined wiring using M12 interface

OSSD‑Info Connector Pinout (M12‑8):

1. OSSD1 (output)

2. +24 V DC

3. OSSD1 in

4. OSSD2 in

5. Info (locked + Eva closed)

6. OSSD2 out

7. 0 V (common)

8. Locking signal +24 V DC
