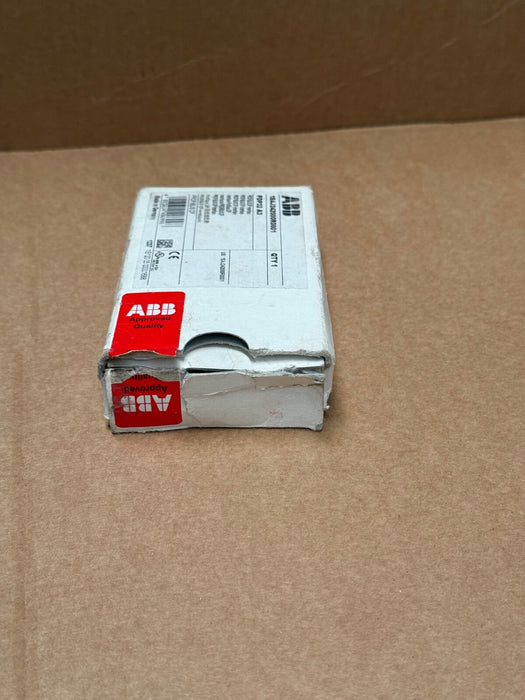

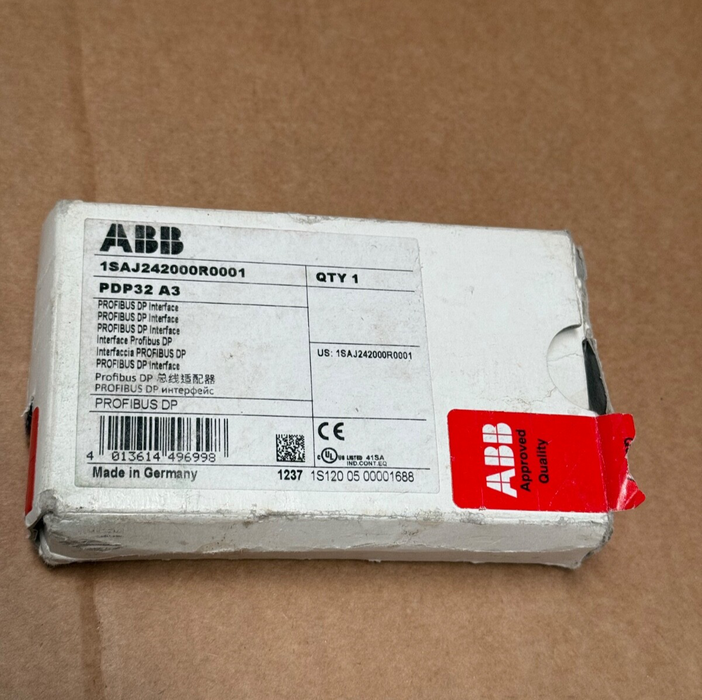

ABB – PDP32 A3 (1SAJ242000R0001) – PROFIBUS DP Interface Module

The ABB PDP32 A3 (1SAJ242000R0001) is a PROFIBUS DP communication interface designed for integration with the UMC100.3 universal motor controller. This compact DIN-rail module allows easy connection to PROFIBUS DP networks, enabling seamless automation and data exchange in industrial systems.

Key Features & Specifications

• Model / P/N: PDP32 A3 (1SAJ242000R0001)

• Function: PROFIBUS DP decentralized periphery interface for UMC100.3 motor controllers

• Control Supply: 24 V DC; power consumption approx. 1 W

• Fieldbus Interface: PROFIBUS DP, suitable for fast and reliable field communications

• Mounting & Dimensions: DIN-rail with single‑mounting kit; 22.5 mm wide × 64 mm × 59 mm; weight ~50 g

• Protection Rating: IP20, RoHS compliant, CE marked

• Certifications: IEC/EN 61131‑2, UL 61010‑1/-2; CAN/CSA C22.2 No.61010‑1/-2-201
