ABB – TE5S‑240 (1SBN020010R1003) – Star‑Delta Timer Relay, 220–240 VAC, 0.8–60s

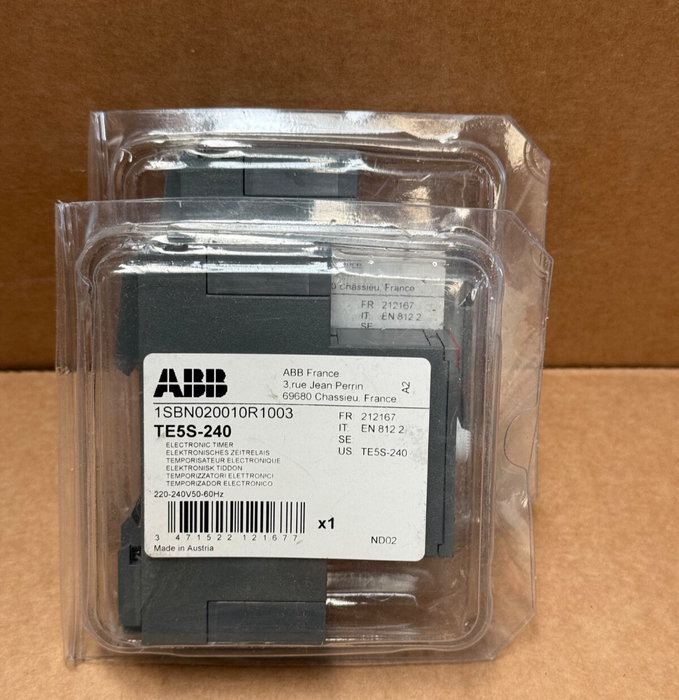

The ABB TE5S‑240 (P/N 1SBN020010R1003) is an electronic star‑delta timer module for motor starters, offering dual stage timing with safety overlap. Designed for DIN‑rail mounting in heavy-duty control panels, it delivers precise delay control, LED status indicators, and robust screw‑terminal connections in a compact 23 mm-wide housing.

Key Specifications

• Model / P/N: TE5S‑240 / 1SBN020010R1003

• Supply Voltage: 220–240 VAC, 48–63 Hz

• Time Ranges: Dual function – 0.8–8 s (t1) or 6–60 s (t1), plus fixed 50 ms transition delay (t2)

• Contacts: 1 NO + 1 NC auxiliary relay output (10 A AC‑15)

• Mounting: DIN‑rail, 23 mm width, screw‑terminal connections

• Indicators: Green (power ON) & yellow/red (relay actuated) LEDs

• Mechanical & Electrical Specs: 720 cycles/h mechanical, IP20 aux terminals, 10 A thermal current

• Weight: ~80 g
