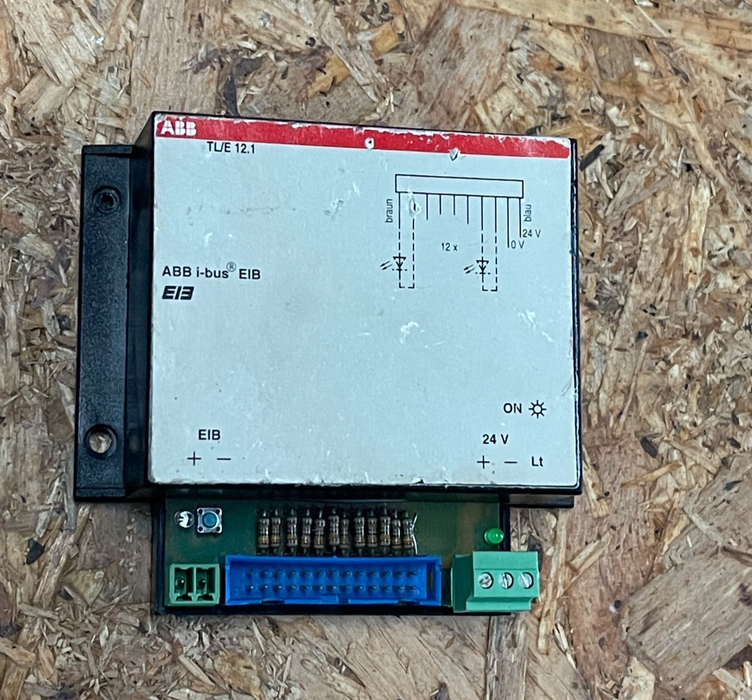

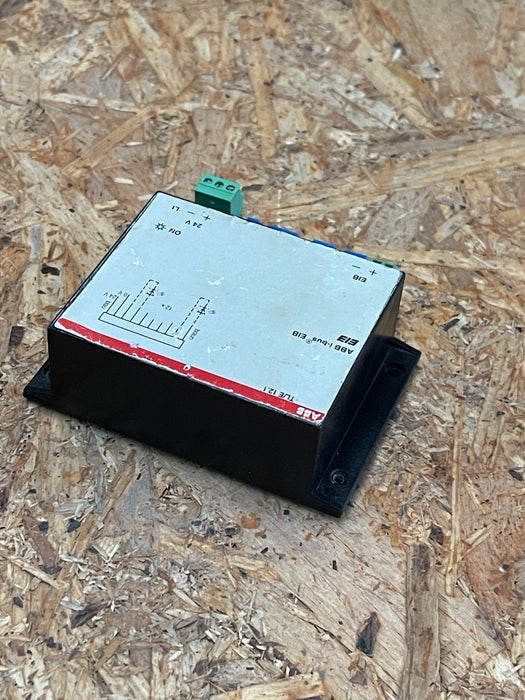

ABB – TL/E 12.1 – EIB LED Tableau Module, 12-Channel, For Standard LEDs

The ABB TL/E 12.1 is an EIB (European Installation Bus) LED tableau module designed to provide visual status indication in building automation and control systems. This module allows connection of up to 12 standard LEDs, each with an internal series resistor dimensioned for optimal diode current. The TL/E 12.1 is used for clear, centralized display of states or alarms in control panels, making it ideal for applications such as room status displays, alarm panels, or process visualization in building management systems.

The module is engineered for integration with ABB i-bus® EIB/KNX systems, ensuring compatibility and reliable operation in modern smart building environments. Each LED output is individually addressable, enabling flexible visualization schemes tailored to the specific requirements of the installation.

Key Features:

• Connects up to 12 standard LEDs for status or alarm indication

• Internal series resistor for each LED, optimized for diode current

• Designed for ABB i-bus® EIB/KNX systems

• Centralized tableau display for building automation

• Compact module for easy panel integration

• Reliable operation in professional building control applications
