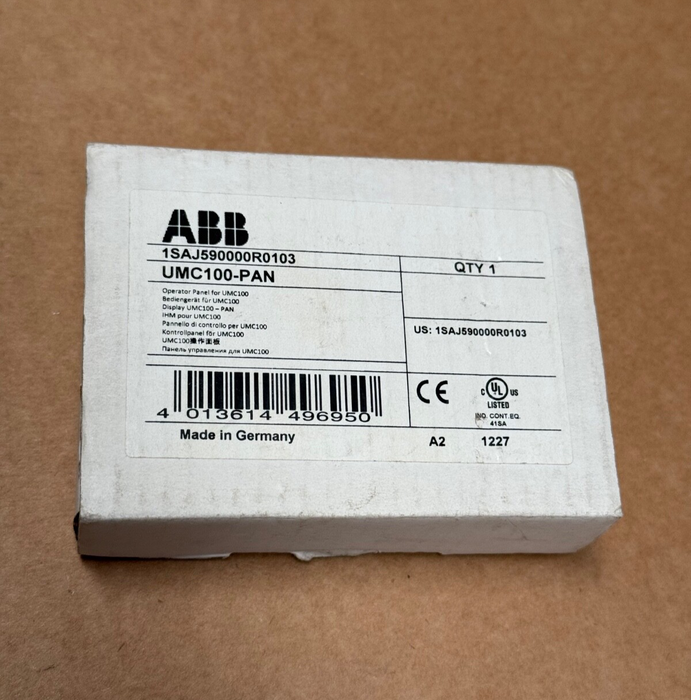

ABB – UMC100‑PAN (1SAJ590000R0103) – LCD Operator Panel with USB for UMC100.3

The ABB UMC100‑PAN (1SAJ590000R0103) is a compact LCD operator panel with USB interface, designed for use with UMC100.3 motor controllers. It can be panel or drawer-mounted, offering convenient monitoring and configuration via local display or PC connection—ideal for motor control and industrial automation setups.

Key Features & Specifications

• Model / P/N: UMC100‑PAN / 1SAJ590000R0103

• Display: Backlit LCD with 6-button navigation & 3 status LEDs

• Connectivity: Built-in USB port for PC connection/configuration

• Mounting Options: Directly mounts on UMC100.3 or on drawer front via UMC100‑CAB cable assembly

• Portability: Snap-mountable for 50 mm width DIN front panels; retractable to 17 mm depth

• Power Consumption: Approximately 0.3 W

• Protection: IP52 front panel rating—resistant to dust and water spray

• Operating Conditions: 0–55 °C ambient; altitude up to 2000 m

• Certifications: IEC/EN 61000‑6‑2 & ‑6‑4 EMC; UL & CSA for IEC 60947‑1/‑4‑1; ATEX-certified with UMC100.3

• Dimensions & Weight: 50 mm × 67 mm × 17 mm; ~0.047 kg
