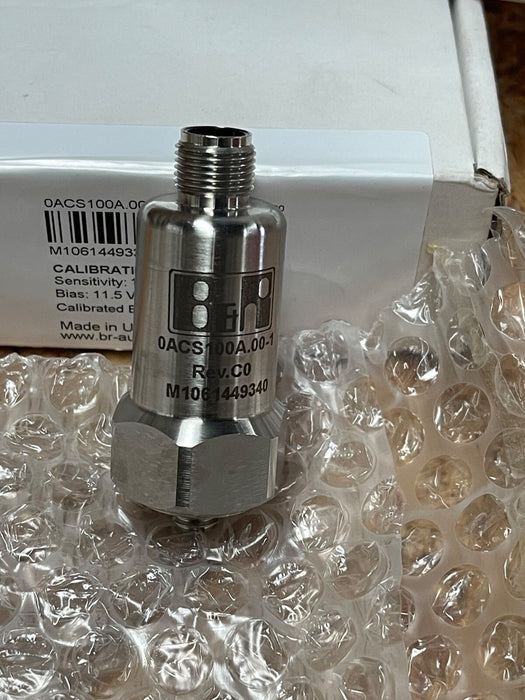

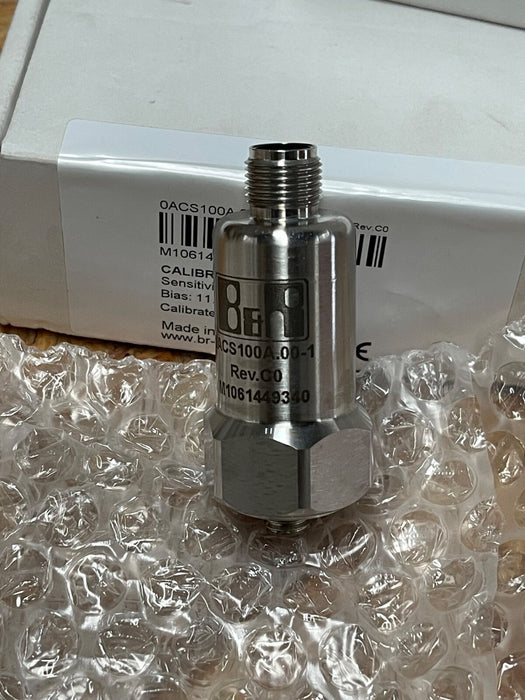

B&R (ABB/B&R) – 0ACS100A.00‑1 – 100 mV/g Top‑Exit Accelerometer Sensor, IP67

The B&R model 0ACS100A.00‑1 is a high-precision accelerometer designed for the X20 and ABB platforms, providing vibration monitoring with a top-exit M12 connector. Ideal for machinery diagnostics and condition-based maintenance, it delivers accurate measurements in rugged environments with high reliability and stability across extreme temperatures.

Key Features:

• Model: 0ACS100A.00‑1, Accelerometer, top‑exit

• Sensitivity: 100 mV/g nominal (±10%)

• Frequency Response: 2 Hz – 10 kHz (±5%), extended 0.8 Hz – 15 kHz (±3 dB)

• Range: ±50 g; resolution 0.2 mg; noise ≤10 µg/√Hz @ 10 Hz

• Power: 10–12 V DC, consumption 0.5–8 mA; 200 Ω output impedance

• Connector: M12‑4 pin top-exit

• Housing: Stainless steel, IP67 sealed, shock rated 5000 g, temperature rated −55 °C to +140 °C

• Mounting: Pre‑assembled M8×1.25 bolt, includes extended bolt for mounting

• Certifications: EM immunity EN 61000‑6‑2; emissions EN 61000‑6‑4
