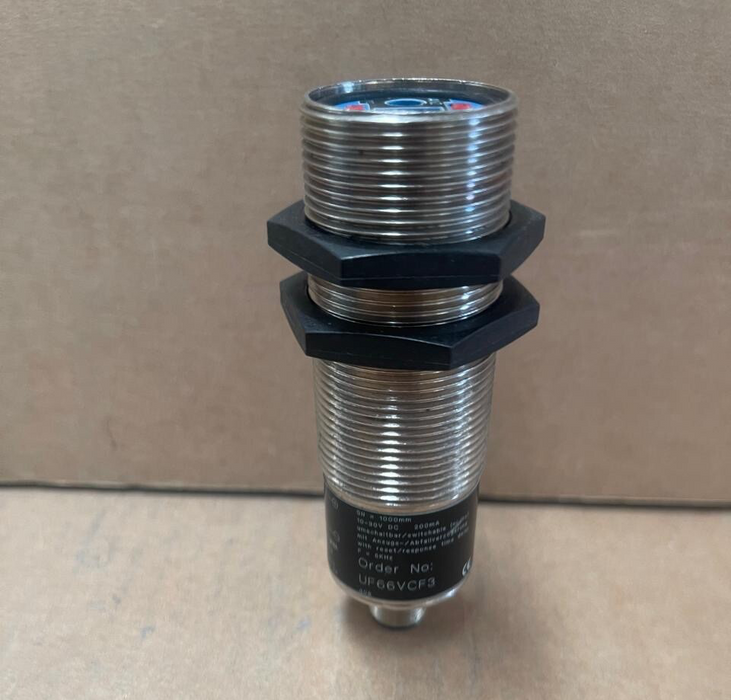

Wenglor - UF66VCF3 - Fiber-Optic Amplifier, 10–30 V DC, PNP Output, 1000mm Range
The Wenglor UF66VCF3 is a high-performance fiber-optic amplifier designed for precise detection tasks in industrial automation. It is adaptable for use with glass fiber-optic cables but can also operate without them, making it versatile for various applications. The sensor evaluates transmitted light reflected back from objects, switching the output when an object passes within the selected range. Bright objects reflect more light than dark ones, allowing for detection at greater distances.
Key Features:
Detection Range: Up to 1000 mm
Switching Frequency: 5 kHz
Response Time: 100 µs
Output Type: PNP, NO/NC switchable
Supply Voltage: 10–30 V DC
Current Consumption: < 40 mA (at 24 V)
Light Source: Infrared
Adjustable On-/Off-Delay: 0–1 s
Temperature Range: -10 to +60 °C
Protection Class: IP65
Housing Material: Nickel-plated brass
Connection: M12 × 1; 4-pin
Weight: 138 g
Short Circuit, Reverse Polarity, and Overload Protection: Yes
Applications:
Detection of small parts in assembly lines
Presence detection in packaging systems
Positioning tasks in material handling
Quality control in manufacturing processes
