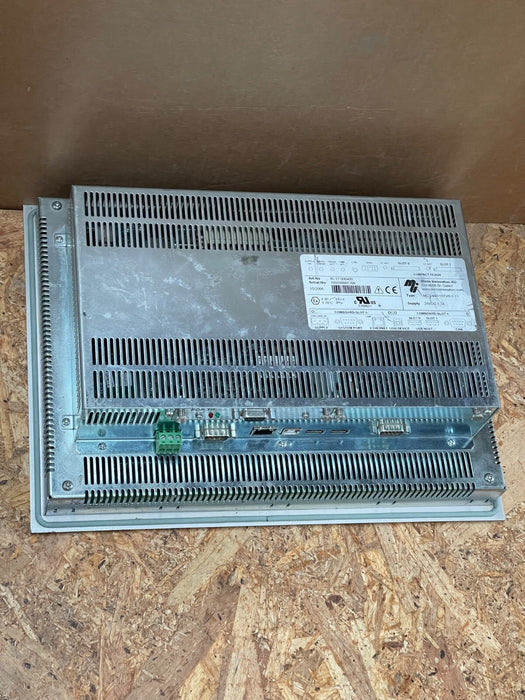

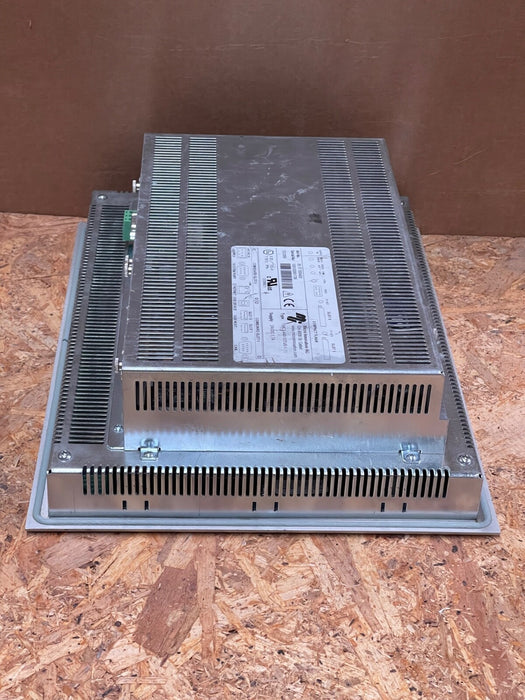

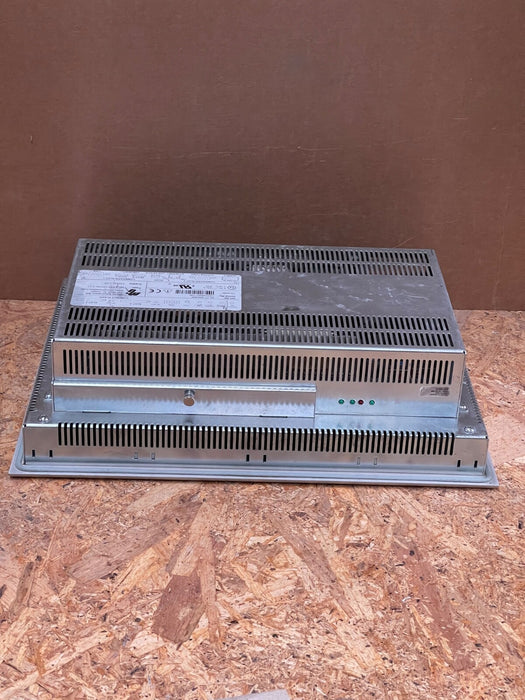

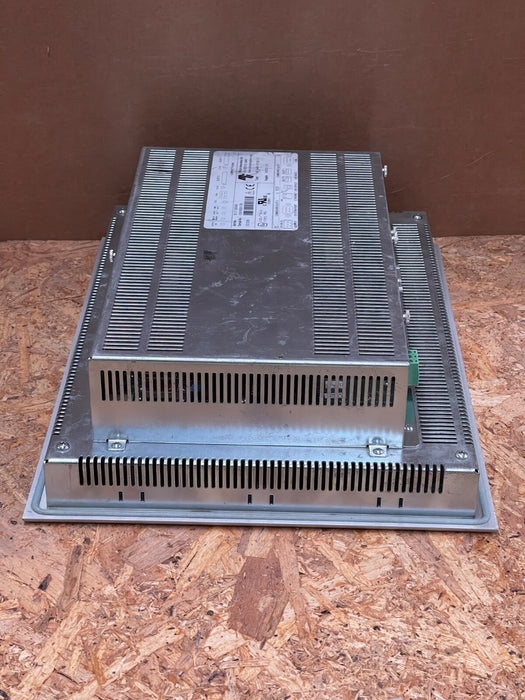

Eaton/Micro Innovation – MC2‑440‑10TVB‑1‑11 – 10.4″ Infra‑Red Touch HMI

Main Features

• Manufacturer & Model: Eaton (Micro Innovation) MC2‑440‑10TVB‑1‑11 HMI touch panel

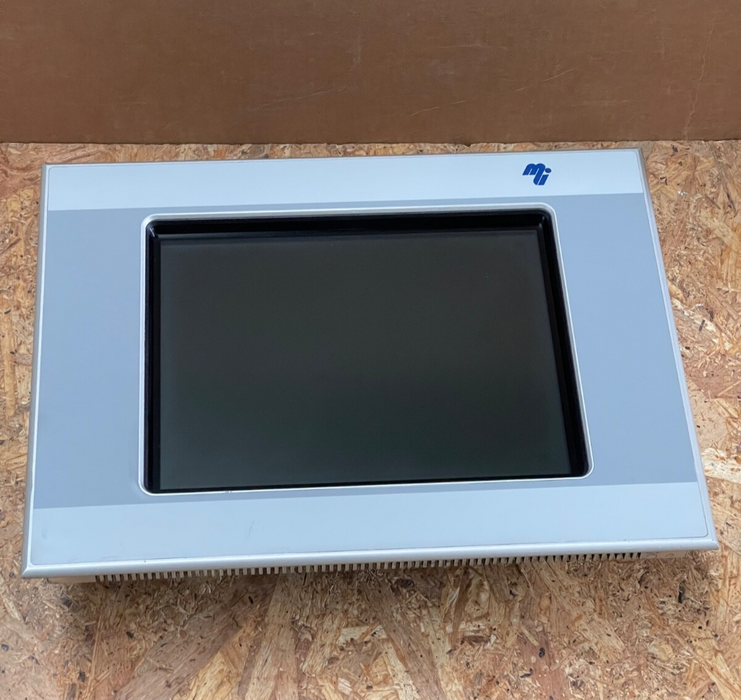

• Display: 10.4″ full‑color TFT with infra‑red touch technology (XV‑440‑equivalent series), VGA resolution (640 × 480), 350 cd/m² brightness, CCFL or LED backlight

• Processor & Memory: 400 MHz RISC CPU; includes 64 MB DRAM, ~1.5 MB flash (user space), and NVRAM for system settings

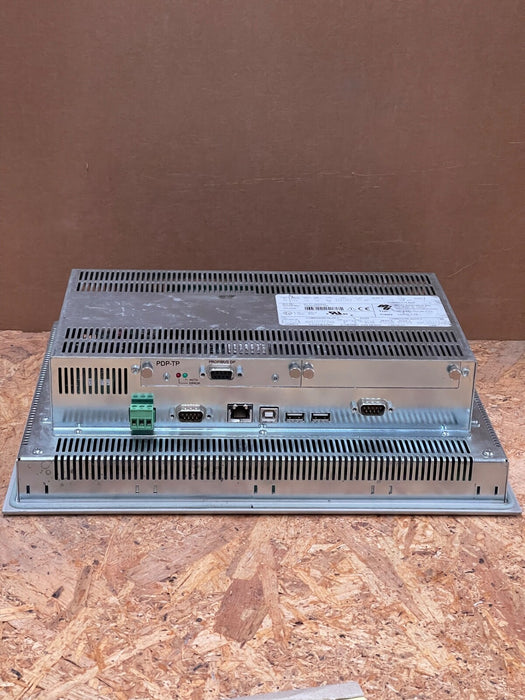

• Interfaces & Connectivity:

  • Ethernet 10/100 BASE‑TX

  • RS‑232 system port

  • CAN (electrically isolated)

  • USB host & device ports; CompactFlash slots for OS and programs

• Power & Physical Specs:

  • Input: 24 V DC (20.4–28.8 V), typical consumption: ~14–18 W, inrush <3 A; built‑in fuse and reverse‑polarity protection

  • Dimensions: 345 × 255 × 90 mm; weight ~4.1–4.5 kg

• Mounting & Ruggedness:

  • Designed for horizontal panel mount; IP65 front panel (with proper bracket); rear enclosure IP20

  • Vibration compliant to IEC 60068‑2; operates at 0–50 °C; ATEX zone‑22 dust certification (stainless‑steel front optional)

• Software & Functionality:

  • Supports HMI and optional PLC logic (with Eaton licenses)

  • Expandable communications (Modbus, ProfiBus, etc.) via installable modules
