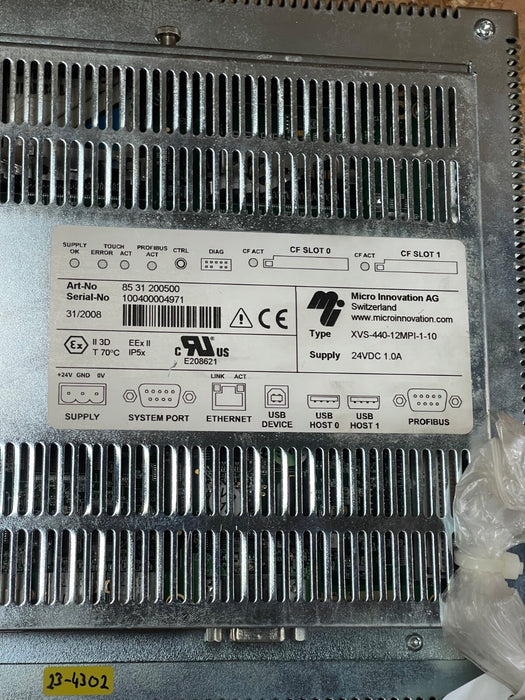

Eaton/Micro Innovation – XVS‑440‑12MPI‑1‑10 – XVS400 Series 12.1″ Infrared Touch

Main Features

• Series & Model: Part of the XVS400 line (model code 139975) – 12.1″ infrared (i/r) touch panel with TFT color display

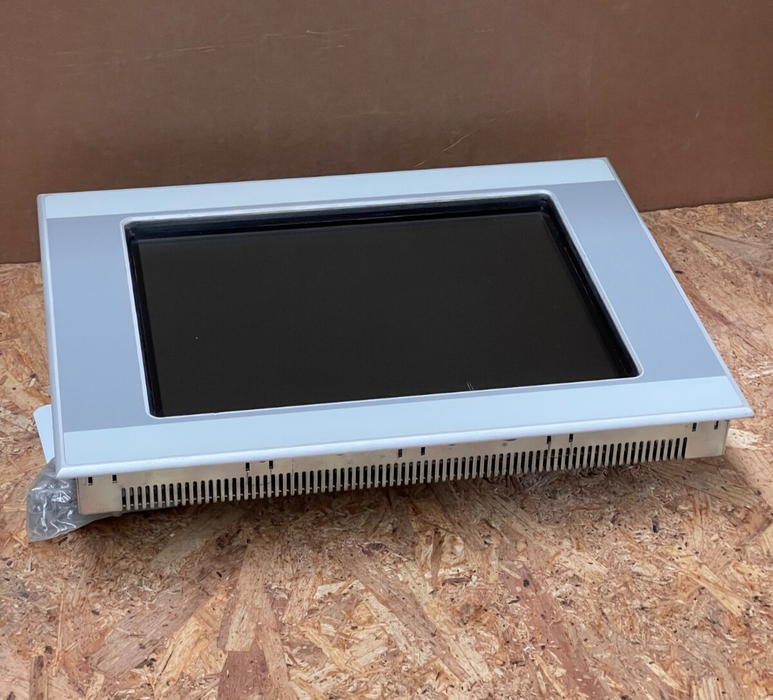

• Display: 12.1″ SVGA TFT (800 × 600) with infrared touch matrix — robust and durable; typical touch life >1 million actuations

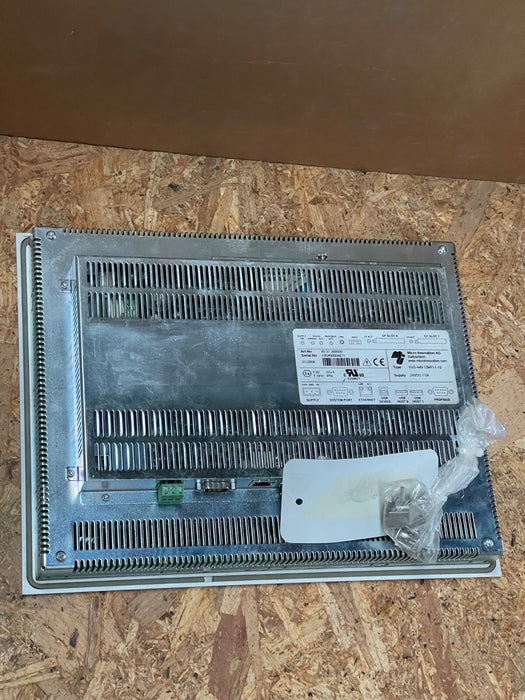

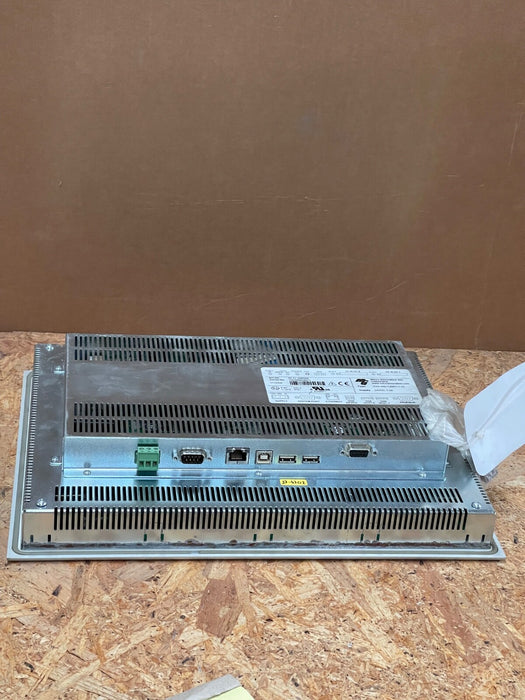

• Integrated Connectivity:

  • Ethernet 10/100 BASE‑TX

  • RS‑232 serial port

  • Profibus DP and MPI fieldbus

  • USB: 2× USB host, 1× USB device

• Additional Interfaces:

  • Two CompactFlash slots for OS, projects, and logging

• Front Panel:

  • Flush-mounted metal bezel with laminated safety glass; rated IP65 front

• Power Requirements: 24 V DC input (hot-pluggable)

• Operating Environment:

  • Temperature: typically –10 °C to +60 °C (touch glass)

  • Storage: –20 °C to +70 °C

• Software & Licensing:

  • Windows CE OS; PLC runtime available via optional license

  • Supports modular communication upgrades
