Main Features

Manufacturer: Omron (SysDrive 3G3MV series)
Model/MPN: 3G3MV‑A2040
Power Rating: 4.0 kW motor output, 24 A nominal (200–230 V three-phase input)
Input Voltage: 200–230 V AC (±15%); compatible with 50/60 Hz across single- or three-phase supply
Control Modes: Open‑loop vector control and V/f control; selectable operation for optimized motor management
Built‑in PID & Communications: Integrated PID controller; standard Modbus RS‑485; expandable to DeviceNet via optional module
User Interface: Intuitive digital operator with LEDs and potentiometer; functions include quick-start setup and diagnostics
I/O Capacity: Up to 6 multifunction digital inputs, 3 multifunction digital outputs, plus analog I/O and encoder/pulse I/O
Overload & Protection Ratings: 150% torque at 1 Hz, high-speed current limiting, built-in EMC compliance; NEMA 1 and 4X variants available
Enclosure Options: Compact module; dimensions approximately 260 × 180 × 170 mm (H × W × D)
Typical Applications: Ideal for pumps, fans, conveyors, and machinery requiring energy-efficient speed control and flexible integration.

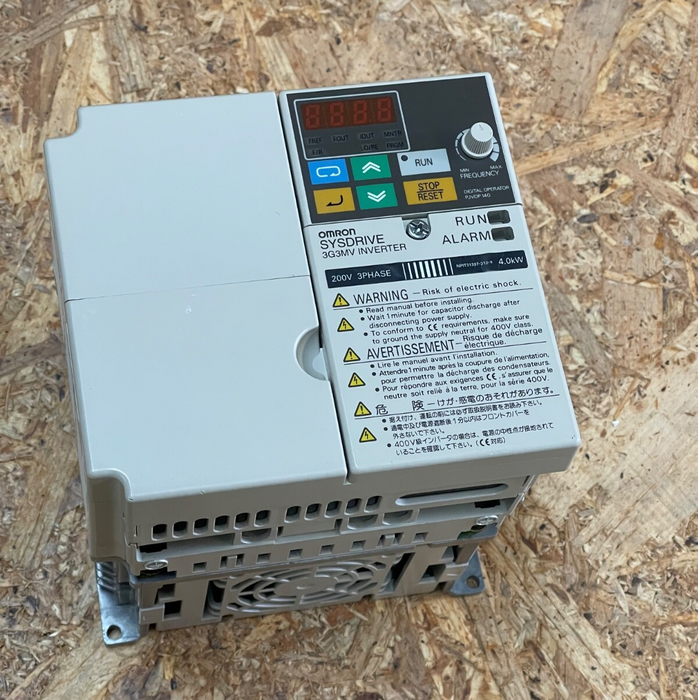

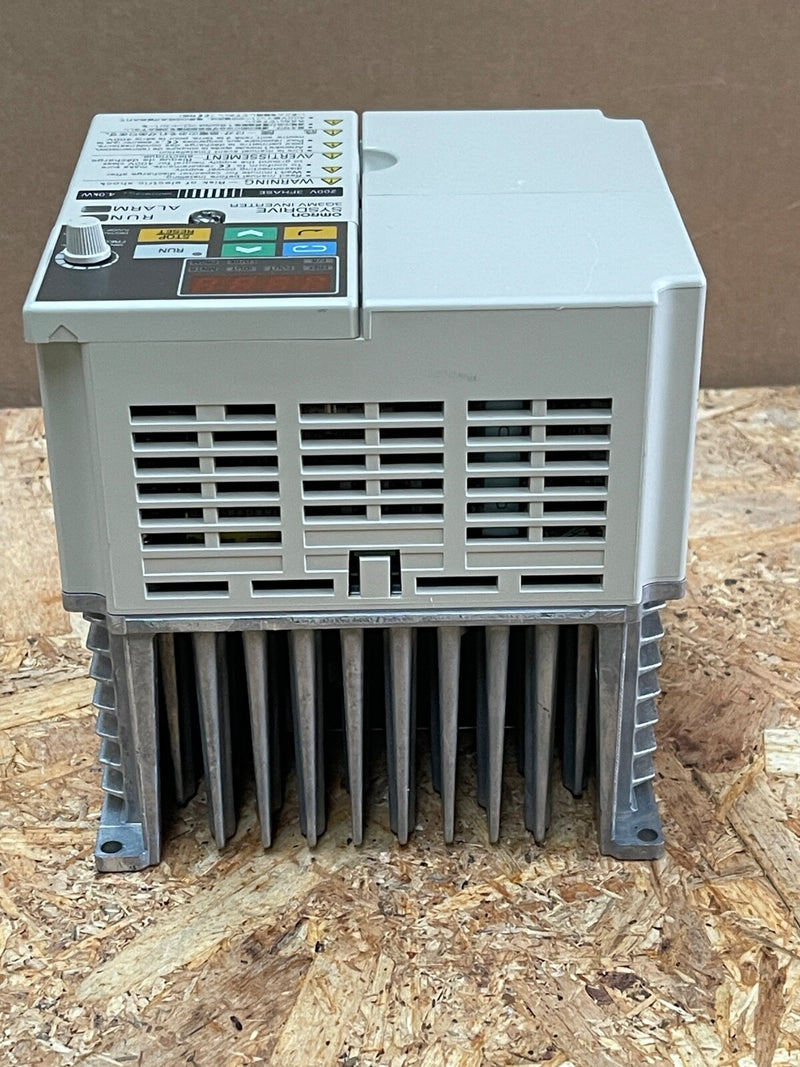

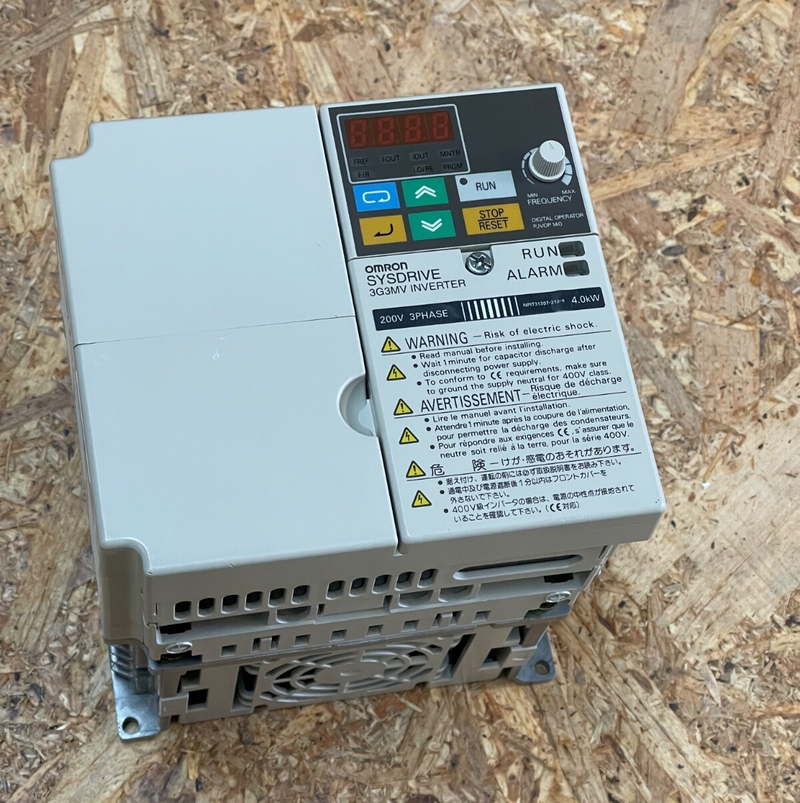

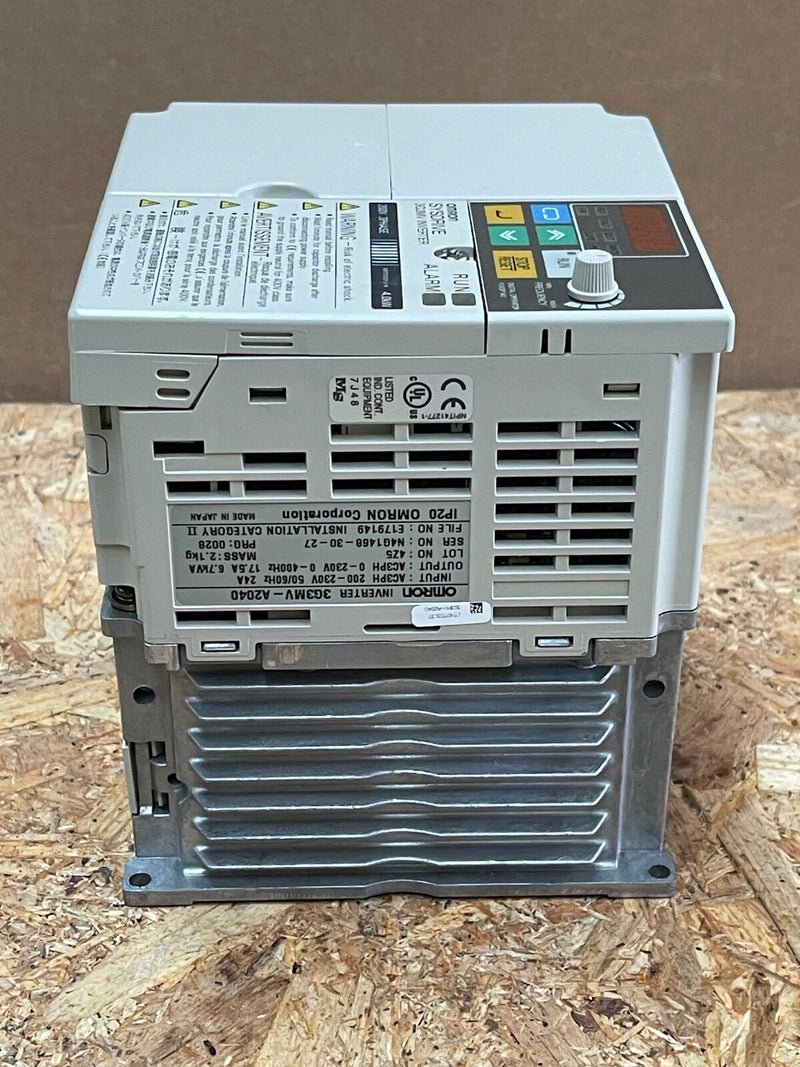

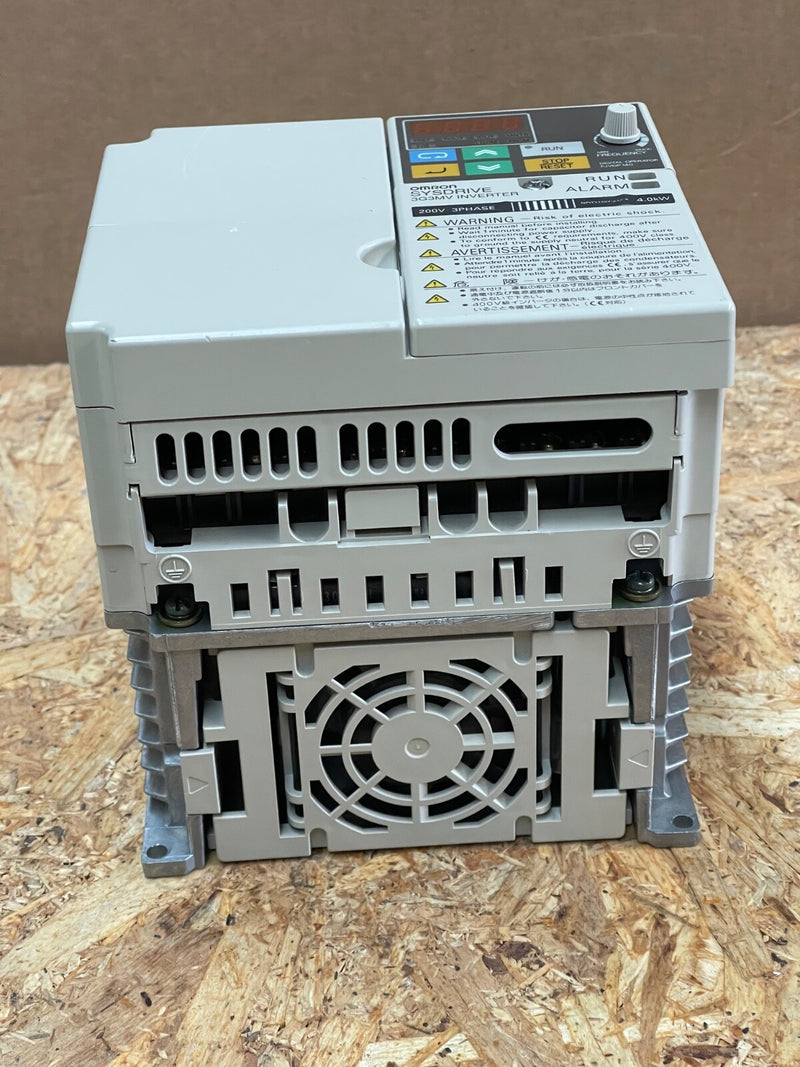

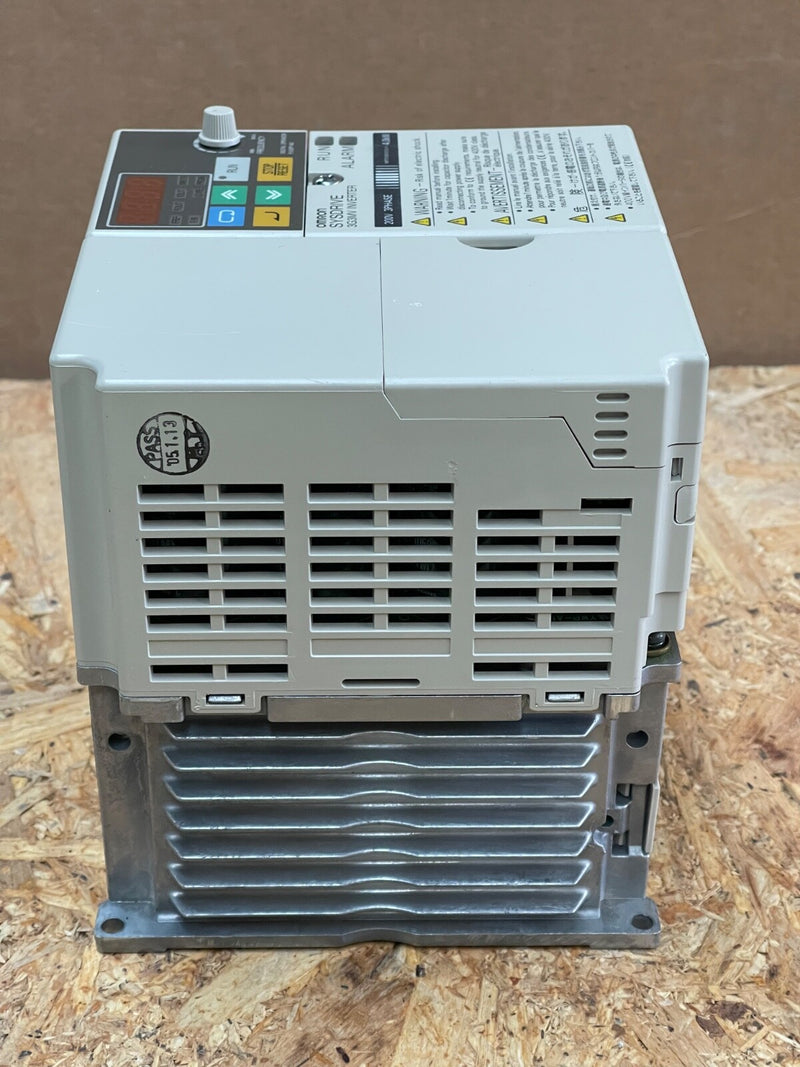

Omron – 3G3MV-A2040 – SysDrive 3G3MV Compact Inverter, 4.0 kW, 200–230 V, 24 A
