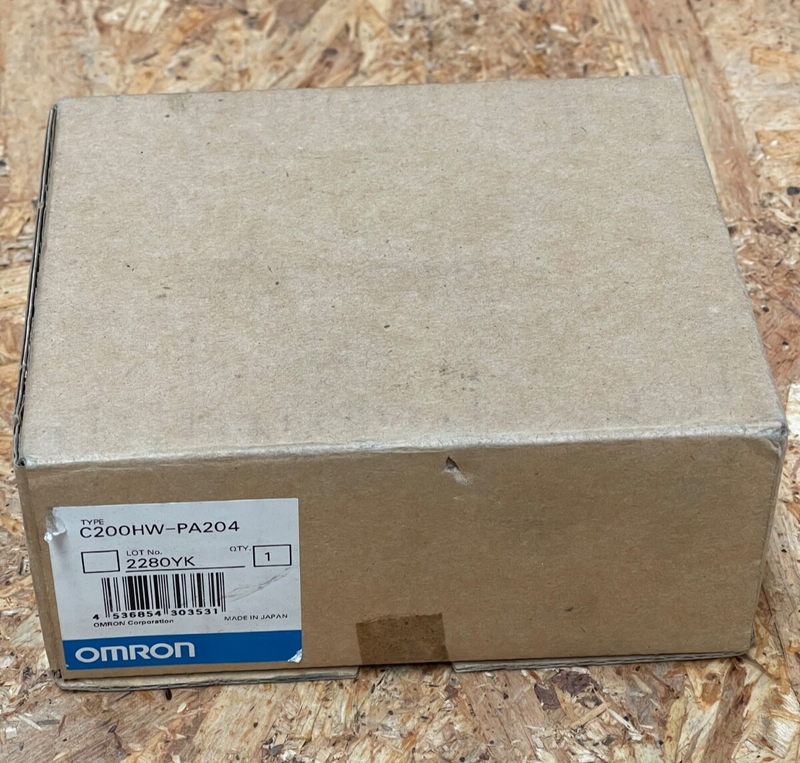

Omron – C200HW‑PA204 – AC 100–120/200–240 V Backplane Power Supply Module, 30 W

The Omron C200HW‑PA204 is an AC backplane power supply module designed for the SYSMAC C200H and CS1 PLC systems. It accepts a wide input voltage range from 100–120 VAC or 200–240 VAC (85–132 VAC / 170–264 VAC operational), delivering stable DC power to backplane-mounted CPUs, I/O units, and network modules.

Key Features:

• Model: C200HW‑PA204

• Input Voltage: 100–120 VAC / 200–240 VAC, 50/60 Hz (operational range 85–264 VAC)

• Output: 5 V DC at 4.6 A and 26 V DC at 0.6 A — 30 W total capacity

• Power Consumption: Max 120 VA

• Terminals: Screw-type terminals support secure connections

• Protection & Ratings:

  • Inrush current limiting, insulation, noise suppression

  • IP30 rated enclosure, operating 0–55 °C

  • Certifications: CE, UL, CSA, Lloyd’s, NK

• Mounting Form Factor: DIN-rail/backplane module; dimensions ~54 × 130 × 100 mm; weight ≈ 0.5 kg
