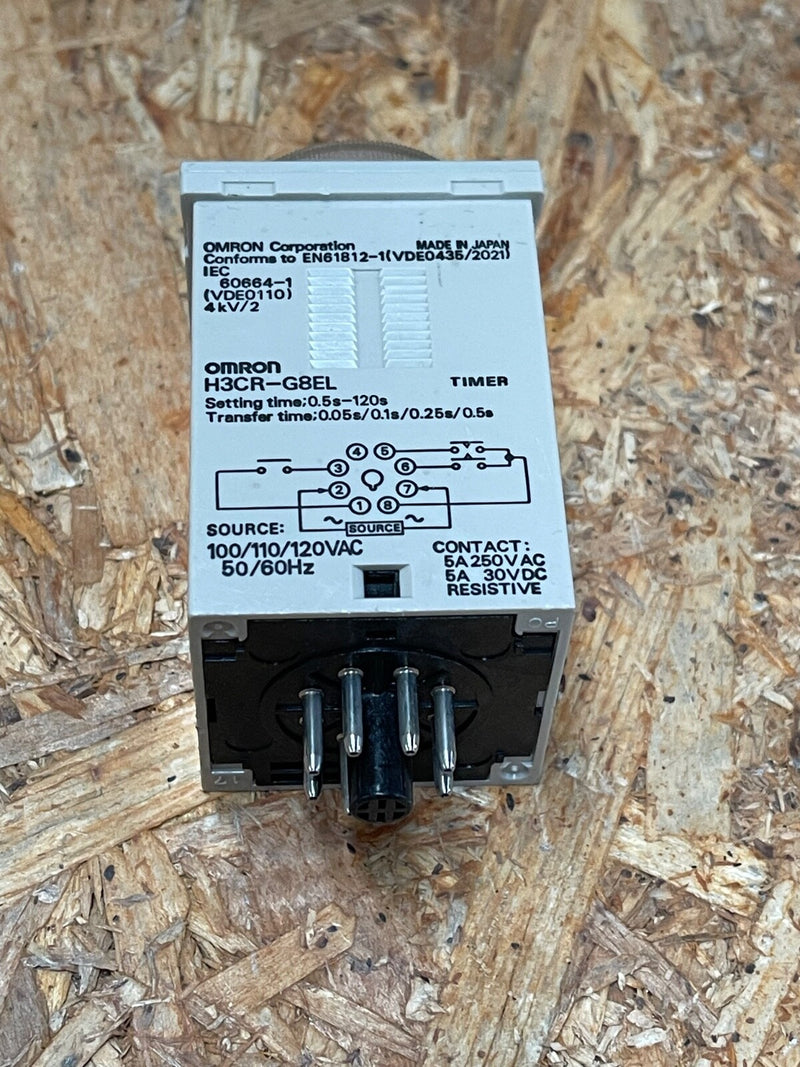

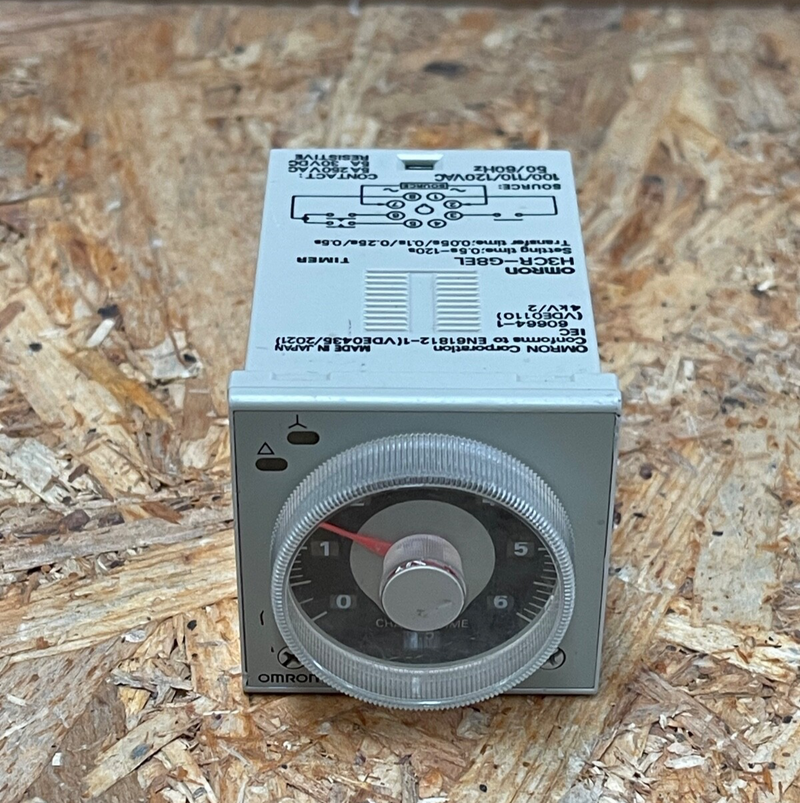

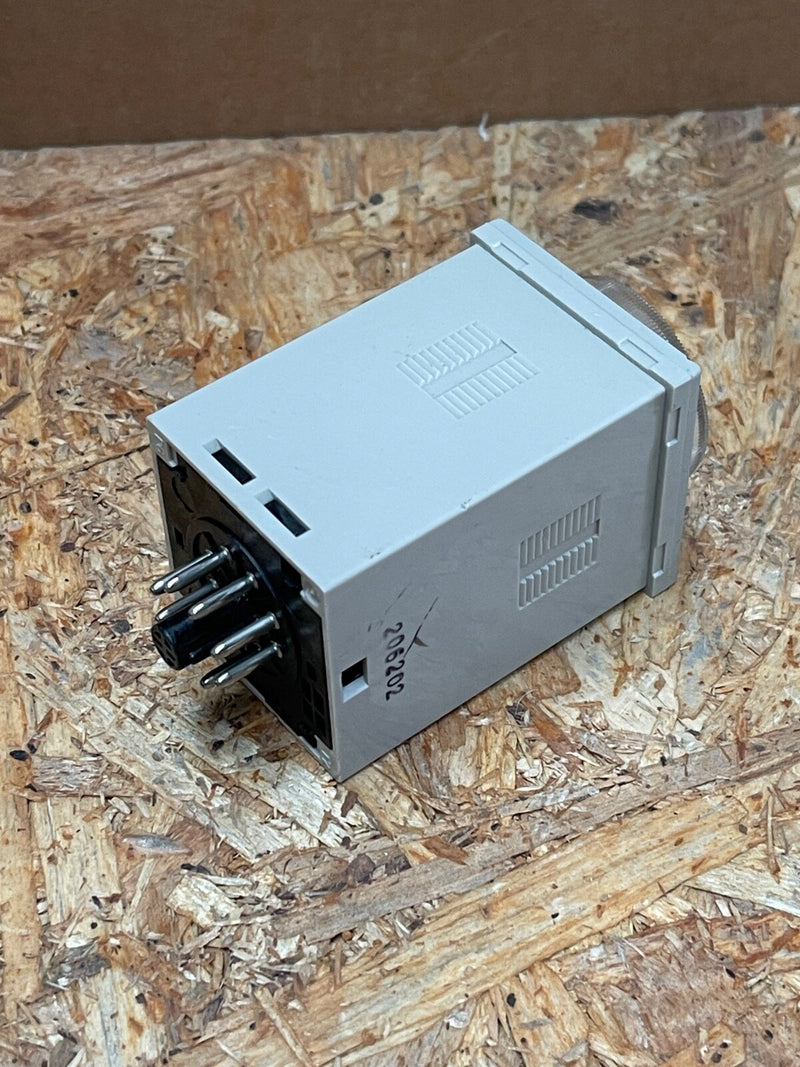

Omron – H3CR‑G8EL – 48 × 48 mm Star‑Delta Timer with Instantaneous Output

The Omron H3CR‑G8EL is an 8‑pin, solid‑state star‑delta motor start timer featuring a built‑in instantaneous relay contact. It supports independent star and delta timing with selectable motor control ranges, and includes an extra instantaneous output for process synchronization. With a robust 200–240 VAC supply and 5 A rated outputs, this timer is ideal for industrial motor control panels and sequenced starting applications.

Key Features:

• Model / P/N: H3CR‑G8EL (8‑pin, with instantaneous contact)

• Supply Voltage: 200–240 VAC, 50/60 Hz (range 85–110% of rated)

• Timer Functionality:

  • Star operation time: Selectable scales: 0.5–6 s, 1–12 s, 5–60 s, 10–120 s

  • Star-delta transfer time: Adjustable: 0.05 s, 0.1 s, 0.25 s, 0.5 s, 0.75 s, 1.0 s

• Outputs:

  • SPST‑NO for star circuit

  • SPST‑NO for delta circuit

  • Additional SPST‑NO instantaneous contact

  • Contact rating: 5 A @ 250 VAC resistive load

• Accuracy & Performance:

  • Operating accuracy: ±0.2% FS

  • Setting error: ±5% FS ±50 ms

  • Electrical life: ≥100,000 operations @ 5 A resistive

• Power Consumption: Approx. 12 VA at 240 VAC (3 W)

• Environmental Specs:

  • Ambient temp: –10 °C to +55 °C, humidity 35–85% RH

  • Vibration: 10–55 Hz, 0.5 mm; Shock: up to 980 m/s²

• Mounting: DIN-panel or surface mount; compatible with P2CF-08 sockets and flush adapters (e.g., Y92F‑30)

• Certifications: UL508, CSA, NK, Lloyd’s, CCC, EN61812‑1, IEC60664‑1 with 4 kV insulation

• Physical Dimensions: Approx. 48 × 48 × 63.7 mm; Weight ~130 g

• Socket: 8‑pin round DIN socket P2CF‑08 or screw terminal P3G‑08
