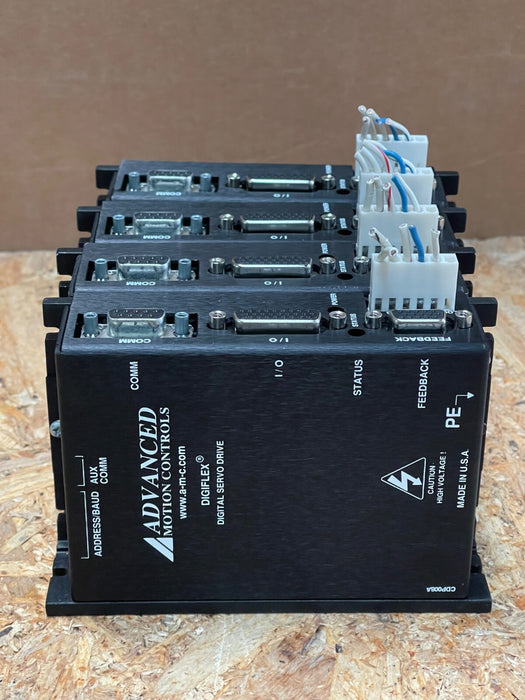

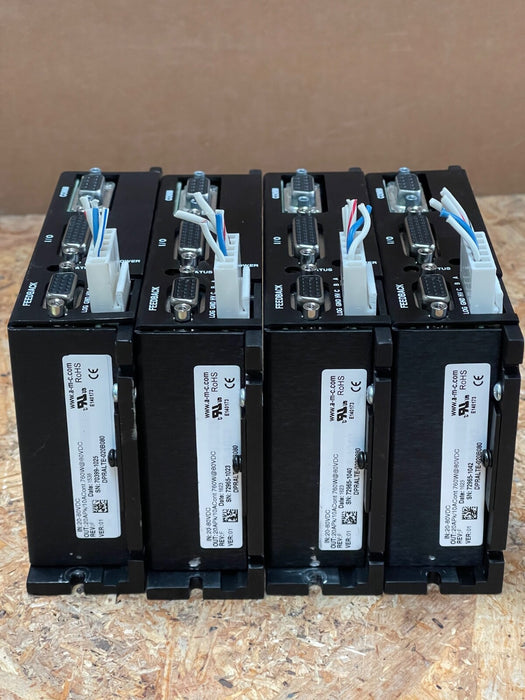

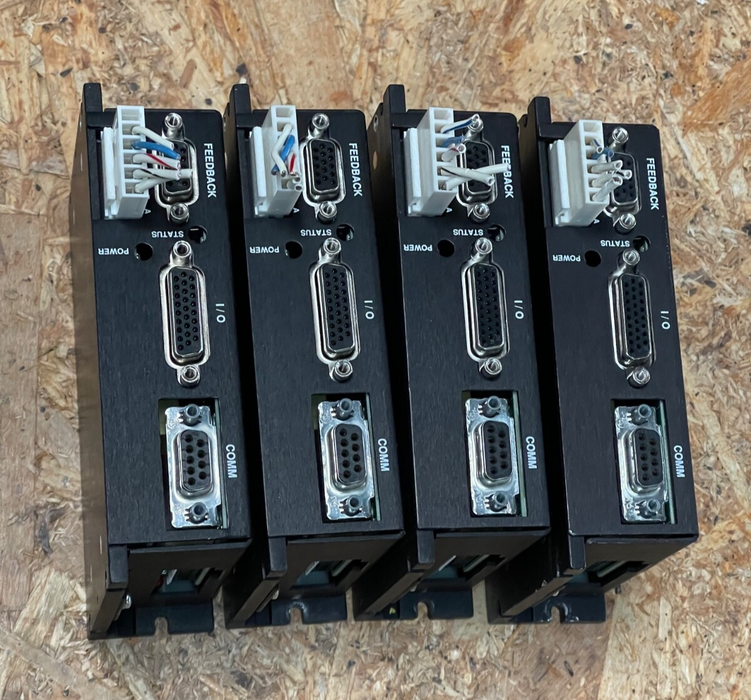

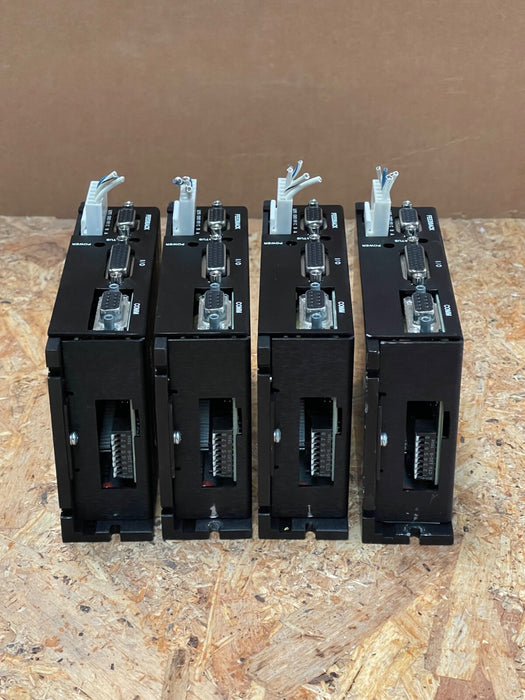

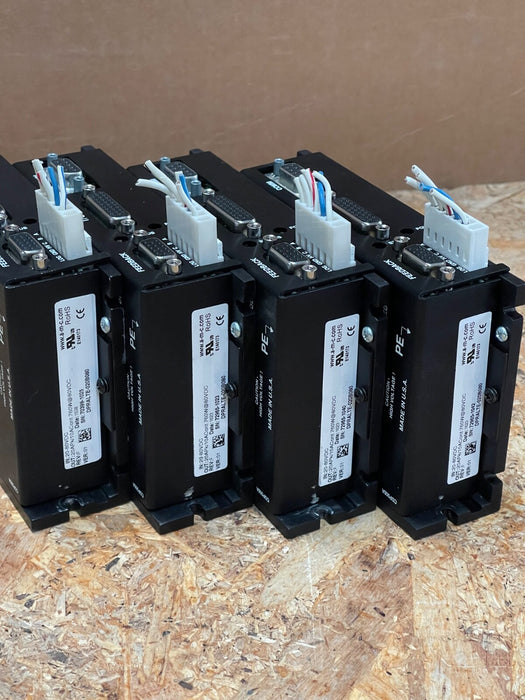

Advanced Motion Controls – DPRALTE‑020B080 – DigiFlex® Performance™

The Advanced Motion Controls DPRALTE‑020B080 is a compact, panel-mount DigiFlex® Performance™ servo drive offering full control over torque, velocity, and position loops for brushed or brushless motors. Featuring Space Vector Modulation (SVM) for optimal efficiency and thermal performance, it supports RS‑485/232 or Modbus RTU communication and is configured with DriveWare® 7 PC software. The drive is designed for both distributed and centralized automation environments, enabling precise motion control with programmable I/O and non-volatile parameter storage.

Key Features:

• Model: DPRALTE‑020B080 (10 A continuous, 20 A peak)

• Brand: Advanced Motion Controls (DigiFlex® Performance™ series)

• Operating Voltage: 20–80 V DC

• Current Rating: 10 A continuous, 20 A peak

• Modulation: Space Vector Modulation (SVM) for efficient power use

• Communication Protocols: RS‑485/232 or Modbus RTU; configurable via DriveWare® 7

• Motion Modes: Torque, velocity, and position control with embedded motion engine for PID/autonomous motion

• I/O: Programmable digital and analog inputs/outputs for external interfacing

• Dimensions: 132.5 × 89.5 × 35.9 mm; weight ~486 g
