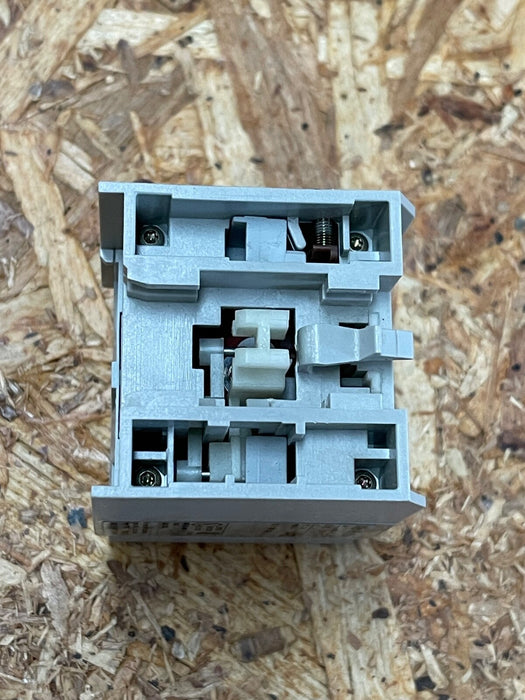

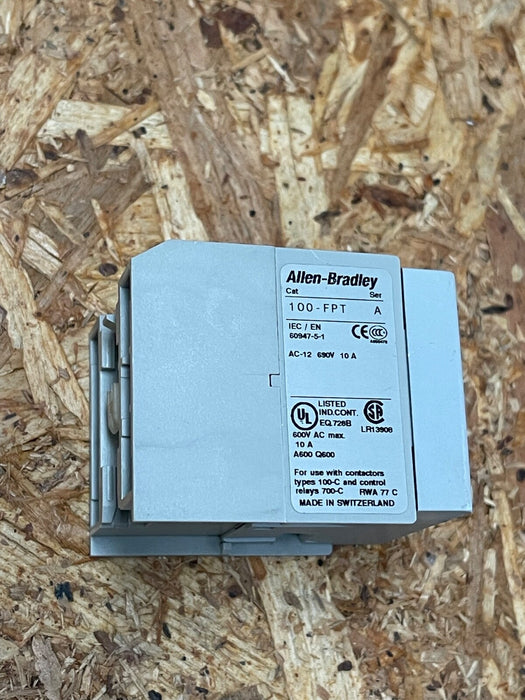

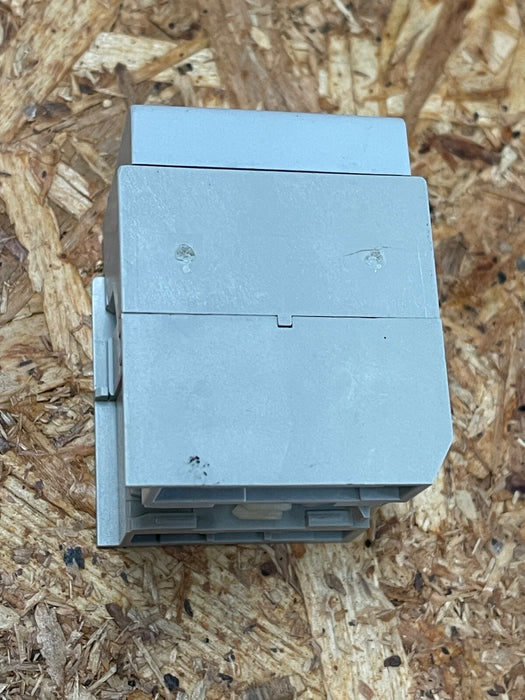

Allen Bradley – 100‑FPT – Pneumatic Off‑Delay Timing Module (0.3–30 s)

Main Features

• Manufacturer: Allen Bradley (Rockwell Automation)

• Model: 100‑FPT/B (sometimes styled 100‑FPTB30)

• Device Type: Pneumatic timing module designed for off‑delay functions, compatible with Allen Bradley 100‑C, 104‑C, 700‑CF contactors and control relays

• Timing Range: 0.3 to 30 seconds adjustable via pneumatic control port

• Pneumatic Operation: Uses controlled air/vacuum release to determine timing cycles and switch logic

• Mounting: Snap-in accessory module that integrates directly into 100‑C-series and 700‑CF relay/contactors

• Status: Active product, non-repairable; dimensions ~5×5.8×6.8 cm, weight ~93 g
