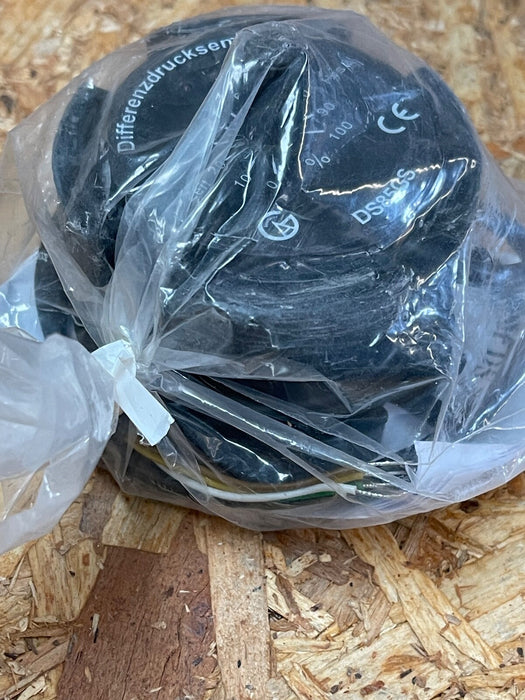

Arthur Grillo – DS85GS – Differential Pressure Sensor, 0–6 kPa, 24 V, Analog

Main Features

• Manufacturer & Model: Arthur Grillo GmbH – DS85GS differential pressure sensor

• Measuring Range: Configurable from 0…50 Pa up to 0…6000 Pa (0–6 kPa)

• Output Signals:

  • Analog: 0–10 V (with 12–30 V supply) or 4–20 mA (depending on unit)

  • Built-in limit switch: Open-collector output (max 50 mA) usable for driving external relay

• Adjustments & Indicators:

  • Front-panel potentiometers for hysteresis and time delay settings

  • LED status indicator for switch activation

• Display Option: 3-digit LCD display (on GS variant) showing measured differential pressure

• Electrical Specs:

  • Supply: 24 V AC/DC

  • Cable: pre-wired 440 – 490 mm, color-coded for 2/3/4-wire options

• Environment & Construction:

  • Protection class: IP65

  • Ambient range: –10…+50 °C
