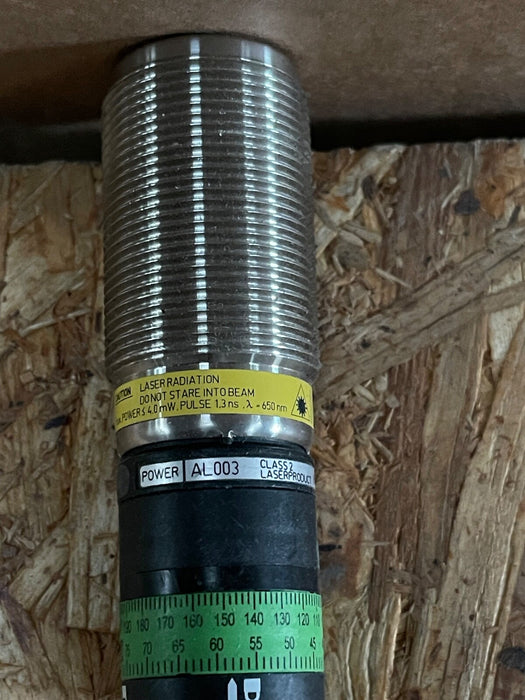

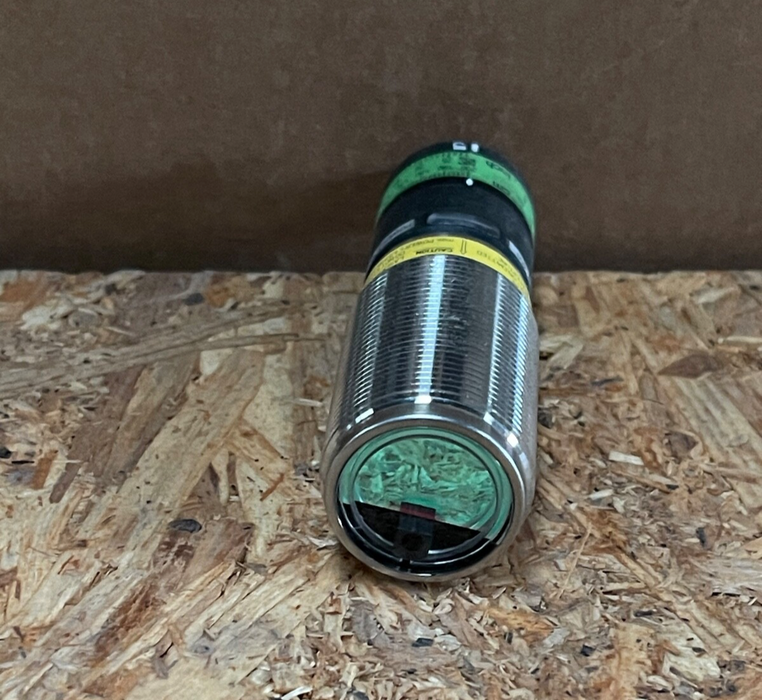

autosen - AL003 - Laser Distance Sensor, 0.03–2 m, M30x1.5 Thread, IO-Link

The autosen AL003 is a compact laser distance sensor designed for precise object detection and distance measurement in industrial automation applications. Utilizing PMD (Photonic Mixer Device) time-of-flight technology, it offers reliable performance with background suppression and color-independent detection, making it suitable for various challenging environments.

Key Features:

• Model: AL003

• Brand: autosen

• Sensor Type: Diffuse reflection sensor with background suppression

• Sensing Range: 0.03 to 2.0 meters

• Output Configuration: Antivalent PNP switching output

• Switching Frequency: 11 Hz

• Light Source: Visible red laser, Class 2

• Operating Voltage: 10–30 V DC

• Current Consumption: Max. 75 mA

• Interface: IO-Link compatible

• Housing Material: V4A stainless steel

• Protection Rating: IP65/IP67

• Ambient Temperature Range: -25°C to +60°C

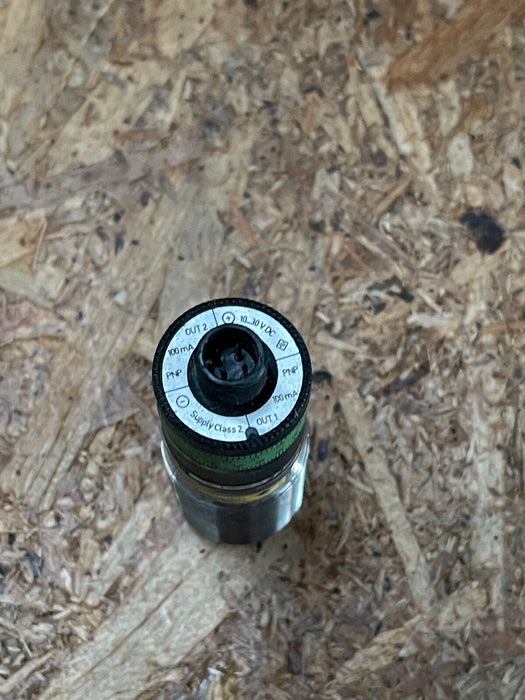

• Connection: M12 connector, 4-pin

• Dimensions: M30 x 1.5 thread, 100 mm length

• Display: LED indicators for power and switching status

• Adjustment: Manual switch point setting via setting ring with scale

• Applications: Ideal for object detection, positioning, and distance measurement in automation systems, including material handling, packaging, and assembly lines
