Autostart – AS705SKD – DIN‑92 Generator Controller with Keyswitch

The AS705SKD (stock code 76.70.0065) is a front-panel generator controller mounted in a DIN 92 × 92 mm opening. Featuring a keyswitch (Off/Auto/Manual), it offers full control of standby generator or pump sets. With 17 LEDs (10 preset, 5 programmable, plus Auto/Manual indicators), it provides comprehensive monitoring and fault annunciation. It supports RS-232 connectivity for PC-based configuration and includes two 15‑pin terminal blocks at the rear for inputs, outputs, and communication.

 Key Features

• Model / P/N: AS705SKD – part of the AS7XX Murphy family

• Electrical Supply: 5–40 VDC (continuous), withstands 0 V for ≤100 ms cranking

• Mounting: Front-panel via DIN 92 mm cut-out; rear depth ~162 mm, weight ~650 g

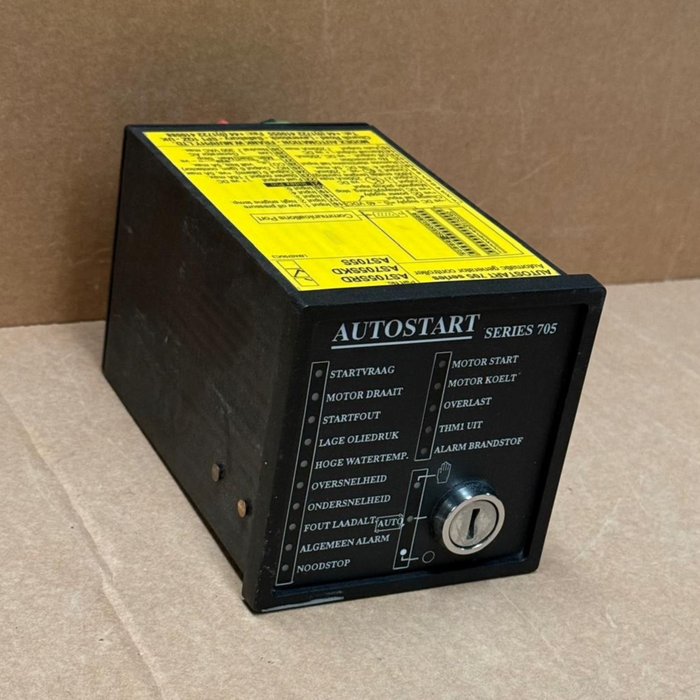

• Control Interface: Keys (Off/Auto/Manual) with LED status indicators (up to 17 LEDs)

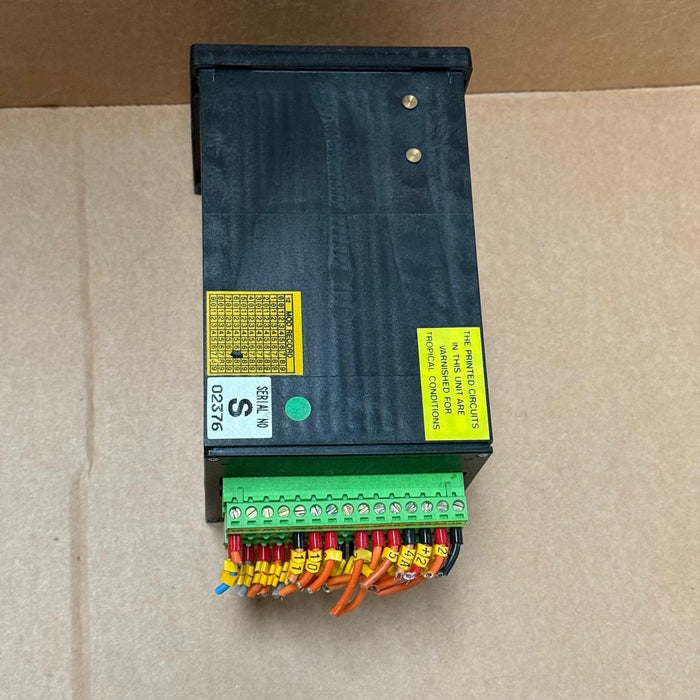

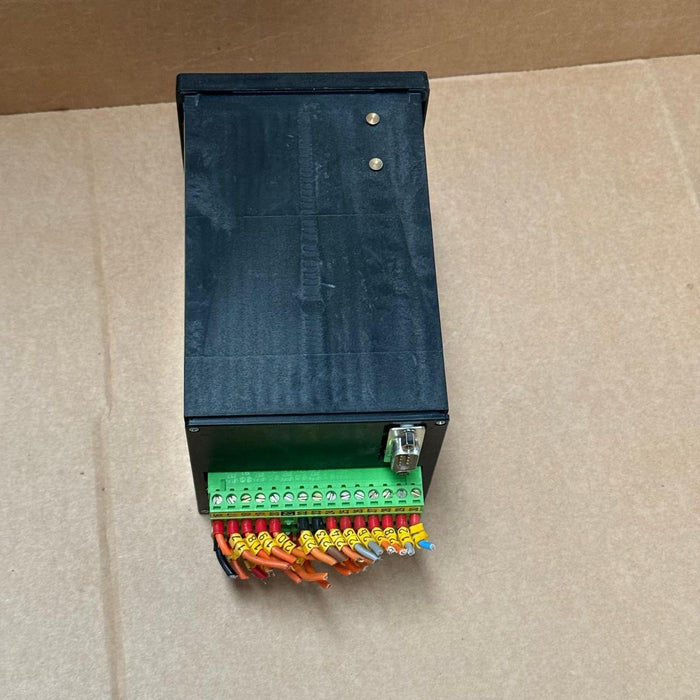

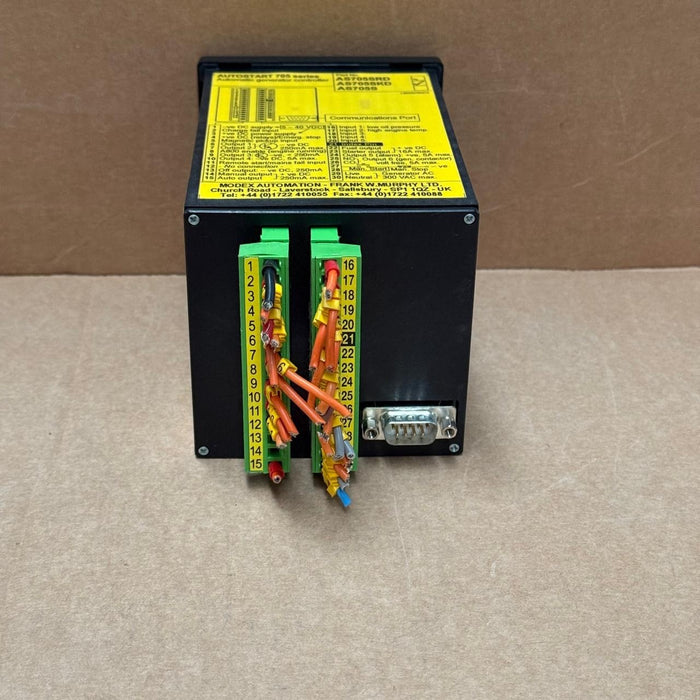

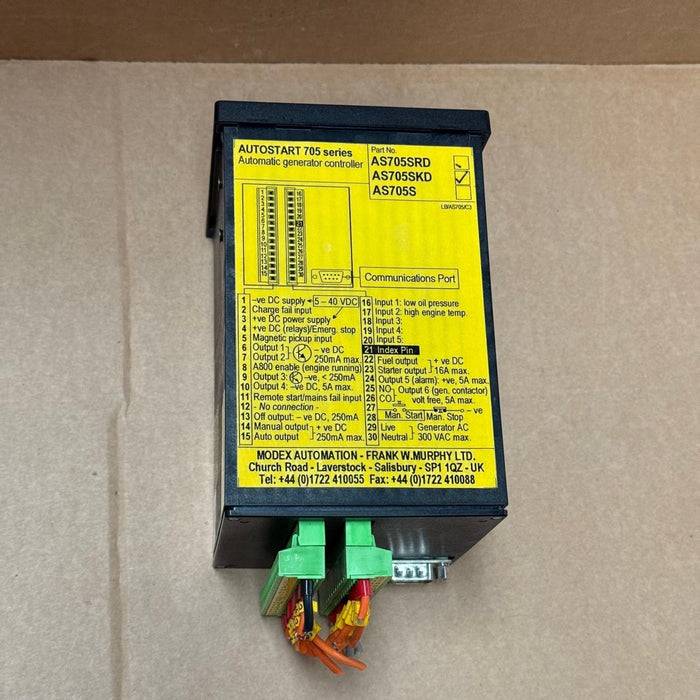

• I/O Connectors: Two-part screw terminal blocks with 30 points for DC inputs, generator sensing, relays, etc. ()

• Communication: RS‑232 port compatible with Murphy AS7CK PC programming software

• Programmable Features: Over 50 adjustable parameters, including timers, trip thresholds, and custom LED indicators
