Aventics (Nimak) – R414002965 – ED05 Series Proportional Pressure Control Valve

The Aventics ED05 series offers precise pneumatic pressure regulation via a direct-acting proportional valve. The valve (R414002965) provides controlled air flow up to 11 bar, ideal for maintaining stable pressure in automated and process systems. Together with the matching R414002568 interface (control electronics), this kit ensures accurate modulation using 0–10 V or 4–20 mA control signals.

 Key Features

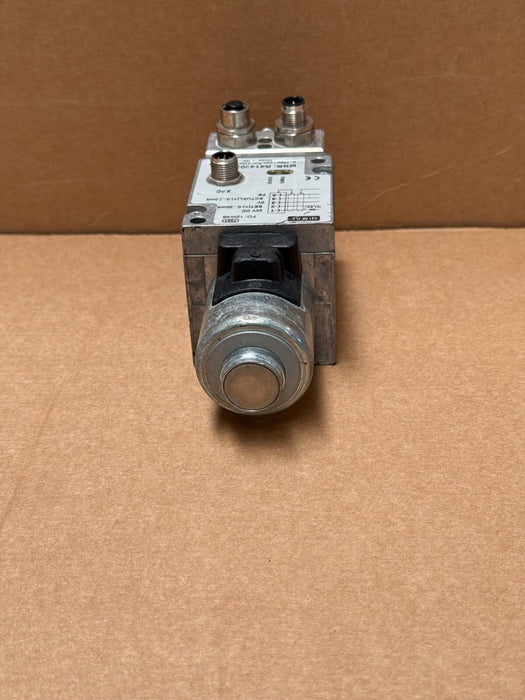

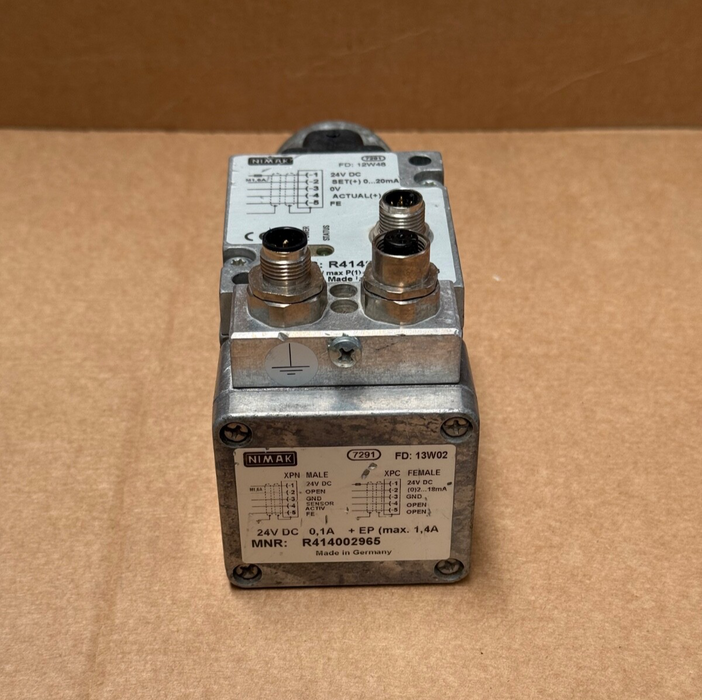

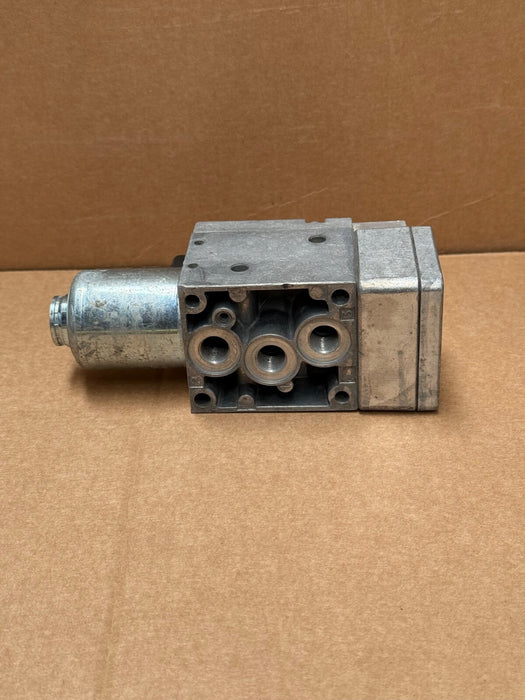

R414002965 – ED05 Proportional Pressure Valve

• Type: Direct-acting proportional pressure control valve

• Max Output Pressure: 11 bar

• Nominal Flow: 1,000 L/min

• Control Signal: 0–10 V or 4–20 mA

• Electrical Connection: 5-pin M12 connector

• Protection Rating: IP65

• Mounting Orientation: Flexible up to 90°

• Operating Temperature Range: 0 °C to +70 °C

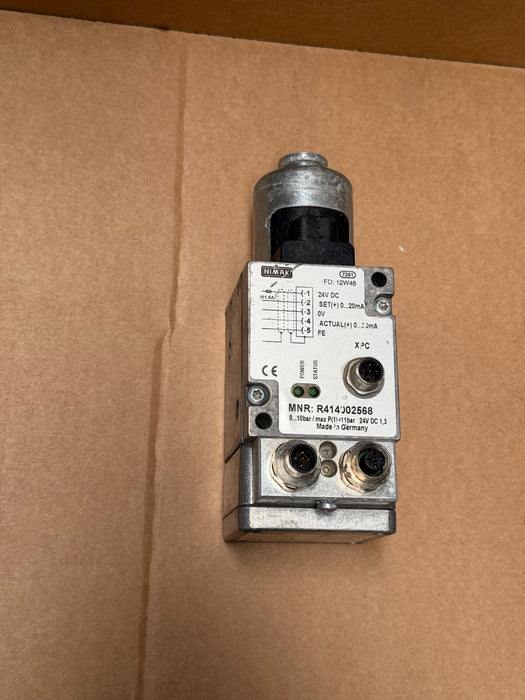

R414002568 – Control Interface (ED05 Electronics)

• Matches the ED05 series valve, offering drive electronics for accurate pressure regulation via voltage or current control inputs
