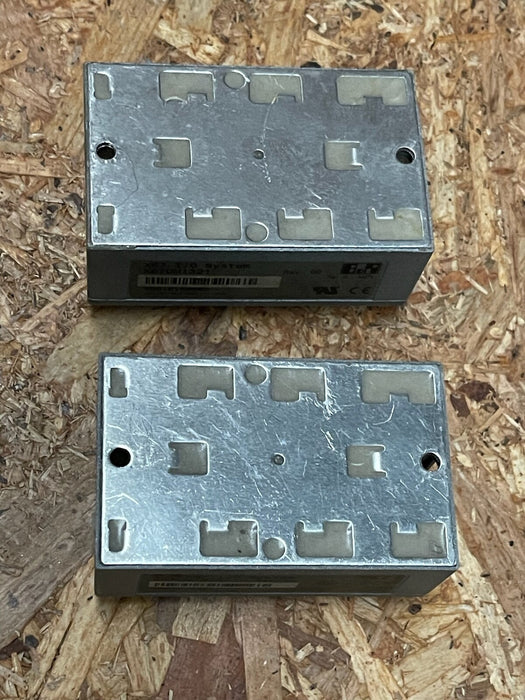

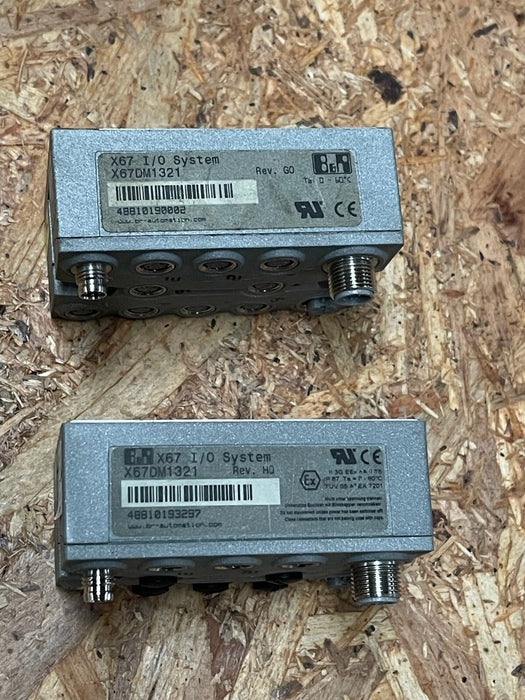

B&R – X67DM1321 – 16‑Channel Digital Mixed I/O Module (24 V DC)

Main Features

• Manufacturer: B&R (part of the ABB Group)

• Model/MPN: X67DM1321

• Device Type: Distributed I/O module for industrial automation (part of the X67 system)

• I/O Configuration:

  • 16 digital inputs (24 V DC, PNP)

  • 12 digital outputs (24 V DC); outputs are configurable and supported by short‑circuit protection

• Current Rating: Up to 0.5 A per output channel; 0.5 A total sensor/actuator supply

• Protection & Housing: Up to IP67-rated for dust and water resistance in rugged environments

• Diagnostic Features: Single-channel output diagnostics, input delay configuration, and counter capabilities

• Power & Voltage Range: 24 V DC nominal, with operating range from 18 to 30 V DC; internal I/O consumption ~2.5 W

• Operating Conditions:

  • Temperature: –25 °C to +60 °C

  • Input frequency up to 50 kHz

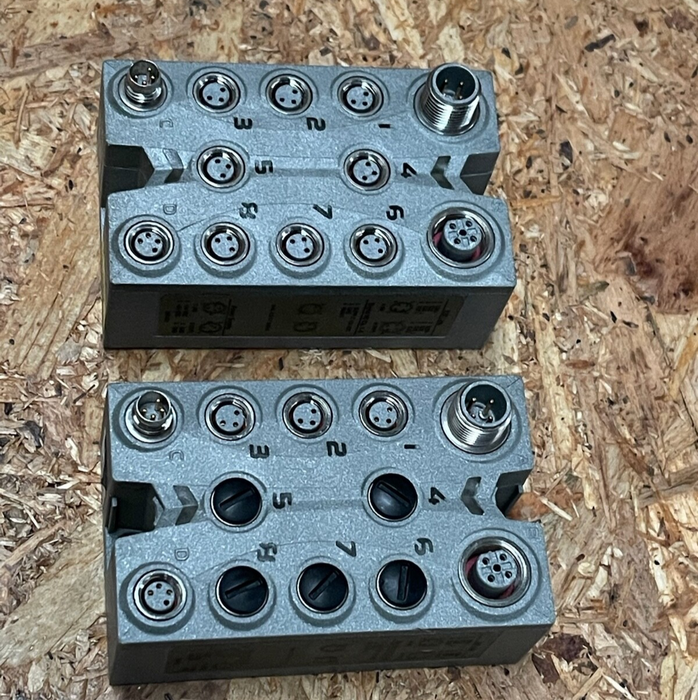

• Connectivity: Uses M12 and M8 connectors; B-keyed system-compatible

• Weight: Approx. 0.19 kg
