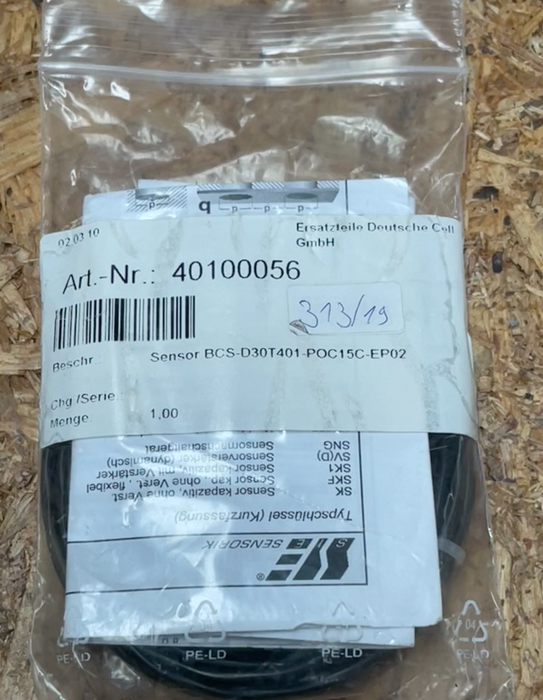

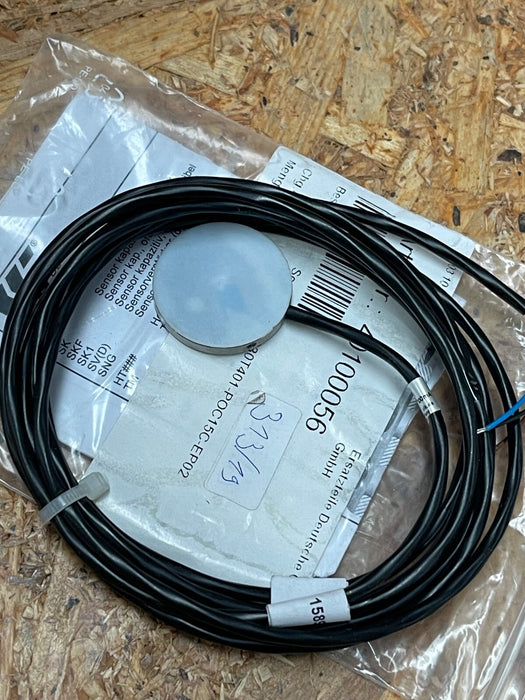

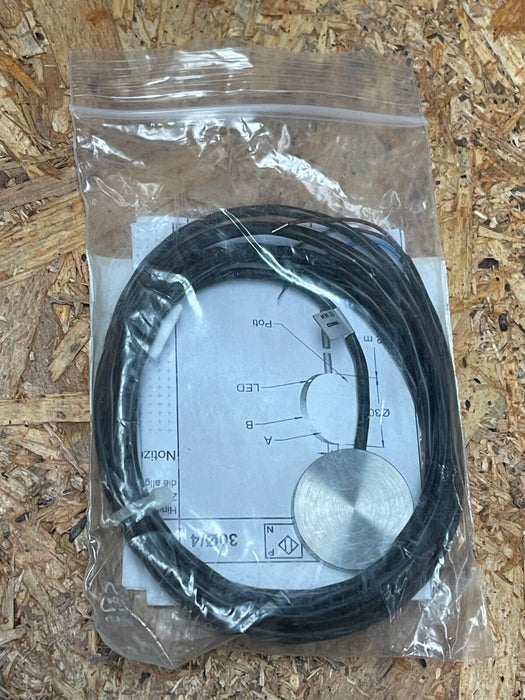

Balluff - BCS D30T401-POC15C-EP02 - Capacitive Sensor, Ø30 mm, PNP NC

The Balluff BCS D30T401-POC15C-EP02 is a robust capacitive proximity sensor designed for reliable object and level detection in industrial environments. Featuring a stainless steel housing and PTFE sensing face, it offers adjustable sensing distances and a PNP normally closed (NC) output. Its flush-mount design and IP67 rating ensure durability and ease of integration into various applications.

Key Features:

• Model: BCS D30T401-POC15C-EP02

• Brand: Balluff

• Part Number: BCS003C

• Sensing Range: Adjustable from 2 mm to 15 mm

• Output Type: PNP, Normally Closed (NC)

• Housing Material: Stainless Steel (1.4301)

• Sensing Face Material: PTFE

• Installation: Flush mounting

• Dimensions: Ø30 mm × 4 mm

• Connection: 2 m PUR cable, 3-wire

• Operating Voltage: 10–35 V DC

• Max Output Current: 300 mA

• Switching Frequency: 100 Hz

• Protection Rating: IP67

• Operating Temperature Range: -30 °C to +70 °C

• Certifications: CE, cULus

• Standards: IEC 60947-5-2

• Features: Short-circuit and polarity reversal protection

• Applications: Ideal for detecting solids, powders, and liquids, including level detection through non-metallic container walls.
