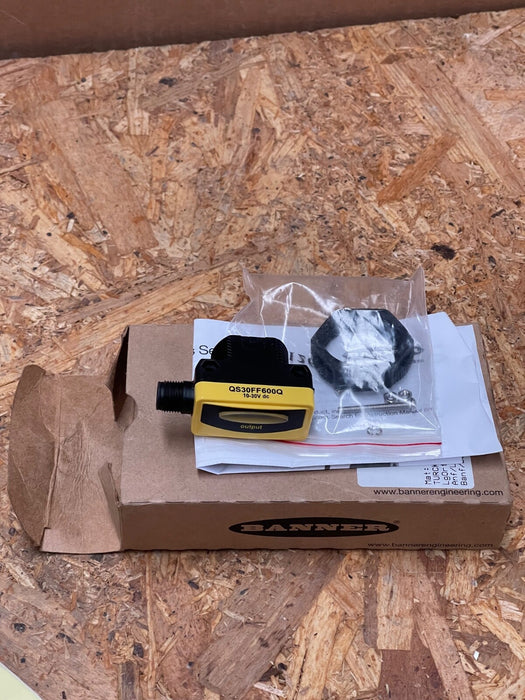

Banner Engineering - QS30FF600Q - Fixed-Field Photoelectric Sensor, 600 mm Range

The Banner Engineering QS30FF600Q is a high-performance fixed-field photoelectric sensor designed for precise object detection with background suppression. Featuring a 600 mm cutoff distance and bipolar outputs (PNP and NPN), it ensures reliable operation in various industrial automation applications. Its compact housing and visible red light source facilitate easy alignment and integration into tight spaces.

Key Features:

• Model: QS30FF600Q

• Brand: Banner Engineering

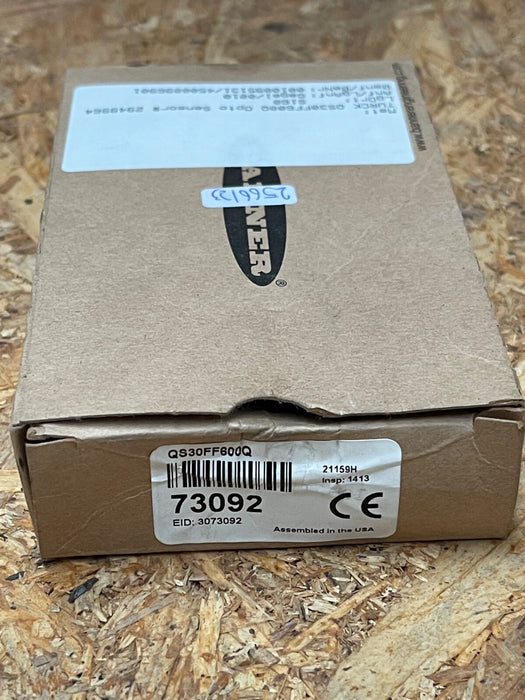

• Part Number: 73092

• Sensing Mode: Fixed-field with background suppression

• Sensing Range: 600 mm

• Light Source: Visible red LED (680 nm)

• Output Configuration: Bipolar: 1 NPN and 1 PNP

• Output Function: Selectable Light ON or Dark ON via gray wire

• Response Time: 2 ms

• Repeatability: 500 µs

• Supply Voltage: 10–30 V DC

• Current Consumption: < 40 mA (exclusive of load)

• Output Current: Max. 100 mA each output at 25 °C

• Off-State Leakage Current: NPN: < 50 µA; PNP: < 40 µA

• On-State Saturation Voltage: < 3 V at 100 mA

• Connection: 5-pin M12 integral quick-disconnect connector

• Housing Material: ABS/polycarbonate blend

• Lens Material: Acrylic

• Enclosure Rating: IP67, NEMA 6

• Operating Temperature Range: –20 °C to +70 °C

• Indicators: Green LED for power, Amber LED for output status

• Mounting Options: 30 mm threaded barrel or side-mount holes

• Dimensions (L × W × H): 44 mm × 16 mm × 33 mm

• Weight: Approximately 100 g

• Certifications: CE

• Applications: Ideal for detecting objects in packaging machines, conveyor systems, and other industrial automation setups where background suppression is essential.
