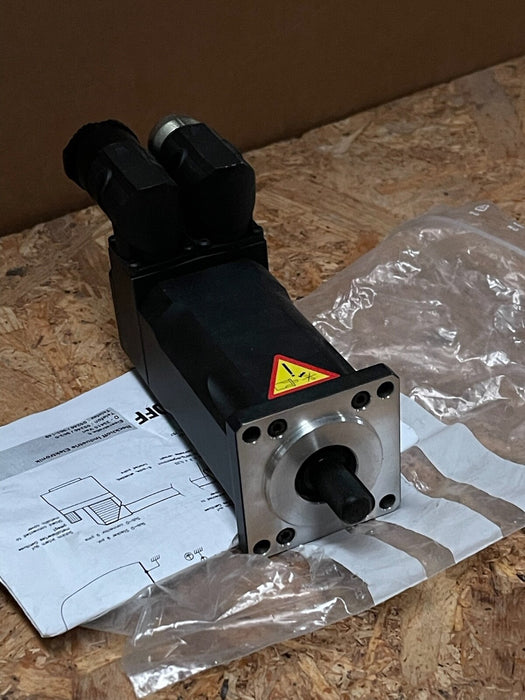

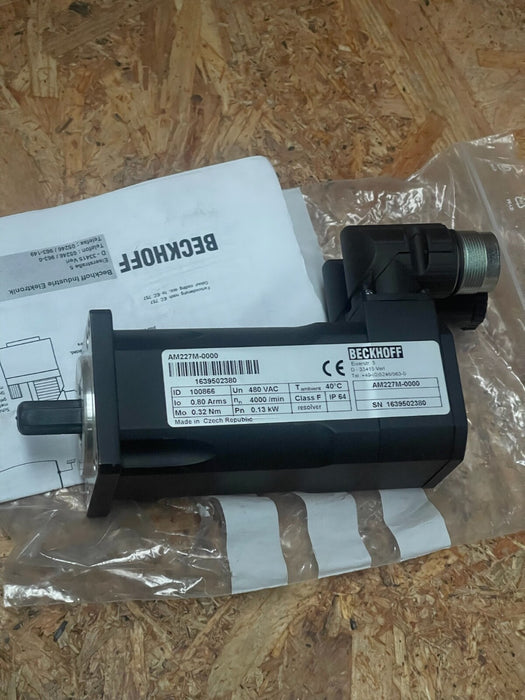

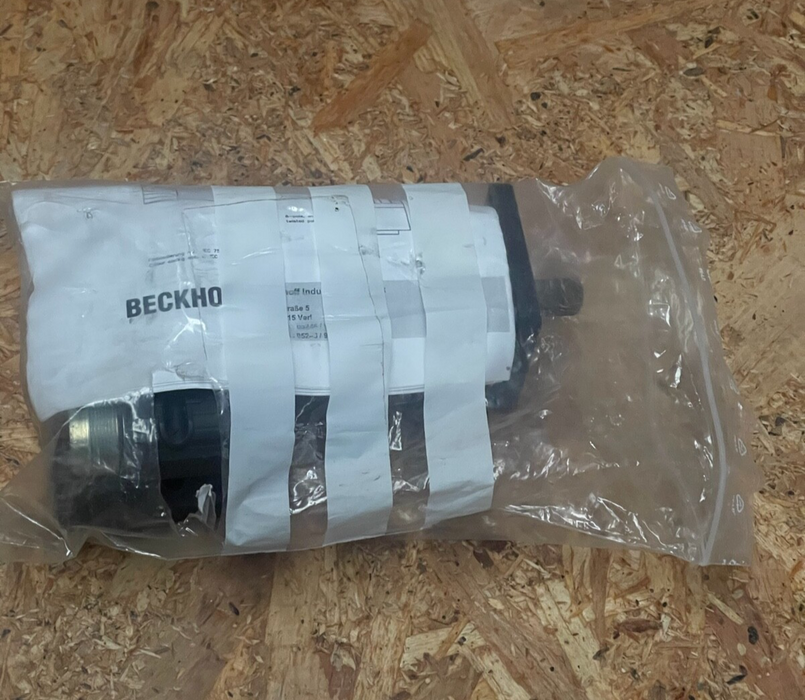

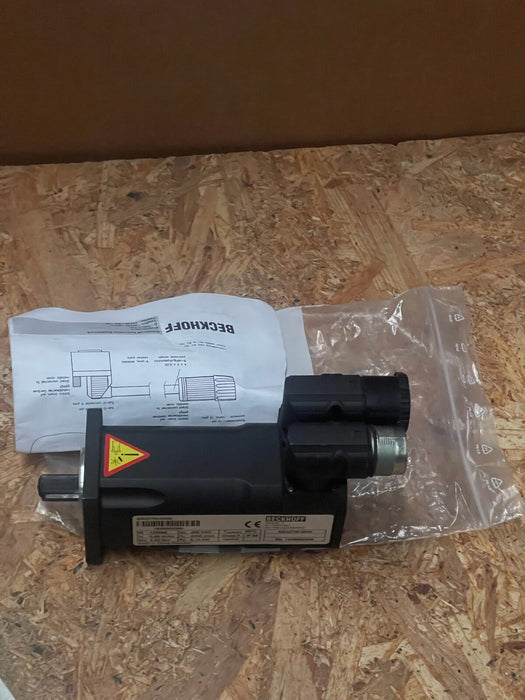

Beckhoff – AM227M‑0000 – Synchronous Servomotor, 0.13 kW, 0.3 Nm, 400/480 V AC

Main Features

• Manufacturer: Beckhoff Automation

• Model/MPN: AM227M‑0000

• Motor Type: Low-inertia synchronous servomotor, series AM227M

• Standstill Torque: 0.32 Nm

• Rated Torque & Power: 0.3 Nm continuous at 0.13 kW

• Standstill Current: 0.8 A RMS

• Peak Current: Typically up to ~3.7 A RMS

• Rated Speed: 4,000 rpm

• Supply Voltage: 400–480 V AC (three-phase)

• Feedback Options: Resolver (built-in); optional feedback extensions available

• Shaft & Flange: 58 mm flange, common industrial shaft size; various options like radial seals and holding brake available

• Cooling & Protection Class: Convection cooled, insulation class F; IP64 typical rating

• Applications: Ideal for high-dynamic precision in machine tools, robotics, and advanced automation systems
