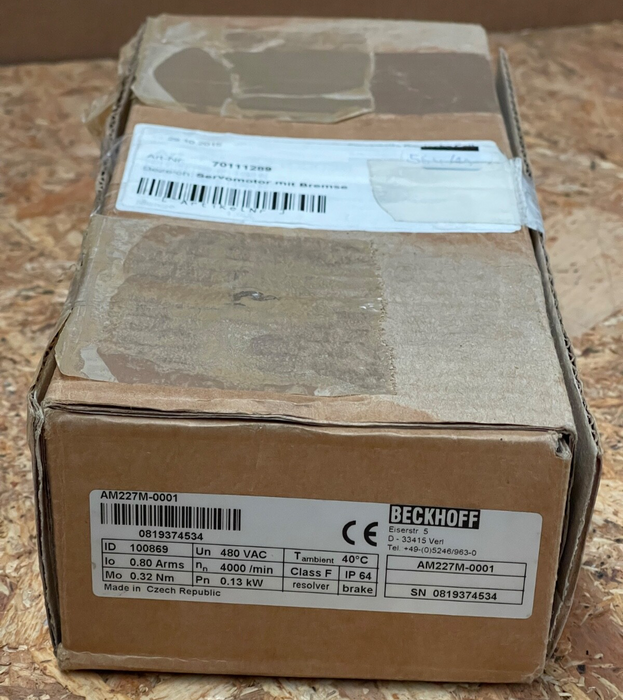

Beckhoff - AM227M-0001 - Synchronous Servomotor, 0.13 kW, 4000 RPM

The Beckhoff AM227M-0001 is a compact synchronous servomotor from the AM2000 series, designed for high-precision motion control applications. Featuring a standstill torque of 0.32 Nm and a nominal speed of 4000 RPM, this motor is suitable for tasks requiring dynamic performance and precise positioning. It integrates seamlessly with Beckhoff’s AX2000 series servo amplifiers, utilizing resolver feedback for accurate rotor position detection.

Key Features:

• Model: AM227M-0001

• Brand: Beckhoff

• Motor Type: Synchronous Servomotor

• Rated Power Output: 0.13 kW

• Standstill Torque: 0.32 Nm

• Rated Torque: 0.3 Nm

• Rated Speed: 4000 RPM

• Standstill Current: 0.8 A

• Rated Current: 0.75 A

• Maximum Current: 3.5 A

• Rotor Moment of Inertia: 0.15 kg·cm²

• Weight: 1.4 kg

• Voltage Supply: 400/460 V DC

• Feedback Device: Resolver

• Cooling Method: Natural Convection

• Protection Rating: IP64

• Operating Mode: Continuous Duty (S1)

• Temperature Range: -20°C to +40°C

• Optional Holding Brake:

  • Holding Torque: 1 Nm

  • Power Consumption: 8 W

  • Operating Voltage: 24 V DC

  • Release Delay: 15–20 ms

  • Engagement Delay: 5–10 ms

  • Weight: 0.3 kg
