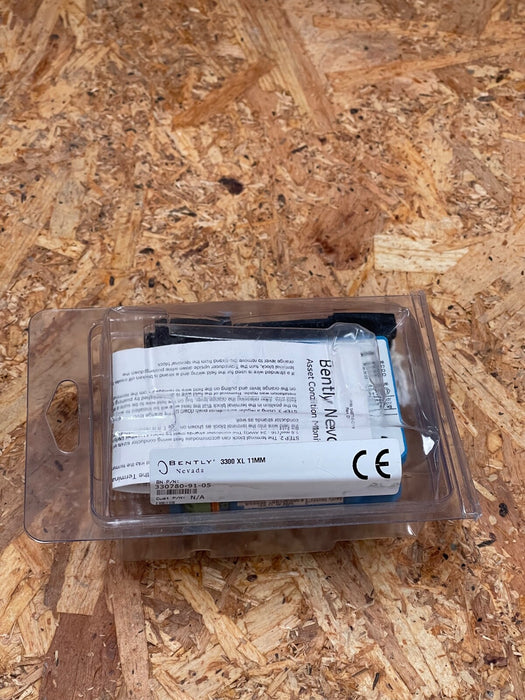

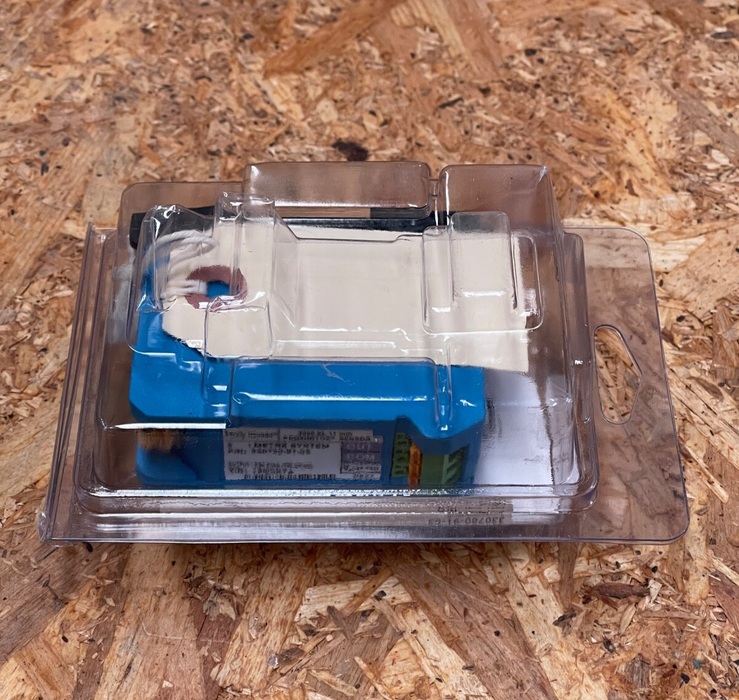

Bently Nevada - 330780-91-05 - 3300 XL 11 mm Proximitor Sensor, 9.0 m System

The Bently Nevada 330780-91-05 is a 3300 XL 11 mm Proximitor Sensor designed for precise non-contact vibration and displacement measurements in industrial machinery. This sensor is part of the 3300 XL series, offering an extended linear range and improved performance over previous models.

Key Features:

• Model: 330780-91-05

• Brand: Bently Nevada

• Function: Proximitor Sensor for non-contact vibration and displacement measurements

• System Length: 9.0 m (29.5 ft)

• Mounting Option: DIN rail mount

• Output Sensitivity: 3.94 V/mm (100 mV/mil)

• Linear Range: 0.5 to 4.5 mm (20 to 180 mils)

• Frequency Response: 0 to 8 kHz

• Operating Temperature Range: -35°C to +85°C (-31°F to +185°F)

• Storage Temperature Range: -51°C to +100°C (-60°F to +212°F)

• Power Requirements: -17.5 Vdc to -26 Vdc, 12 mA maximum consumption

• Compatibility: Accepts one non-contacting 3300 XL 11 mm Proximity Probe and Extension Cable

• Construction: A308 aluminum housing with gold-plated brass or beryllium copper connectors

• Applications: Ideal for axial (thrust) position measurements, ramp differential expansion measurements on steam turbines, rod position or rod drop measurements on reciprocating compressors, tachometer and zero speed measurements, and phase reference (Keyphasor) signals.
