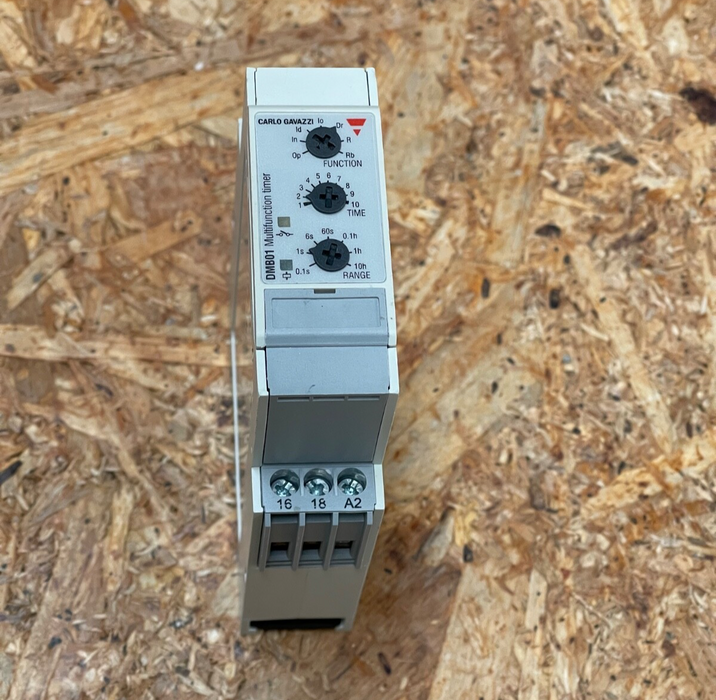

Carlo Gavazzi – DMB01CM24 – Multi‑Function DIN‑Rail Timer Relay 0.1 s to 100 h

The Carlo Gavazzi DMB01CM24 is a versatile, knob-programmable multi-function timing relay designed for DIN-rail mounting. Ideal for timing control in automation, industrial machinery, and process equipment, it supports seven selectable timing functions with a broad range from 0.1 seconds up to 100 hours. Its rugged SPDT relay output provides reliable switching up to 8 A at 250 V AC or 5 A at 24 V DC.

Key Features:

• Model: DMB01CM24

• Brand: Carlo Gavazzi

• Time Range: 0.1 s to 100 h, knob selecting

• Functions: 7 modes – Delay-on, Interval, Interval-on‑trigger, Double Interval, Delay-off, Symmetrical recyclers ON/OFF first

• Supply Voltage: 24–240 V AC/DC

• Output Relay: 8 A SPDT (up to 250 V AC)

• Repeatability: ≤ 0.2%

• LEDs: Indicate power and relay status

• Mounting: 22.5 mm DIN-rail, IP20 protection

• Ambient Temperature: –20 °C to +60 °C

• Dimensions: 22.5 × 80 × 99.5 mm
