CDC TV49 – Multifunction DIN-Rail Timer (24–230 V AC/DC)

The CDC TV49 is a compact, multifunctional DIN-rail mounted timer suitable for industrial control applications. It operates over a wide voltage range (24–230 V AC/DC) and provides selectable timing functions, timing ranges, and start modes via user-accessible dials. Ideal for sequencing, delay, and pulse control tasks in machinery and process automation.

Key Features:

• Model: TV49

• Brand: CDC

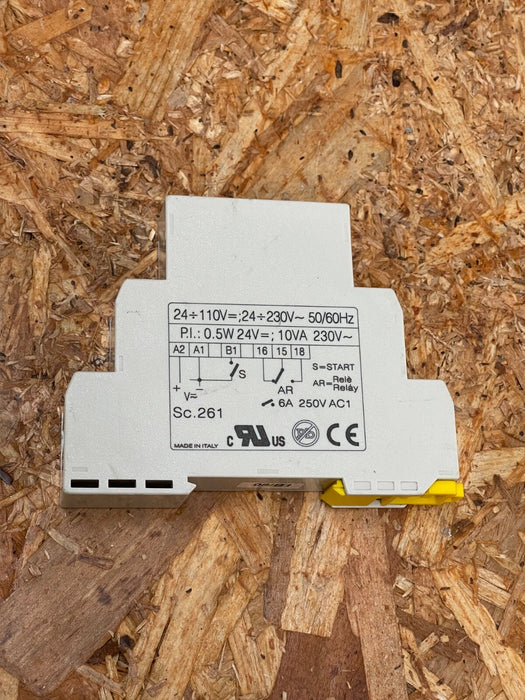

• Power Supply: 24–110 V AC/DC or 24–230 V AC/DC (12 VA @ 230 VAC; 0.5 W @ 24 VDC)

• Timing Functions: Multiple selectable functions (approx. 10 modes) with manual or mains-triggered start

• Time Ranges: Configurable via front-panel dial across seconds to hours scale

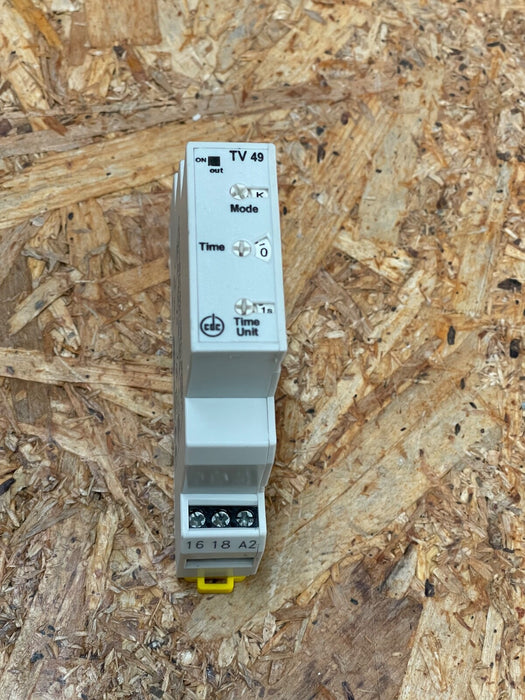

• Selector Dials:

  • Mode selector (K): Choose function (e.g., pulse, on-delay, off-delay)

  • Time range dial: Set overall timing scale (e.g. sec, min, hours)



• Panel Indicators: ON/OUT LED to monitor status

• Electrical Life: 100,000 operations

• Timing Accuracy: Full-scale error ±1%

• Reset Time: Minimum 25 ms between supply cycles

• Mounting: Standard 35 mm DIN-rail

• Dimensions: Slim-line housing (approx. 1 module width)
