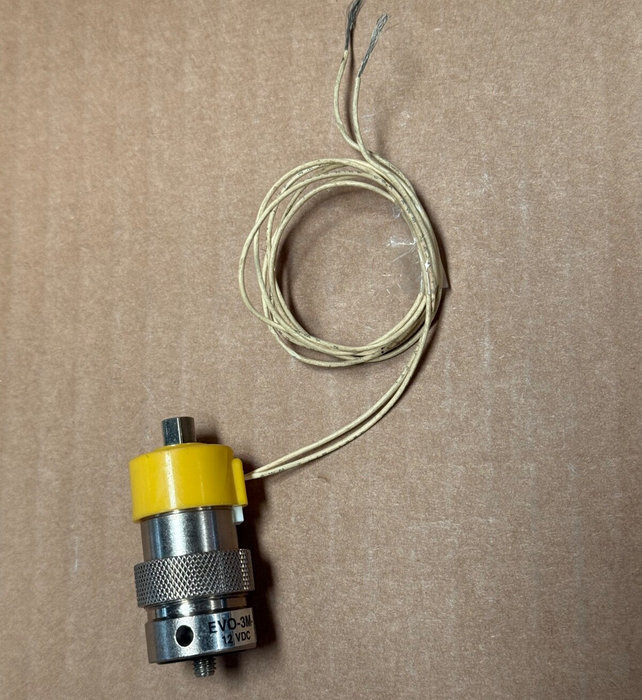

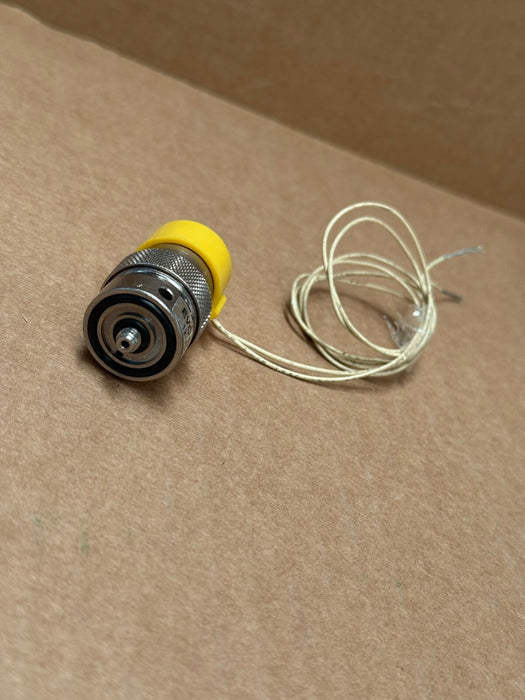

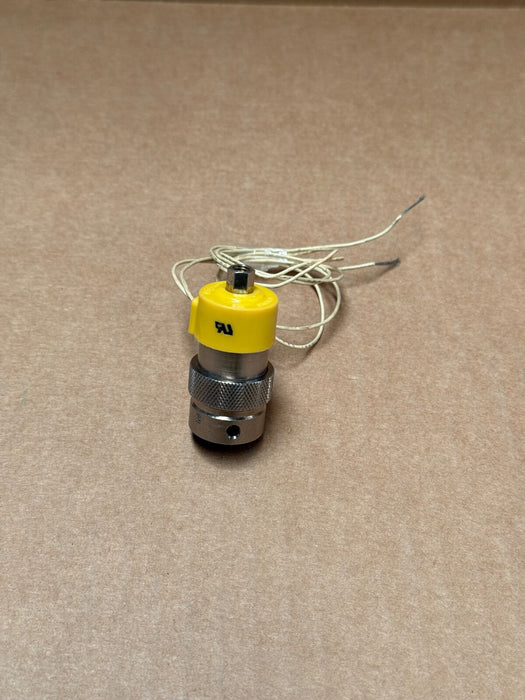

Clippard – EVO‑3M‑V – 3‑Way Fully‑Ported Solenoid Valve

The Clippard EVO‑3M‑V is a miniature, 3‑way fully-portable solenoid valve designed for manifold mounting in compact pneumatic systems. With fast actuation (<10 ms) and low power consumption (<0.7 W), it’s ideal for industrial automation, miniature pneumatic control, or equipment integration requiring silent, efficient flow control.

 Key Features

• Model: EVO‑3M‑V (V = voltage-specific version)

• Function: 3‑way, fully‑ported valve; supports normally‑open, normally‑closed, selector, or diverter functions

• Mounting: Designed for Clippard manifold systems or inline configurations with radial wire leads

• Operating Pressure: Up to 105 psig (7 bar), with max flow ~17 l/min at 100 psig

• Response Time: Fast actuation, 5–10 ms nominal

• Voltage & Power: V-specific models available in 6 VDC, 12 VDC, or 24 VDC; power ~0.67 W; coil resistance varies per voltage

• Materials: Typical body in nickel-plated brass or stainless steel; seals in nitrile (NBR) or FKM

• Lifecycle: Over 1 billion cycles

• Connection: 18″ radial wire leads; optional spade or pin terminal versions available

• Weight: Approximately 0.17 lb (77 g)

• Applications: Ideal for miniature pneumatics, laboratory instruments, OEM equipment, vending, and medical devices
