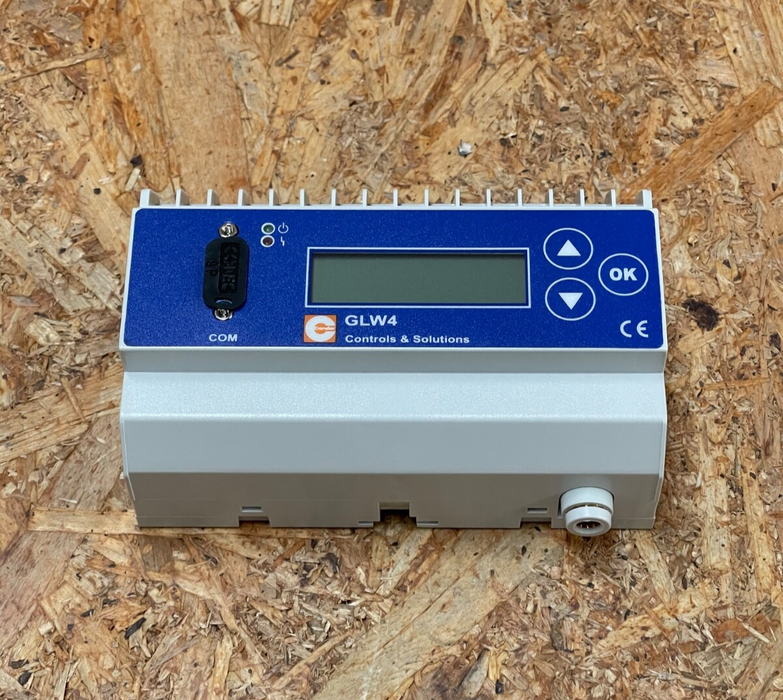

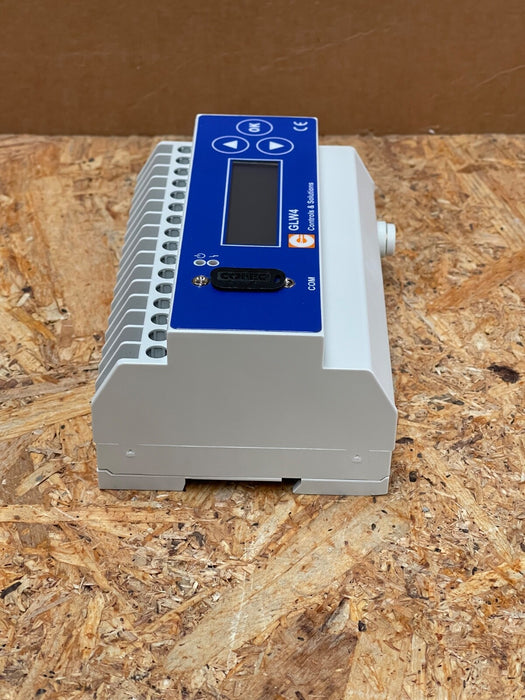

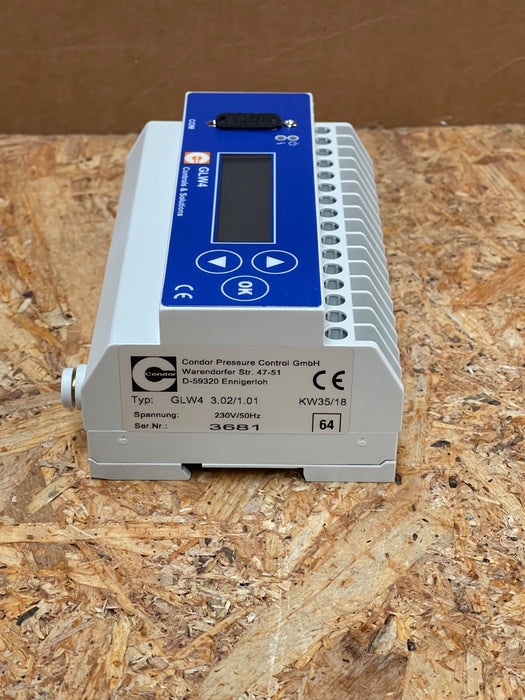

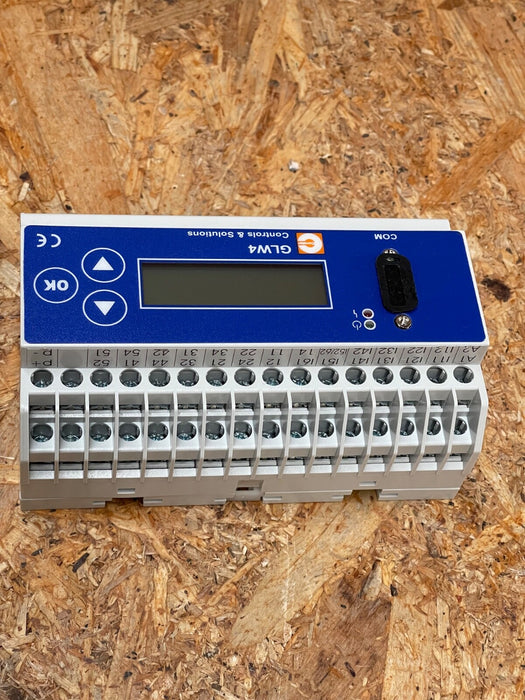

Condor – GLW4 3.02/1.01 – Electronic Base‑Load Changeover Controller

The Condor GLW4 3.02/1.01 is an industrial-grade electronic base‑load changeover controller engineered to manage up to four compressors in compressed air systems. It evaluates system pressure and automatically sequences compressor operation based on time and pressure thresholds. Suitable for efficient and even-load distribution among compressors in manufacturing, refrigeration, and HVAC applications.

Key Features:

• Model / MPN: GLW4 3.02/1.01 (Condor Controls & Solutions)

• Function: Base-load change circuit for up to 4 compressors

• Automatic Control: Switches compressors based on mains pressure and timer settings

• Integrated Timer: Programmable delay for load sequencing to ensure even usage

• Mounting: DIN‑rail (35 mm) compatible

• Hardware Inputs:

• Base-load and load-change logic

• Remote release input for system shutdown

• Alarm output via potential-free contact

  • Pressure Range: 0–16 bar with built-in pressure transducer

  • Profile Configuration: Up to 6 timer‑based compressor profiles for tailored staging

  • Programming Security: Password-protected programming to prevent unauthorized adjustment
