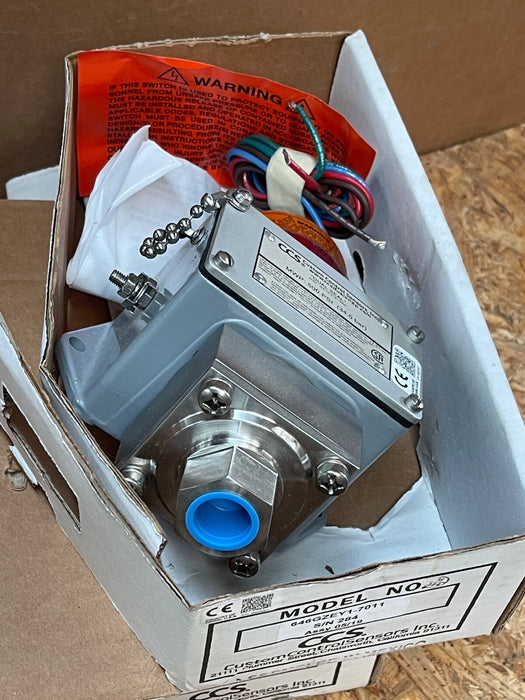

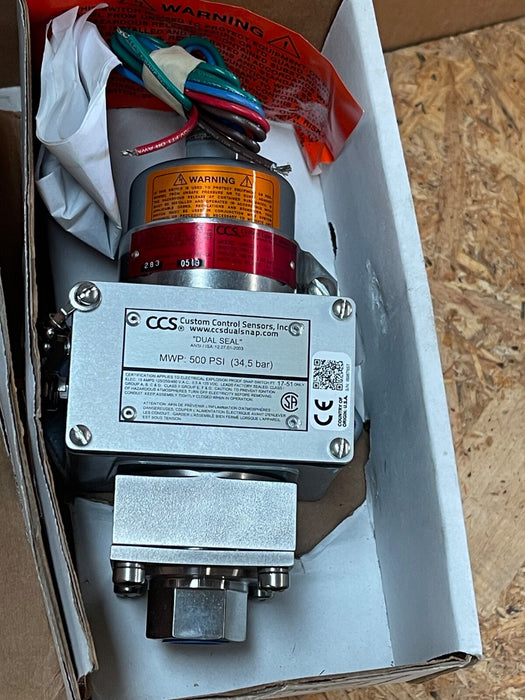

Custom Control Sensors - 646GZEY1-7011 - Explosion-Proof DualSnap Pressure Switch

The Custom Control Sensors (CCS) 646GZE1-7011 is a rugged, explosion-proof pressure switch designed for hazardous environments. Featuring Dual-Snap® disc spring technology, it offers precise and repeatable switching with high resistance to vibration and shock. Its 316 stainless steel construction ensures durability and corrosion resistance, making it suitable for demanding industrial applications.

Key Features:

• Model:

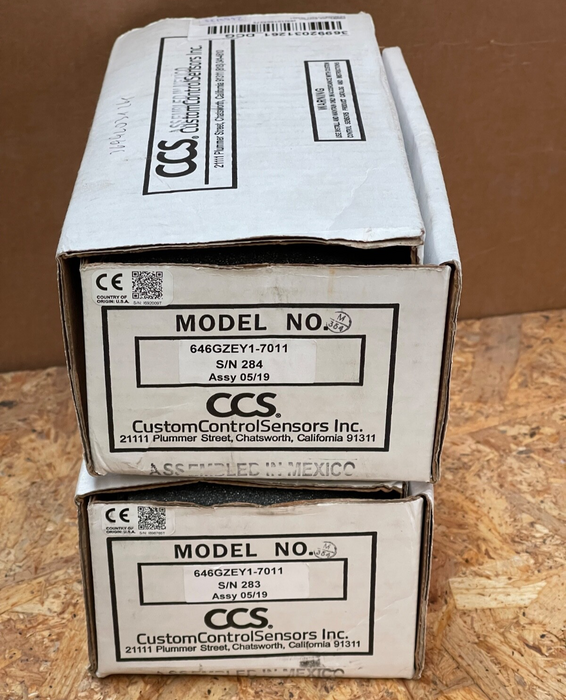

  646GZEY1-7011

• Brand: Custom Control Sensors (CCS)

• Switch Type: Adjustable gauge pressure switch with Dual-Snap® disc spring mechanism

• Set Point Range: Increasing: 0.4 to 16 psi (0.03 to 1.1 bar); Decreasing: 0.4 to 15.2 psi (0.03 to 1.05 bar)

• Deadband (Approximate): 0.8 psi (0.06 bar)

• Maximum System Pressure: 500 psi (35 bar)

• Proof Pressure: 750 psi (52 bar)

• Wetted Materials: 316 stainless steel pressure port and diaphragm; Viton O-ring

• Process Connection: 1/2” FNPT

• Electrical Rating: 15 A at 125/250/480 V AC

• Contact Configuration: SPDT (Single Pole Double Throw)

• Enclosure Rating: Explosion-proof, Class I, Div 1, Groups A, B, C, D; Class II, Groups E, F, G

• Certifications: UL, CSA, CE, CRN, Dual Seal (ANSI/ISA 12.27.01-2003)

• Applications: Ideal for hazardous area pressure monitoring in oil & gas, chemical processing, and other industrial sectors requiring robust and precise pressure control.
